Integrated Slip Ring Electrical + Signal LPPL000-02A-0516-01U2-01E2-01HD

share
copy Link
Facebook
X
LinkedIn
Number of Circuits 5*16+1Groups*USB2.0 signal+1Groups Profinet100Mbps+1Groups*HDMI(1080p))*
Current 36CKT
Wire Length 0~300rpm
Voltage Precious Metal(P) Gold To Gold(S))
Connection Speed 100M(Integrated USB2.0+HDMI (4k))
Consult immediately
DetailInstallationReview(0)

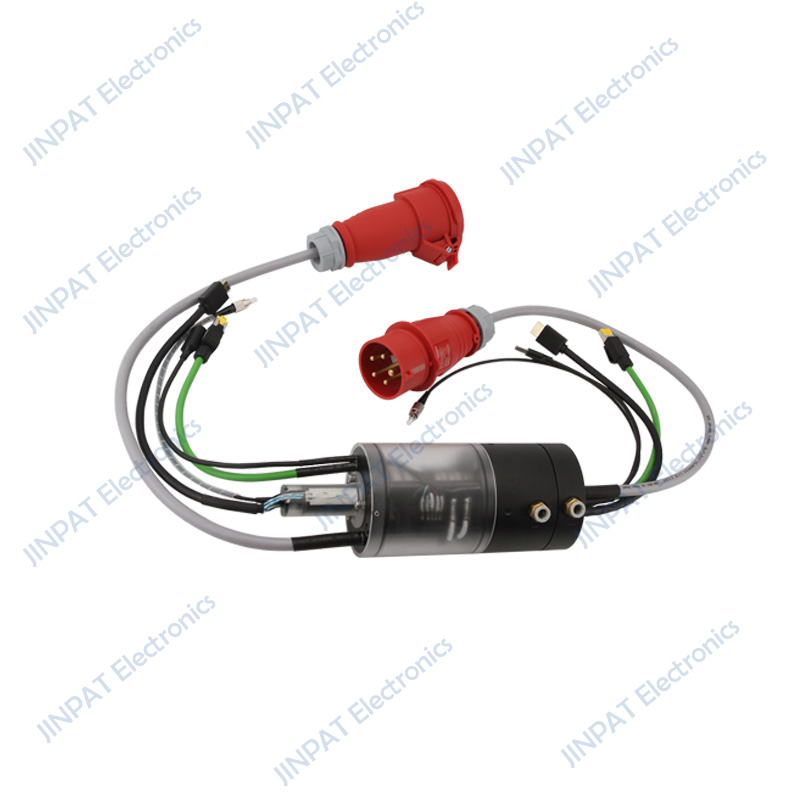

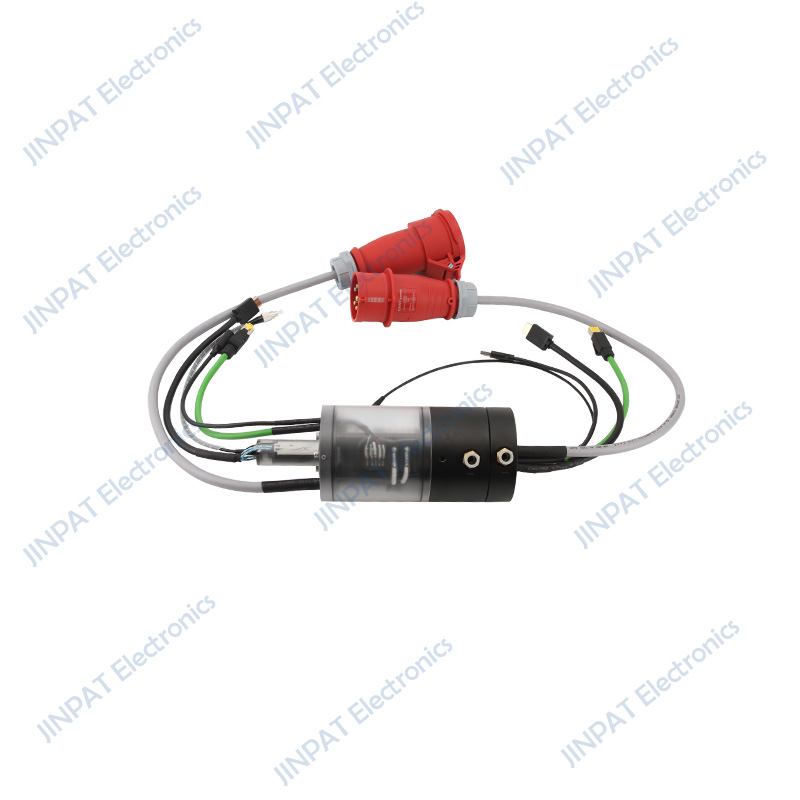

This slip ring is mainly composed of gas-liquid, conductive and optical fiber signals. It is a multi-functional slip ring integrated by different functional modules. The highly integrated structure enables it to save space to the greatest extent and is suitable for various power and signal requirements. Channel and gas-liquid channel equipment. The gas-liquid part can not only transmit gas, but also water, oil and other media. The number and size of channels can also be adjusted according to different needs; the conductive part consists of power ring (with industrial connector), USB2.0 signal ring, profinet industrial Composed of Ethernet signal ring and HDMI high-definition video signal ring, it can realize stable transmission of current, industrial communication data, and high-definition video information at the same time. The number, power, and signal type of the loop can be changed according to requirements; Customer's rate, modulus, wavelength, channel, etc. can be customized.


Optical Fiber Parameter
Channel number
1Insertion Loss<2dB
Fiber TypesSM(9/125um)Insertion Loss-WOW<0.5dB
Working WavelengthSM:1310/1550nmReturn Loss>40dB
Light Power23dBmJacket Types3mm(armor)
Connector TypesRotor:FC/PC   Stator:FC/PC

Rotary Unions & Joints Spec.

Passages1~2Joint threadG1/4''
Trachea Sizeφ8Orifice Flowφ6
Medium TypeAirMax.Operating Pressure1MPa





Electronic & Electri
Mechanical
Tatal36 CKTWorking Speed0~300rpm

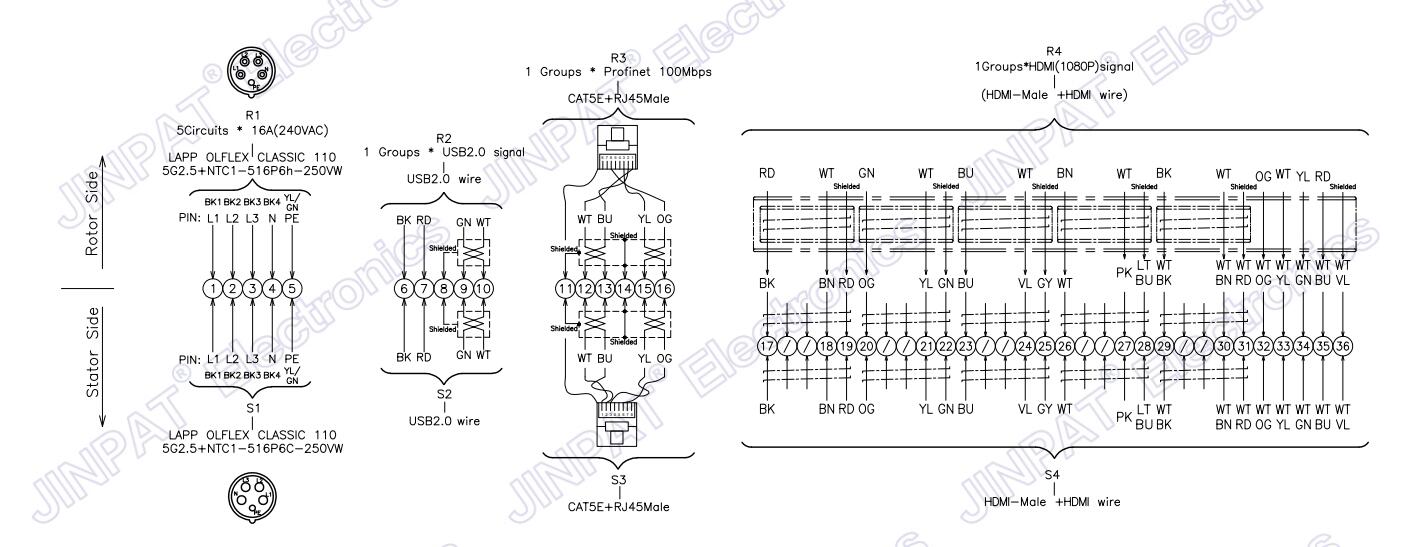

Detail5*16A+1Groups*USB2.0   Signal+1Groups Profinet 100Mbps+1GROUPS*hdmi(1080P)Inner Diameter/
Rating Voltage12V/240V   AC/DCContact Material

Precious Metal(P)

Gold To Gold(S)

Dielectric Strength

500VAC@50Hz(P)

100VAC@50Hz(S)

Housing MaterialAluminium Alloy/Project Plastic(PMMA)
Insulation Resistance

≥100MΩ500VDC（P）

≥10MΩ@100VDC（S）

Lead Wire Length
Environment
Remarks
Working Temperature

-20°C—+60°C

Application/
Working Humidity≤60％RHOther/
IPIP40Note:“P”stands for power,"S"stands for signal.
