LPK025-0610 Pancake Slip Ring - Industrial Automation

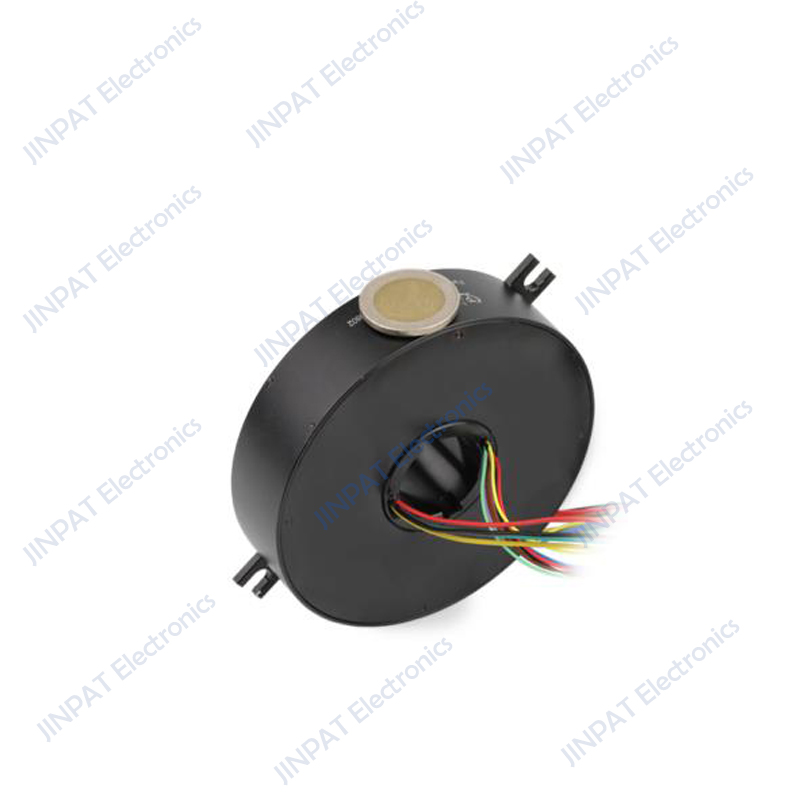

JINPAT produces pancake slip rings, which are divided into two types: one-piece slip rings (LPK series) and split slip rings (LPKS series); LPK pancake slip rings are specially designed to provide solutions for equipment with limited axial space, and their ring paths are arranged in concentric circles at the same level, which greatly saves space in terms of height. The pancake slip ring has the advantages of low torque, low friction, low electrical noise and long life. The pancake slip ring is mainly used to transmit precise signals together with power, and can also be combined with fluid medium transmission. In addition to the open design, the flat slip rings have a protection class of at least IP 40, or IP 51 or higher (if required)
Features
Capable of transmitting 6 channels of 10A current
Dual precision rolling bearing support, low torque
High product precision, excellent transmission performance, stable and reliable operation
Advantages
The thickness dimension is only 25mm, specially designed for the axial space is relatively compact, maintenance-free
Low torque, precision double bearing support, stable operation
Use of imported brush shrapnel, can achieve higher life
| Electrical & Electronics | Mechanical | Enviromental | |||
Number of circuits | 6CKT | Rotating speed | 0~100rpm or higher | Temperature | -40°C~+80°C |
| Current | 10A/signal(optional) | Contact material | Precious metal | Humidity | ≤60%RH |
| Voltage | 240VAC/DC | Housing material | Aluminum alloy | Protection Grade | IP51 |
Dielectric strength | 500VAC@50Hz | Torque | 0.3N.m(for reference) | Others | |
Insulation resistance | ≥500MΩ@500VDC | Wire type | Optional | Life span | Can be customized |
| Electrical noise | ≤30mΩ(at 50rpm) | Wire length | Stator side：300mm Rotor side：300mm | ||
