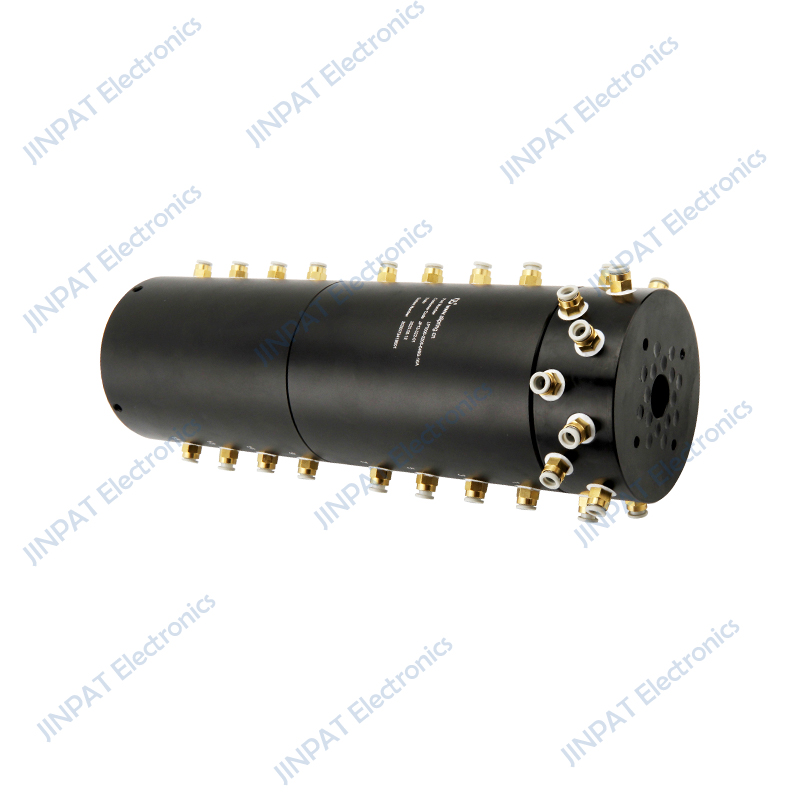

Electrical +Gas Slip Ring LPT000-48S-16A（JP13-322-01）
share
DetailInstallationReview(0)
Electrical gas slip rings, also known as pneumatic-electric slip rings or hybrid slip rings, are specialized devices designed to transmit both electrical signals and pneumatic (gas) signals between rotating and stationary components. Their unique characteristics make them suitable for applications that require the combination of electrical and pneumatic connections, ensuring efficient and reliable operation in various industries.
| Electronic & Electric | Mechanical | ||
| Tatal | 80 CKT | Working Speed | 0~10rpm |
| Detail | 32×5 48×Signal | Inner Diameter | / |
| Rating Voltage | 380VDC | Contact Material | Precious Metal |
| Dielectric Strength | 1000VAC@50Hz（P） 300VAC@50Hz（S） | Housing Material | Aluminium Alloy(Black) |
| Insulation Resistance | ≥500MΩ@500VDC（P） ≥100MΩ@300VDC（S） | Lead Wire Length | Stator:300mm Rotor:300mm |
| Environment | Remarks | ||
| Working Temperature | -20°C—+60°C | Electrical Noise | / |
| Working Humidity | ≤60％RH | Other | / |
| IP | IP50 | Note:“P”stands for power,"S"stands for signal. | |
| Techenical Parameters of Rotary Joint | |||
| Number of paths | 16 Channe/s | Perssure | ＜Mpa |
| Connecting aperture | G1/8(diameter 6mm) | Medium Type | Compressed air |
