Number of Circuits 2 circuits*1.5A/1 circuit*DC/ 2 circuits*4A1 circuit*HDMI/ 1 circuit*USB2.0
Current 4A
Insulation Resistance ≥50MΩ@200V
Wire Length Rotor: 250±5mm Stator: 250±5mm
Voltage 48V
Consult immediately
Parameters
Number of Circuits
2 circuits*1.5A/1 circuit*DC/ 2 circuits*4A1 circuit*HDMI/ 1 circuit*USB2.0
Current
4A
Insulation Resistance
≥50MΩ@200V
Wire Length
Rotor: 250±5mm Stator: 250±5mm
Voltage
48V
I know
DetailReview(0)Installation

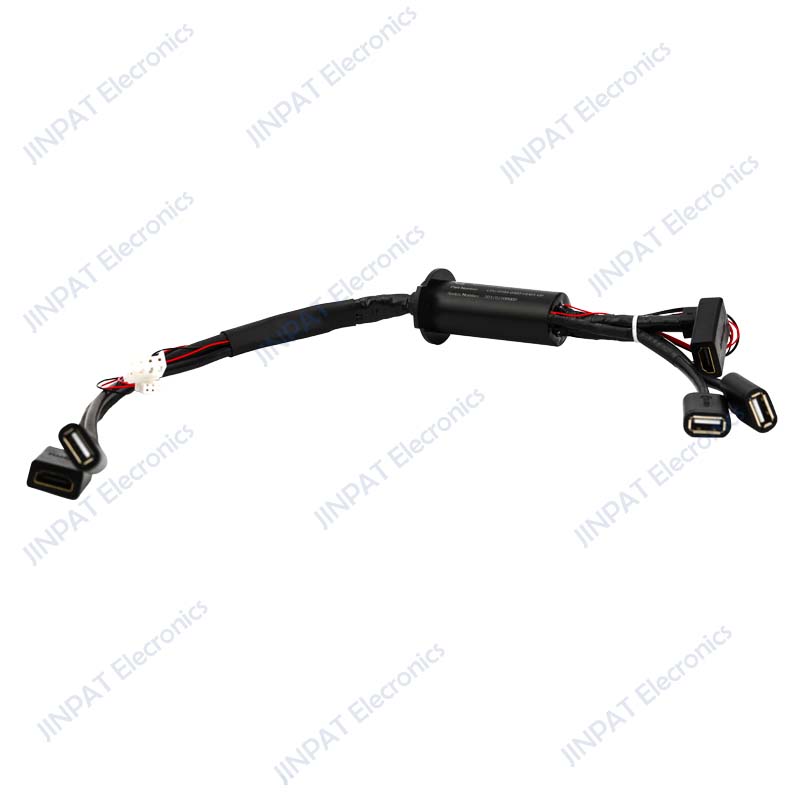

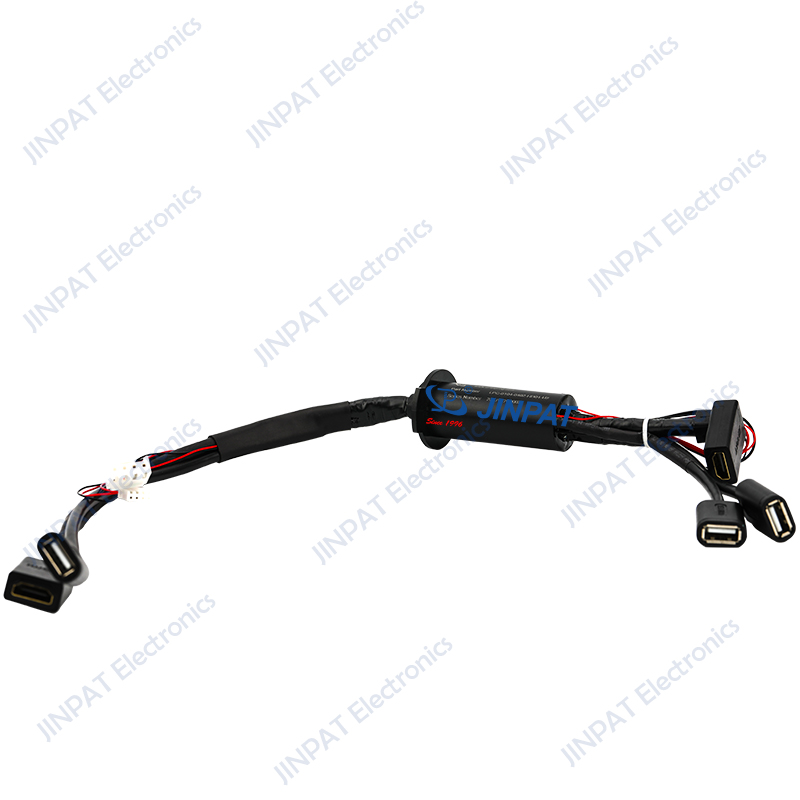

LPC-0104-0402-HD01-U2 - VR equipment; Treadmills; Game seats



Features

1、Transmission of HDMI signal, USB2.0 signal, electric signal.

2、 Double slip rings integration mechanism.



Advantages

1、Integrate a variety of signals, of which HDMI signal transmission rate reaches   2K@90HZ (ultra clear video), leading domestically

2、 Independent research and development of HDMI elbow socket




Electrical & ElectronicsMechanicalEnviromental
Number of Circuits

2 circuits*1.5A/1 circuit*DC/

2 circuits*4A1 circuit*HDMI/

1 circuit*USB2.0

Rotating

Speed

0~100 rpmTemperature-20℃~+60℃
Current4A

Contact

Material

Gold-to-goldHumidity≤60%RH
Voltage48V

Housing

Material

Engineering plasticProtection GradeIP40

Dielectric

Strength

≥200V@50HzWire Type

AWG22#/AWG26#

AWG28#/

AWG30#/USB2.0

/HDMI/DC

Others

Insulation

Resistance

≥50MΩ@200VLife Span/
Electrical Noise≤15mΩ(Signal Ring)Wire Length

Rotor: 250±5mm

Stator: 250±5mm




Outline drawings


VR Slipringss.png
