Slip Ring of Medicine Filling Machine

share
copy Link
Facebook
X
LinkedIn
Number of Circuits 12CKT
Current 2×40A
Contact Material Precious Metal
Working Speed 0~20 rpm
IP IP50
Consult immediately
DetailInstallationReview(0)

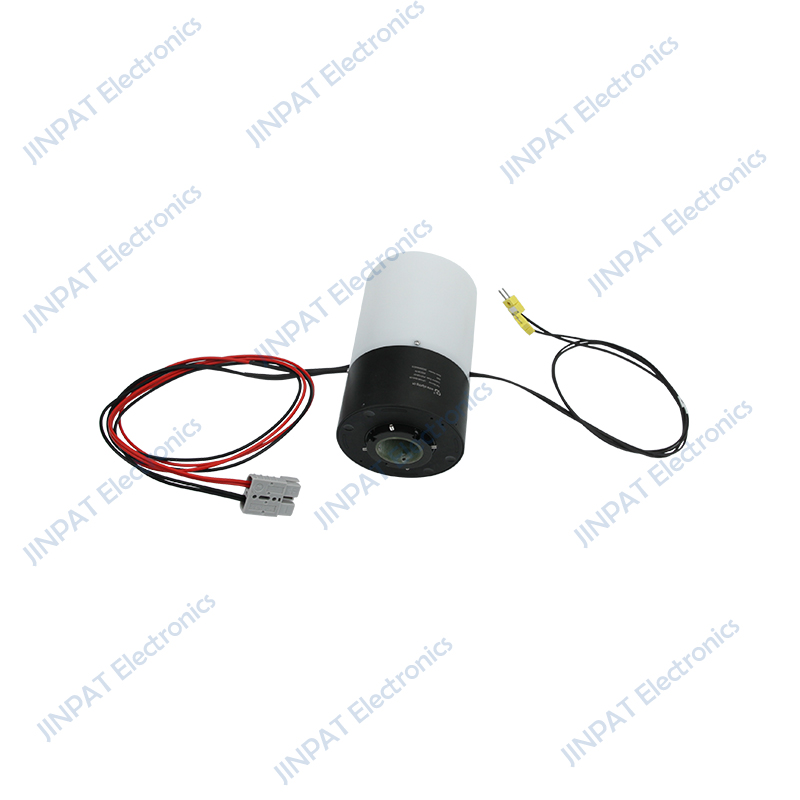

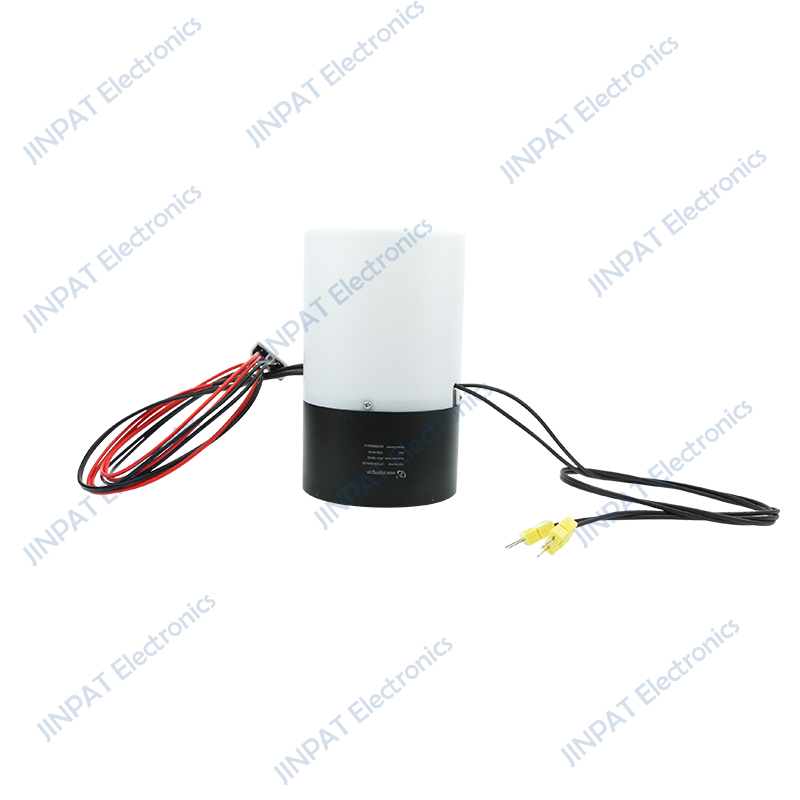

LPT038-0240-02S Slip Ring of Medicine Filling Machine



Electronic & Electri
Mechanical
Tatal12 CKTWorking Speed0~20rpm
Detail2Circuits×40A, 2Group×40AInner Diameter∅38.1mm
Rating Voltage380VAC / 240VACContact MaterialPrecious Metal
Dielectric Strength1000VAC@50Hz(P), 300VAC@50Hz(S)Housing MaterialAluminium Alloy
Insulation Resistance

≥500MΩ@500VDC(P)

     ≥100MΩ@300VDC（S）

Lead Wire LengthStator:1000mm   Rotor:140mm
Environment
Remarks
Working Temperature

-20°C—+180°C

Application/
Working Humidity≤60％RHOther/
IPIP50/
