Capsule Slip Rings

Capsule slip ring is a hot sale product of all the slip rings,The outer diameter is 22~54mm, and the number of channels can reach 125 channels.These miniature slip ring adopt gold-to-gold contacts and therefore guarantee super low friction while rotating. On the top of that, JINPAT applies military-class surface handling technique on the capsule slip rings. So our slip ring can rotate in a smooth and quiet way and meantime able to attain a longer service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc. Such flexibility makes our Capsule Slip Rings attractive products to clients around the world.

Features:

◎Military standard surface processing /Precise/Gold-to-gold contact/Low resistance/Long service life

Options:

◎Rotating speed/Life span/Protection grade/Number of circuits/Current capacity/Size/Housing material/Mass production

LPM Standard Miniature Capsule Slip Rings

LPM Miniature Capsule Slip Ring is able to integrate 30 or more circuits, with optional outer diameter from 12.5mm~16mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compacter and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. Representative models: LPM-04A/06A/12F/18C/24A/30A,etc. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.

Features:

◎Compact size/Gold-to-gold contact/Low resistance/Long service life/Integrate multifarious signals

Options:

◎Rotating speed/Life span/Protection grade/Number of circuits/Current capacity/Size/Housing material/Mass production

Main Applications:

◎Robot vacuum/Rocker camera/Petrol and mine platforms/Testing equipment/Electrical testing equipment/Medical instruments

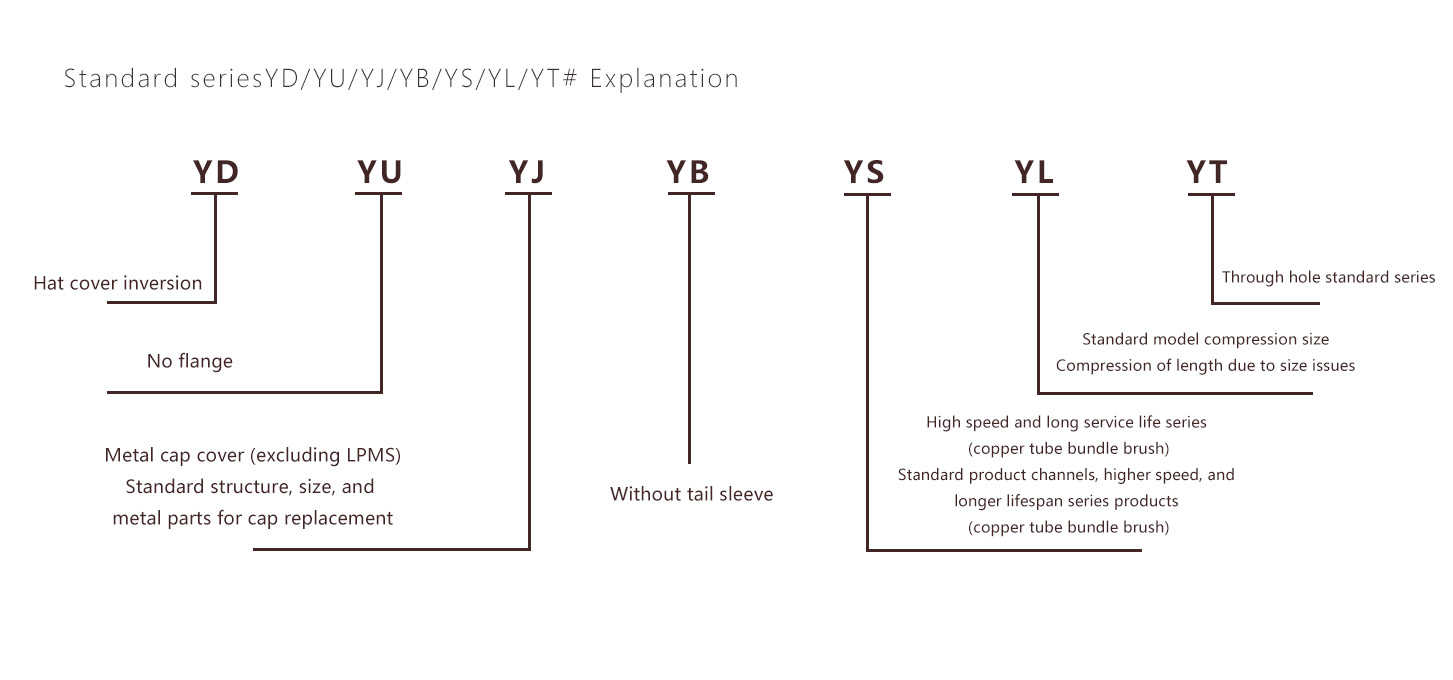

LPM Miniature Capsule Slip Rings Series
Model	Circuits	OD（mm）	Length （mm）	Voltage（AC/DC）	Current (A)	Details
LPM-04	4	Φ12.5	18	110VAC/DC	1-2A
			15.6
LPM-06	6	Φ12.5	20.6	110VAC/DC	1-2A
			18.2
LPM-12	12	Φ12.5	27.6	110VAC/DC	1-2A
			26.5
			25.2
		Φ12.7	24
		Φ12.5	35
LPM-18	18	Φ12.8	27.5	110VAC/DC	1-2A
			23.5
LPM-24	24	Φ15.5	40.4	110VAC/DC	1-2A
			34
LPM-30	30	Φ16	44.25	110VAC/DC	1-2A
			37

LPMS Standard Super Miniature Capsule Slip Rings

LPMS Super Miniature Capsule Slip Ring is able to integrate 12 or more circuits, with optional outer diameter from 5.5mm~11.1mm. This series is super mini size, with precise design using military-standard material. It can adapt to both high and low ambient temperature with a low resistance and small torque. These characteristics guarantee smooth and reliable operation of the slip rings and thus able to fit in high precision equipment or other applications with limited space and harsh conditions. Representative models:LPMS-05D/08A/08B/08C/08D/12U, etc. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.

Features:

◎Ultra compact size/Precise design/Military-standard material /Low resistance

Options:

◎Rotating speed/Number of circuits/Housing material/Protection grade/Length of leads and /Leads exit/Integrate power transmission

Main Applications:

◎Intelligent Robots/Commercial UAV/Manual stabilizer/VR devices

LPMS Super Miniature Capsule Slip Rings Series
Model	Circuits	OD（mm）	Length（mm）	Voltage（AC/DC）	Current (A)	Details
LPMS-04	4	Φ7.9	14.1	48V	1A
		Φ8.5
LPMS-05	5	Φ5.5	10.6	48V	1A
		Φ6.5
LPMS-06	6	Φ7.9	14.2	48V	1A
		Φ8.5
LPMS-08	8	Φ5.5	14.5	48V	1A
		Φ8.4	13.9
LPMS-10	10	Φ6.8	15.6	48V	1A
		Φ7.4
LPMS-12	12	Φ6.5	19.4	48V	1A
		Φ7.6

LPR Pin Slip Ring adopts exquisite and innovative design, and replaces wires with pins. This model complies with the RoHs standards, and is widely used in wind generators, production line equipment, rotating platform, cable reel and hot roller.

JINPAT Pin Connection Slip Rings are coded as LPR series. Pin connection slip rings are developed to replace mercury slip rings. Mercury slip rings were favor for a time because of it excellent electronic performances. However, since mercury is a toxic material and does harm to the environment, it has gradually stepped out from the mainstream. And pin slip rings are invented to substitute the mercury slip rings.

JINPAT Pin Connection Slip Rings adopt pin connection instead of lead wires. This slip ring type takes up a concise design. JINPAT pin slip rings complies to different standards like RoHS, PoHS and CE. Therefore, JINPAT pin connection slip rings are preferable in food and beverage production industry as well as the packing field.

In term of its structure, pin slip rings are very identifiable from other slip ring types. A pin connection slip ring takes up pins instead of wires, just like the plugs we can see in everyday life. Such feature facilitates its installation on the application end, meantime, the pin design is more endurable than wire connection, endowing the slip ring with longer working life.

JINPAT Pin Connection Slip Rings is able to rotate in 360-degree while ensuring a no loss transmission of power and signals. They are mercury-free and environmental friendly. Pin slip ring features low friction and low electrical noise. JINPAT pin slip rings are widely used in wind generators, production line equipment, rotating platform, cable reel and hot roller, etc.

Features:

◎Pin contact instead of wire contact

◎Transmit power and signal

◎Smooth function

◎Low contact resistance

◎Easy to install

Option:

◎Rotating speed

◎Number of circuits

◎Current capacity

◎Housing material

Application:

◎Wind generators

◎Rotating platform

◎Cable reel and hot roller

◎Production line equipment

Pin Connection Slip Rings
Model	Number of Circuits	Voltage （AC/DC）	Current (A)	OD*Length （mm）	Rotor Outer Diameter （D1）	Pin Base Outer Diameter （D2）	Rotor Pin Length （L1）	Rotor Exposed Length （L2）	Stator Base Length （L3）	Stator Pin Length （L4）	Details
LPR-2H	2	240V	2circuits* 25A	φ40*37	Φ13	Φ13	8	12	12	8
LPR-2S	2	240V	2circuits* 25A	φ40*37	Φ13	Φ13	8	12	12	8
LPR-4H(A)	4	240V	2circuits*5A /2circuits*15A	φ32.9*28.6	Φ15.5	Φ15.5	8	9	9	8
LPR-4H(B)	4	240V	2circuits*5A /2circuits*15A	φ32.9*28.6	Φ15.5	Φ15.5	8	9	9	8
LPR-4S	4	240V	2circuits*5A /2circuits*15A	φ32.9*28.6	Φ15.5	Φ15.5	8	9	9	8
LPR-6H	6	240V	2circuits*5A /2circuits*15A	φ33*36.5	Φ22.1	Φ22.1	8	5.1	5.1	8
LPR-8H	8	240V	2circuits*5A /2circuits*15A	φ45*52	Φ28.5	Φ28.5	8	10	10	8

JINPAT Capsule Slip Rings are important electronic components that serve small-size and medium-size systems which demand data and current transmission between a fixed part and a rotatable part. Capsule slip rings are named because of their very compact design. They are also called mini slip rings or mini electrical rotary joints. JINPAT Capsule Slip Rings can be further divided into capsule slip rings (OD 22~54mm), miniature slip rings (OD 12.5~16mm) and super miniature slip rings(5.5~11.1mm). These are slip rings with compact size that can be easily installed on applications with restricted space.

You can learn more about JINPAT capsule slip ring through our model catalogue.    Talk to our JINPAT team to work out a custom solution for you!Capsule slip rings have optional channel numbers. As you will see, the relatively large size ones can integrate more channels. Beside, you can choose a mini size slip ring with a flange design which can facilitate the installation on the application end.

JINPAT Capsule Slip Rings are the most favored type because of its vast application range and large output. This branch is a very economical product while embracing a great compatibility. Given their super lightweight and small size, JINPAT capsule slip rings fit in handy electronic products like camera stabilizer, surveillance camera system, VR headset and so on. Aside from the commercial field, mini size slip rings are also widely adopted in high-end electronic devices like lab equipment, medical devices and drones, etc. Talk to our JINPAT team to work out a custom solution for you!
