LPC-12 Capsule Slip Ring

Number of Circuits 12
Current 2A
Voltage 240V
Length(L)(mm) φ22*26.4
Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc.
Consult immediately
DetailInstallationReview(0)

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s a key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

Benefits:

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Quick shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability


Electronic & Electric

Mechanical

Circuits

Total

12 CKT

Working Speed


0~300rpm

Detail

12x2A

Contact Material

Gold to Gold

Rating Voltage

0~240V AC/DC

Housing Material

Engineering plastics

Dielectric Strength

≥500VAC@50Hz(P) ≥100VAC@50Hz(S)

Lead Wire Length

Stator:250±5mm   Rotor:250±5mm

Insulation Resistance

≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Value

≤35mΩ

Environment

Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

IP40

Note: "P" stands for power, "S" stands for signal.


LPC-12 Capsule Slip Ring

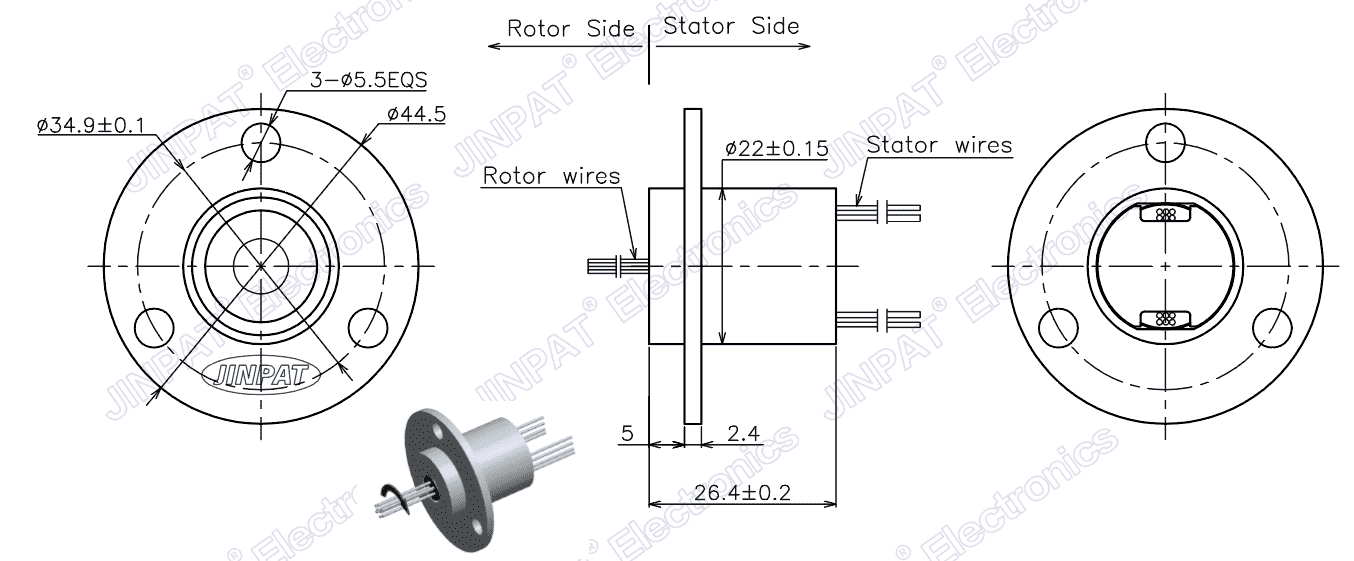

LPC-12YB Capsule Slip Ring


LPC-12YD Capsule Slip Ring

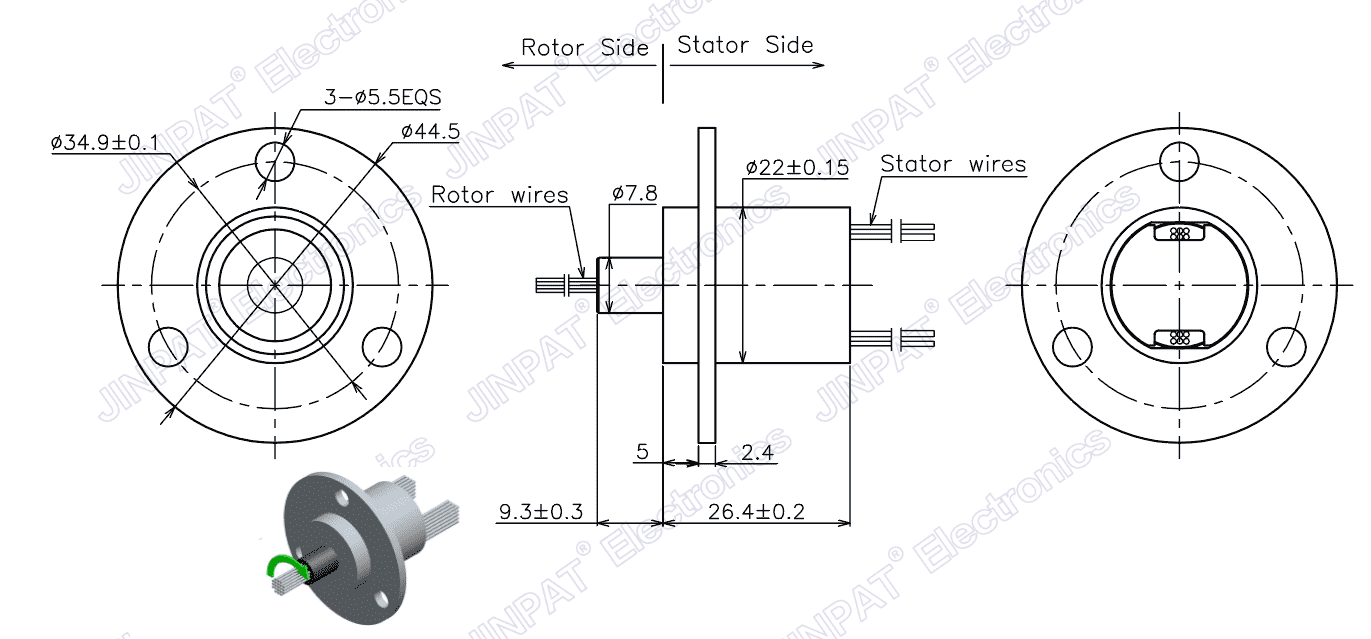

LPC-12YJ Capsule Slip Ring



LPC-12YT Capsule Slip Ring



LPC-12YU Capsule Slip Ring
