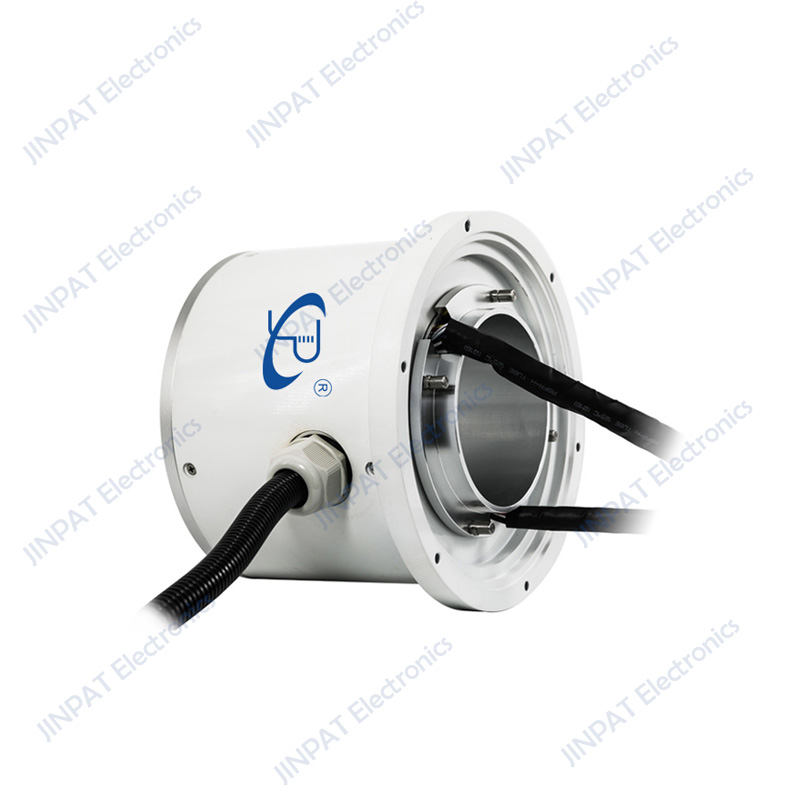

Construcion Machinery - Slip Rings for Fire Engines

share
copy Link
Facebook
X
LinkedIn
Number of Circuits 18CKT
Current 4×40A+12S+ 2×CANBUS
Insulation Resistance ≥500MΩ@500VDC
Voltage 220VAC
Consult immediately
DetailInstallationReview(0)

LPTS000-0440-14S   - Aerial ladder fire truck


Features

1、Simultaneous transmission of power and signal

2、Large through-bore design

3、Standard installation， protection grade IP67

4、Maintenance-free


Advantages

1、Excellent water-proof performance, protection grade up to IP67, fits to work in outdoor environment

2、Multiple channels for power, general signals and CANBUS signal, etc.


Electrical & ElectronicsMechanicalEnviromental

Number of circuits

18CKTRotating speed0~100rpmTemperature-30°C~+80°C
Current

4×40A+12S+

2×CANBUS

Contact material

Precious metalHumidity≤95%RH
Voltage220VAC

Housing material

Aluminum alloy

Protection

Grade

65

Dielectric strength

≥500VAC@50HzWire type

4.0/1.0mm²FLRY-B

/CANBUS

Others

Insulation resistance

≥500MΩ@500VDCWire length

Stator side:2500mm

Rotor side:2500mm

Life spanCan be customized
