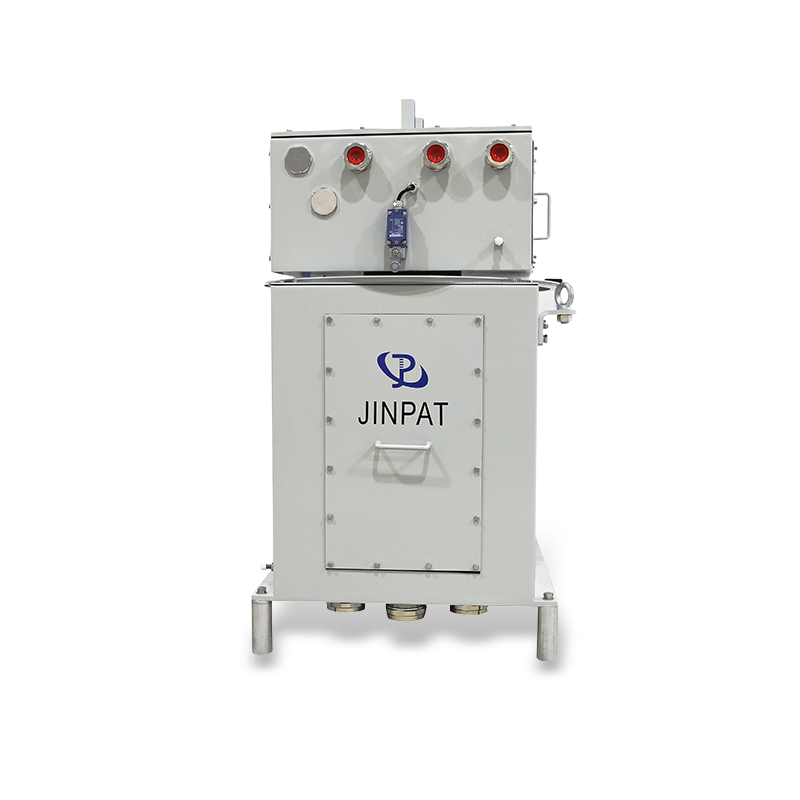

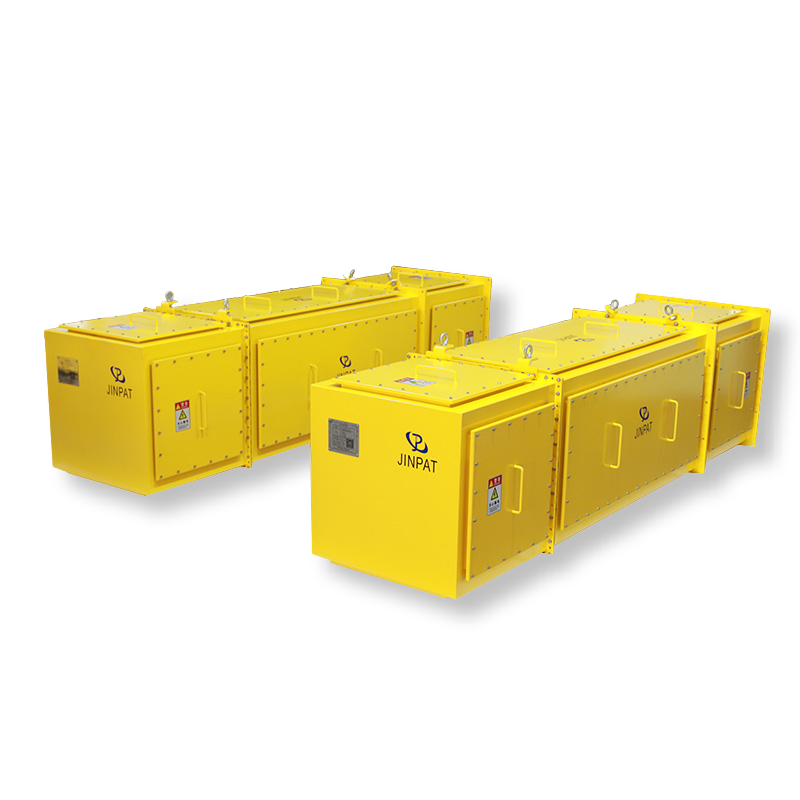

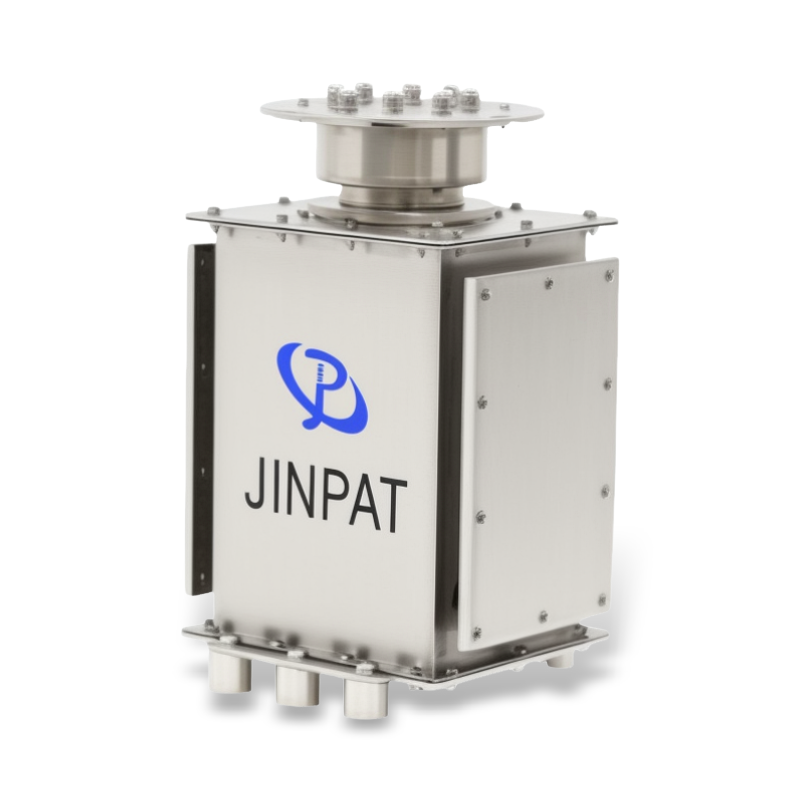

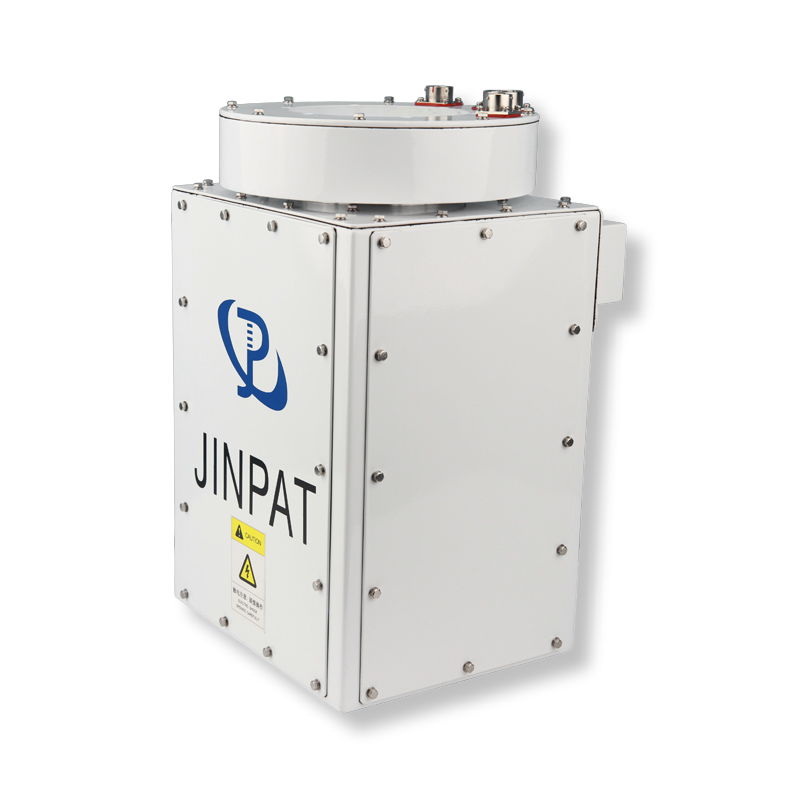

High Current Slip Ring

share
copy Link
Facebook
X
LinkedIn
Number of Circuits 3~137(Customizable)
Current 0~5000A
Voltage Handles up to 4200A and 10kV for heavy machinery and energy grids
IP customizable
Consult immediately
DetailInstallationReview(0)

JINPAT high current slip ring Series is a branch that covers slip rings with high power capacity, high voltage and transmit large current. Therefore, they are also known as large current slip rings, high power slip rings and high voltage slip rings.Designed to handle and transmit high electrical currents between stationary and rotating parts of machinery or equipment. These slip rings are specifically engineered to accommodate heavy-duty electrical power transmission, making them suitable for applications where a substantial amount of electrical current needs to be transferred while the equipment or machinery is in motion. They are frequently used especially in heavy industrial field. To fulfill a more full-rounded function, large volume slip rings sometime integrate hydraulic pneumatic channel to allow a mixed transmission of power, signals, fluid and gas.


JINPAT Large Volume Slip Rings are applied in heavy industry like construction machines, offshore platforms and podded ship propeller systems, etc. We have many mature high power solutions like crane slip rings, fire engine slip rings, marine winch slip rings, entertainment equipment slip rings and so on. By far, JINPAT has developed many successful high power rotary transmission solutions for clients at home and abroad. For our excellent slip ring performances and product quality, JINPAT has won lots of returning customer. So feel free to contact us for custom slip ring solutions!




LPA-Large Volume Series Slip rings
Model Code

Number

   of Channels

Current(A)Voltage(V)HousingOther FeaturesApplicationDetails
LPA000-02120-01PE3

2*120A+1PE2000VACStainless Steel 316EXTIIB T5 Explosion-proof

Oil Drilling

Pipe

LPA000-02600-0440-12S18

2*600A+4*40A

+12*signal

450~750VDC
/
24V~32VDC
Q235 with spray/
Construction Machinery- Crane
LPA000-03300-01PE-0350-0210-16S25

3*300A+1PE+3*50A

+2*10A+16*signal

690VAC/380VAC

/220VAC

Q235 with spray/
Marine Cranef971691601348daa9117a3cddf614e63_ABUIABAEGAAgi5jhggYol9HW-AQwIDgg.png
LPA000-034000-01PE-0606-0203-72S-11L-01A1373*4000A+1PE+3*8A+2*3A+
54*0.25A+18*0.3A+
38*signal*
12*spare+11*PE+1*Liquid
690VAC/340VAC
/220VAC*30V/24V

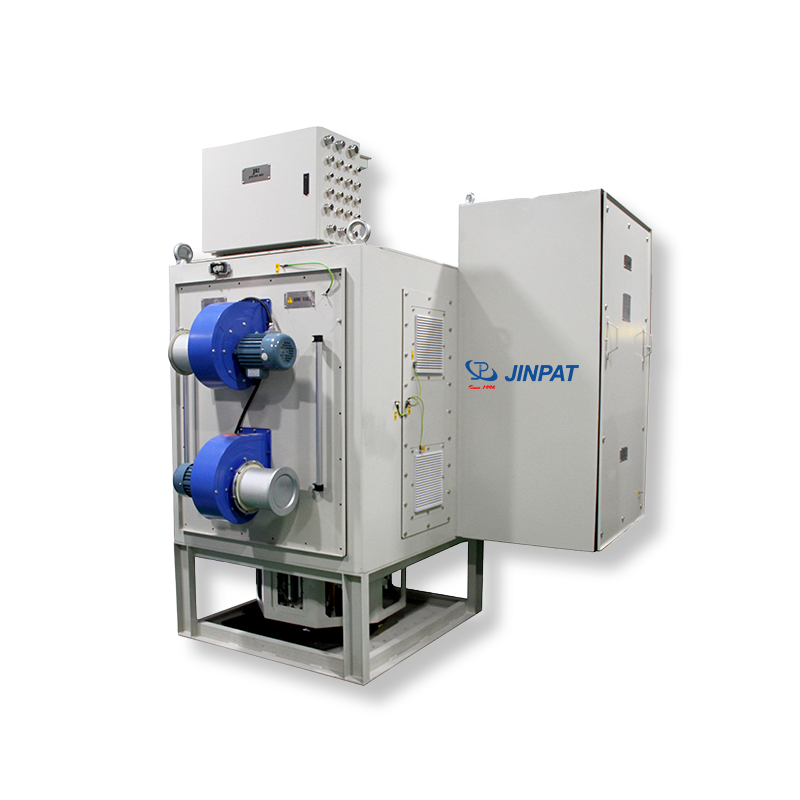

Q235 with spray3MW propeller slip ring, high power, multi-channel, integrate pneumatic hydraulic channelsShip Podded Propellerf971691601348daa9117a3cddf614e63_ABUIABAEGAAgi5jhggYol9HW-AQwIDgg.png
LPA000-06405-06PE-03100-01PE-0616-02PE-0910-03PE
36

6*405A+3*100A+6*16A

+9*10A+12PE

380VACStainless Steel 304
/
Helicopter Equipment Testing Platformf971691601348daa9117a3cddf614e63_ABUIABAEGAAgi5jhggYol9HW-AQwIDgg.png
LPA000-0780-0740-0915PE-0705PE-08S-FO1250

7*80A+7*40A+16PE+

8*signal+12*FO

3200VAC/2200VAC

/24VAC

Stainless Steel

316

Umbilical Winch Slip Ring Multi-channel, High Voltage

Mining viheclef971691601348daa9117a3cddf614e63_ABUIABAEGAAgi5jhggYol9HW-AQwIDgg.png

LPA130-031000-

01PE-50S

543*1000A+1PE+50*signal

690VAC/220VAC

/24VDC

Q235with spray1MW Ship Podded Propeller Slip Ring, Through-hole DesignShip Podded Propellerf971691601348daa9117a3cddf614e63_ABUIABAEGAAgi5jhggYol9HW-AQwIDgg.png




Current < 100A‍
Model Code

Number

   of Channels

Current(A)Voltage(V)Insertion lossOther FeaturesApplicationDetails
LPA000-0250-FO042*50A+4*FO50A4000V<5bBOptical Integration – Fiber Channels

15T Cable-Dragging

LPA112-0420-34S184*20A+34*signals

20A

310VAC/50VDC/

Modular Design – Easy Maintenance

High Durability – 100M+ Rotations

Radar Antenna




100A≤‍ ‍Current<500A‍
Model Code

Number

   of Channels

Current(A)Voltage(V)IPOther FeaturesApplicationDetails
LPA000-02120-01PE2*120A+1*PE120A2000VAC69Mpa meets waterproof requirements

Explosion-Proof – ExdⅡ Certified

High Voltage – 2200V Support

Oil Drilling Platforms

LPA000-04120
4*120A120A380V AC/DC
IP66

Carbon Brushes – Low Wear, 120A

Compact Design – 30% Smaller

Stage Rotation Equipmentf971691601348daa9117a3cddf614e63_ABUIABAEGAAgi5jhggYol9HW-AQwIDgg.png
LPA350-03200-01PE3*200A+1*PE200A380V AC/DCIP66

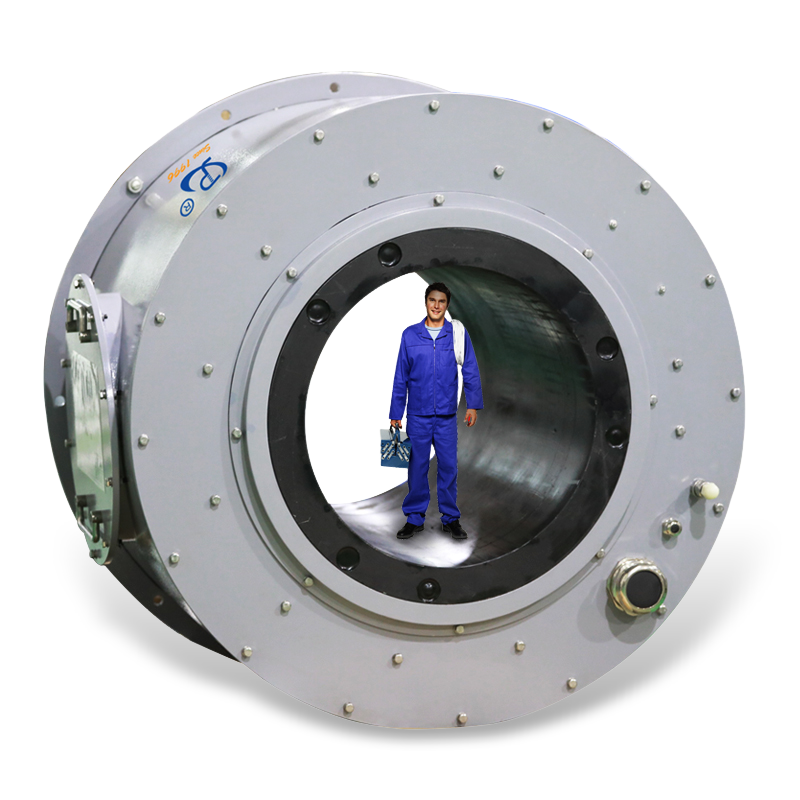

Large Through-Bore – Ø350mm

CapacityWeather-Resistant – IP66 Stainless Steel

Wind Turbine Hose Winchesf971691601348daa9117a3cddf614e63_ABUIABAEGAAgi5jhggYol9HW-AQwIDgg.png
LPA000-12400-0454-0827-0423-0813-04S-32FO12*400A+4*54A+8*27A+4*23A+8*13A+4*signal400A690V/440V ACIP66

High Capacity – 400A + 32 FO/signals Channels

Durable Housing – IP66 Marine-Grade

Cable Reelsf971691601348daa9117a3cddf614e63_ABUIABAEGAAgi5jhggYol9HW-AQwIDgg.png
LPA000-05200-01PE-0563Ex

5*200A+1*PE

5*63A(Signal)

200A/63A(Signal)

440VAC/

Global Certifications – ATEX & UL Approved

Harsh Environment – Explosion-Proof Ready

Marine Drilling Rigs/Chemical Plants/Dust-Heavy Facilities





Comment

comment
name
Praise degree
Message:
Upload pictures:
    total 0 Sheet,Only 5 images can be uploaded, each less than 5m.
    Verification code
    submit
    Related Products
    JINPAT's Independently Developed Production Equipment
    Provide quality assurance for slip rings!
    • Machining Equipment
    • CNC Test Equipment
    • Environmental Testing Equipment
    • High-Low Temperature Test Equipment
    • Machining Equipment
    • Slip Ring Life Test Equipment
    What is large current slip ring?

    Large current slip ring is a slip rings can transmitting large power/high current from a stationary part to a rotating part, preserving and isolating the electrical connection. Moflon's high current electric slip rings are high performance, low-cost alternatives to electric slip rings. Because they can function as rotary electrical connectors when high current is required, they are especially well suited for use in heating elements.
    Thanks to our unique channeled brush technology, the contact pressure between the slip ring’s brushes and rotor are greatly reduced. This, coupled with multiple brush contact points, greatly extends working life and allows these devices to be used on continuously operating machinery.

    Havn't found standard size of large current slip rings to fit my application?

    1) View "Customized Solutions", you can find more large current slip rings solutions.

    2) Customize your dimension for large current slip rings and Contact us : sales@electricslipring.com
