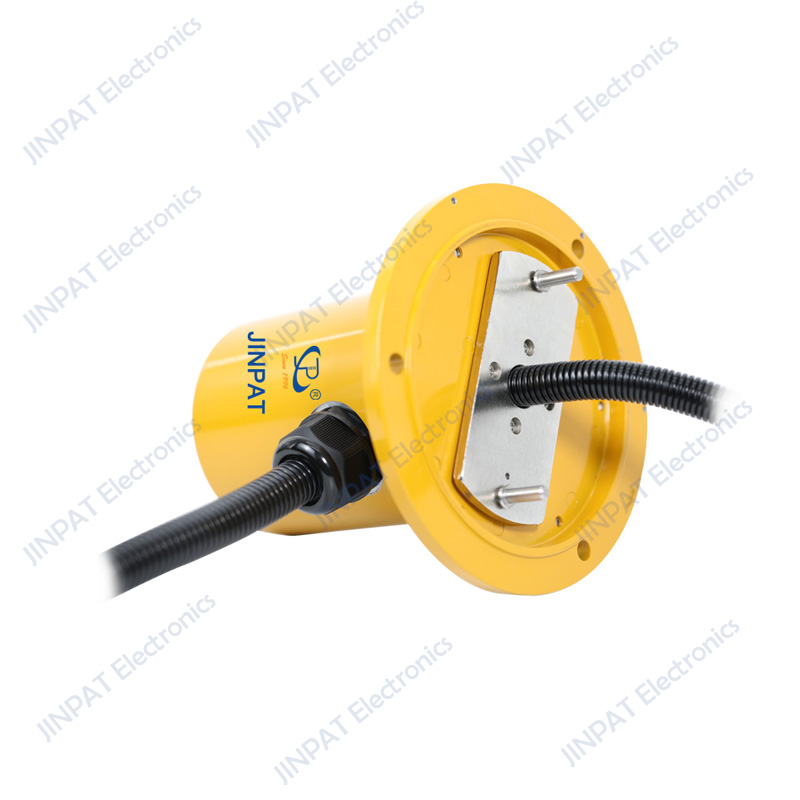

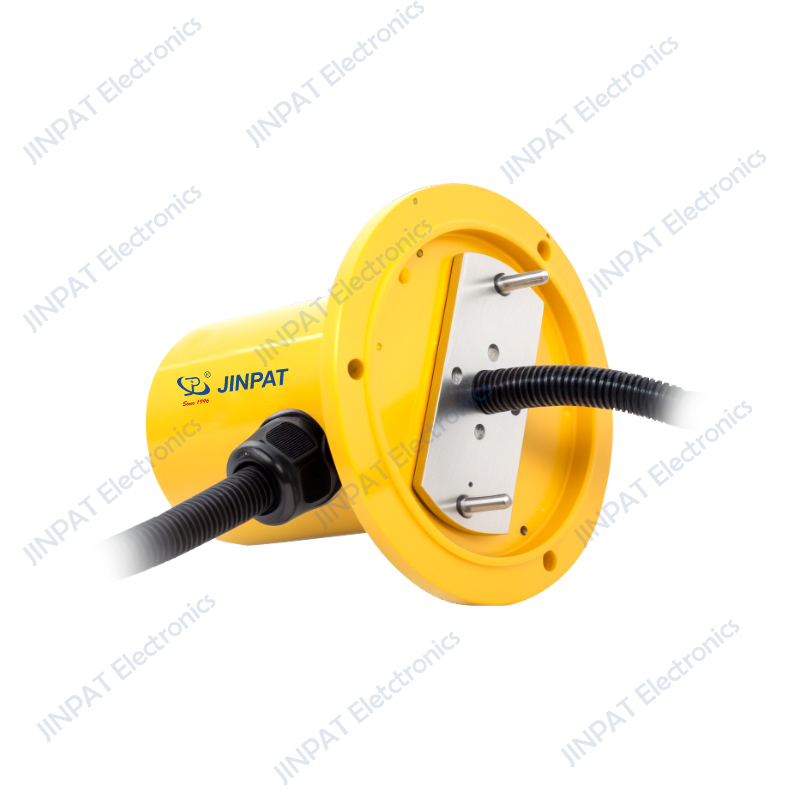

Construcion Machinery - Crane Slip Rings

share
copy Link
Facebook
X
LinkedIn
Number of Circuits 14CKT
Current 3×30A+9S+2×CANBUS +1×throttle signal
Insulation Resistance ≥500MΩ@500VDC
Voltage 36VDC
Consult immediately
DetailInstallationReview(0)

LPTS000-0330-1105   - 25T Truck Crane


Features

1、Simultaneous transmission of power and signal

2、Standard installation,protection grade IP67

3、Maintenance-free


Advantages

1、Excellent water-proof performance, protection grade up to IP67, fits to work in outdoor environment

2、Multiple channels for power, general signals, throttle signal and CANBUS signal, etc. Able to integrate encoder

3、Meet the requirements of crane models with 12T~350T lifting capacity


Electrical & ElectronicsMechanicalEnviromental

Number of circuits

14CKTRotating speed0~100rpmTemperature-30°C~+80°C
Current

3×30A+9S+2×CANBUS

+1×throttle signal

Contact material

Precious metalHumidity≤95%RH
Voltage36VDC

Housing material

Aluminum alloy

Protection Grade

IP65

Dielectric strength

≥500VAC@50HzWire type

4.0/0.75mm²

FLRY-B/CANBUS

Others

Insulation resistance

≥500MΩ@500VDCWire length

Stator side:2.4m/

CANBUS 3.4m

Rotor side:1.7m

Life spanCan be customized
