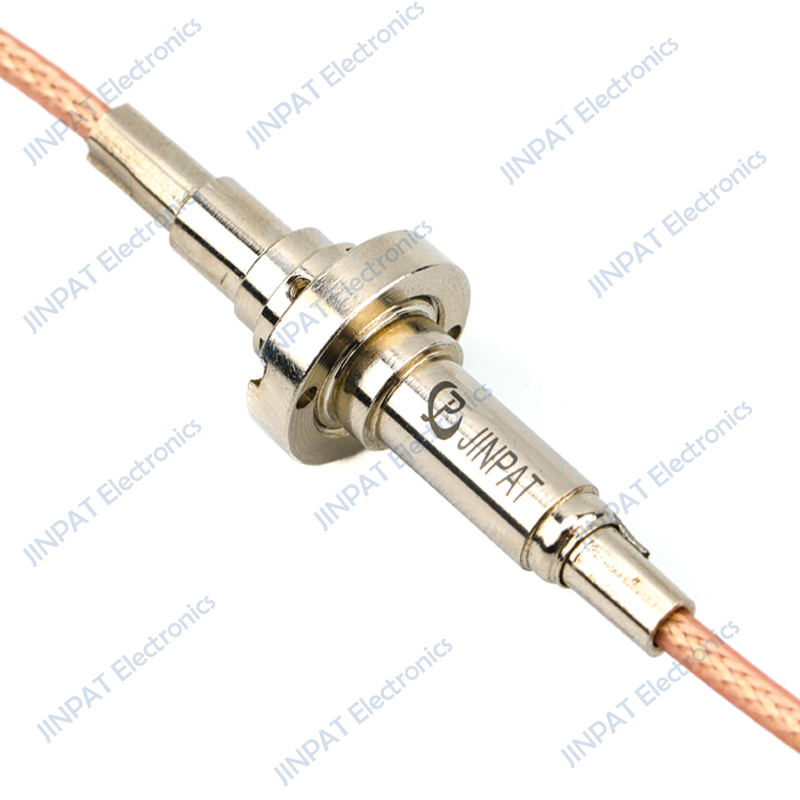

LPCC-01A Hign Frequency slip ring

share
copy Link
Facebook
X
LinkedIn
Optional Integrated transmission of high frequency signal and power signal or other signals
Consult immediately
DetailInstallationReview(0)

JINPAT LPCC rf rotary joint Series.Basing on their different characteristic impedances, the slip rings can transmit HDMI signals and RF signals. The LPCC series can be integrated with the LPC-T series. Slip ring LPCC-01A is a standard coaxial connector. This slip ring model features a compact design, super long life and free-maintainence. There no need to apply lubricants. Able to transmit analog signals and high speed digital signals.







Specifications
Interface TpeSMA/MCX/SMB/N/other

Axial Load On Interface,Max

±2N

Frequenc Range

DC-3GHzRadial Load On Interface,Max.±2N
Impedance

50Ohm

Body MaterialNickel-plated
Cable Length250mm/250mm(or As Per Order)Insulator MaterialPTFE
VSWR,Max.

1.5

MarkingLaser marking
vswr wow0.1
Weight,approx

11.5g

Insertion Loss,Max0.4dB(Without Cable) 1.4dB@250/250mmIP Protection LevelIP40
Insertion loss WOW

0.1dB

Operation Temperature-45~+80°C
Peak Power,Max.1000WStorage Temperature-55~+80°C
Average Power,Max.20WHumidit(Operation)95％
Phase WOW1°Humidit(St)95％
Rotating Speed,Max.80rpmStarting Torque2Ncm Max
Life time,Min.
2 Million RevolutionsContinuous Rotational Torque2Ncm Max
