LPA000-02120-01PE-Large Volume Series Slip ring

Voltage 2000VAC
Dielectric Strength 6000VAC@50Hz
Consult immediately
Parameters
Voltage
2000VAC
Dielectric Strength
6000VAC@50Hz
I know
DetailInstallationReview(0)

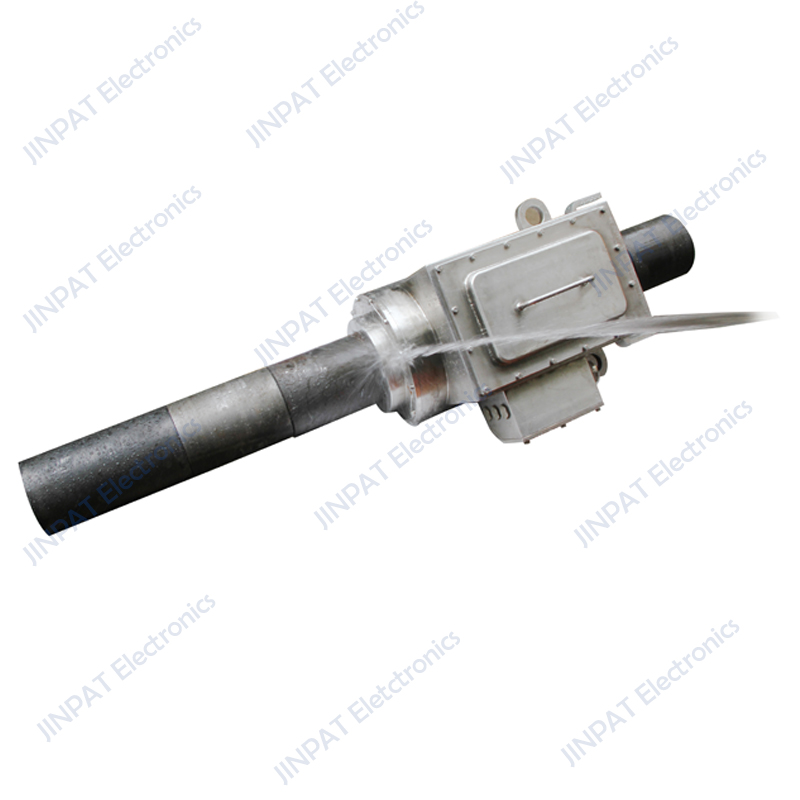

LPA000-02120-01PE,High power large current slip ring for drill poles on the oil drilling platforms. Carbon brush design, high-strength steel housing that ensures high protection grading as well as fine anti-explosion characteristic. Chinese patent-winning slip ring. The product can be sent back to our factory for maintenance.

Significance:
1. To enhance the technology standard of slip ring for mining equipment.
2. This slip ring has gone through high sealing pressure test. Provides precious experience for enhancing wire sealing.
3. Provide practical and powerful slip ring solutions for the electric oil drilling system.


Technical Breakthrough:
1. Enable a reliable 360-degree rotary high voltage transmission in a compact structure.
2. Rid of sealing problems caused by wire leads going through drill rod.
3. Anti-explosion features.


Electronic & ElectrucMechanical
Rating Voltage2000VACWorking Speed200RPM
Rated current

2*120A(2000VAC)

installationVertical Installation
Compressive strength6000VAC@50HzContact Material

Copper graphite

Insulation Resistance

1000MΩ@1000VDC

HousingStainless steel316/42CrMO
EnvironmentRemarks
Working Temperature-20°C~+65°CApplication

Oil Drilling Pipe

Working Humidity≥95%RH
IPWaterproof at 69mpaOther/



For more details about this slip ring product, please contact JINPAT.


We will provide you with a free and satisfactory customized solution!
