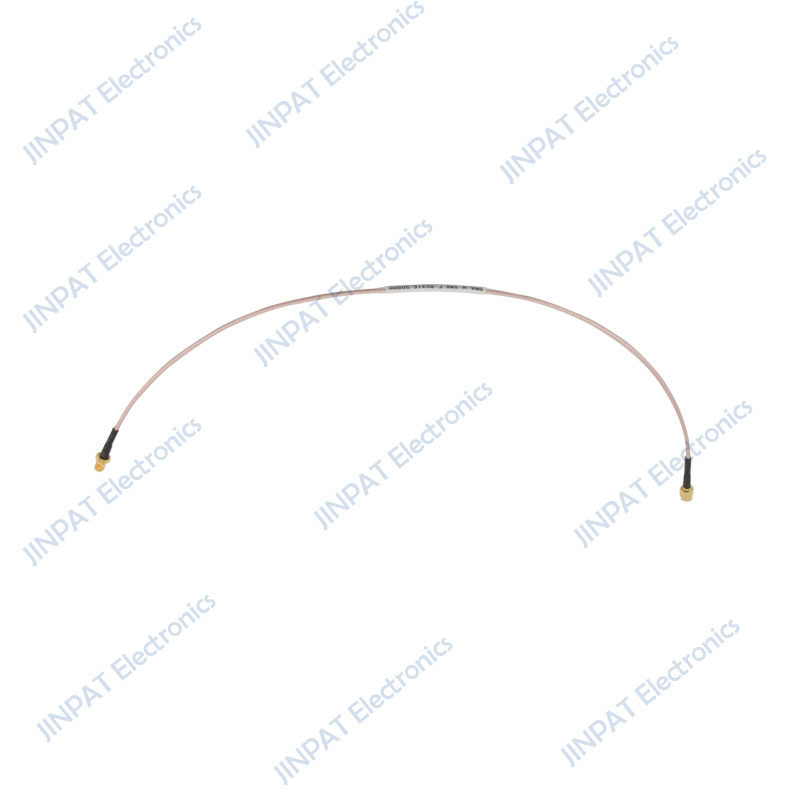

SMA-M-SMA-F-RG316-500mm
share
DetailInstallationReview(0)
| Product specification | |||
| Interface Type | SMA-M(50Ω) | Materials | BRASS/PTFE |
| Frequency range | DC-3GHz | Plating | Gold |
| VSWR,Max | 1.35 | Durability | ≥500cycles |
| Insertion loss,Max | 1.8dB | Temperature range | ﹣40~+85°C |
| Voltage rating | 335V(rms) | RoHS 2002/95/EC | RoHS Compliant |
| Dielectric withstanding voltage | 500V | Coupling nut retention | ＞60lbs（SMA） |
| Insulation resistance | 5000MΩ | Min.bending radius，dynamic | 110mm |
