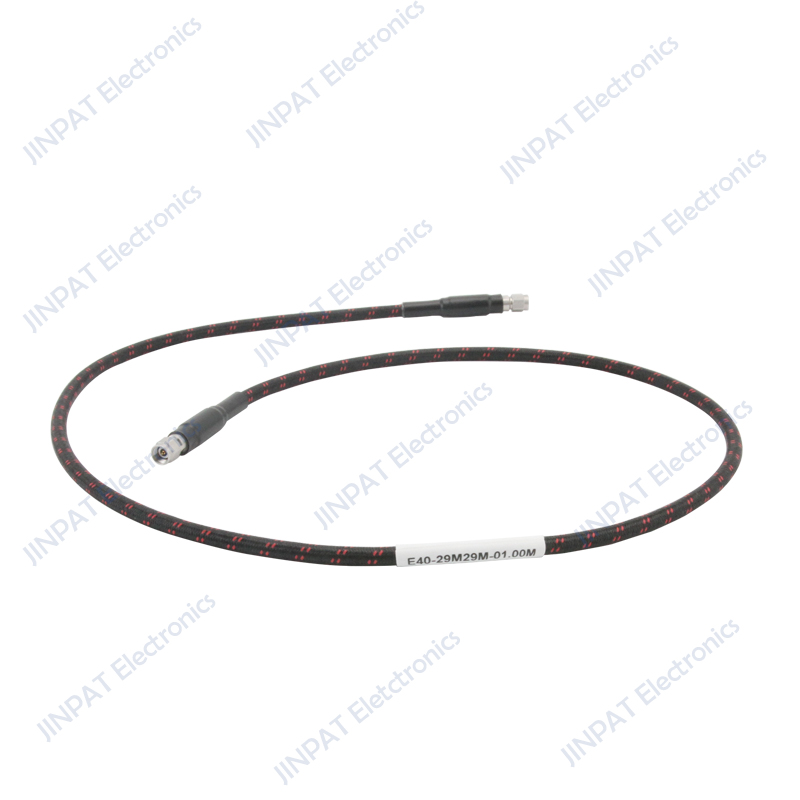

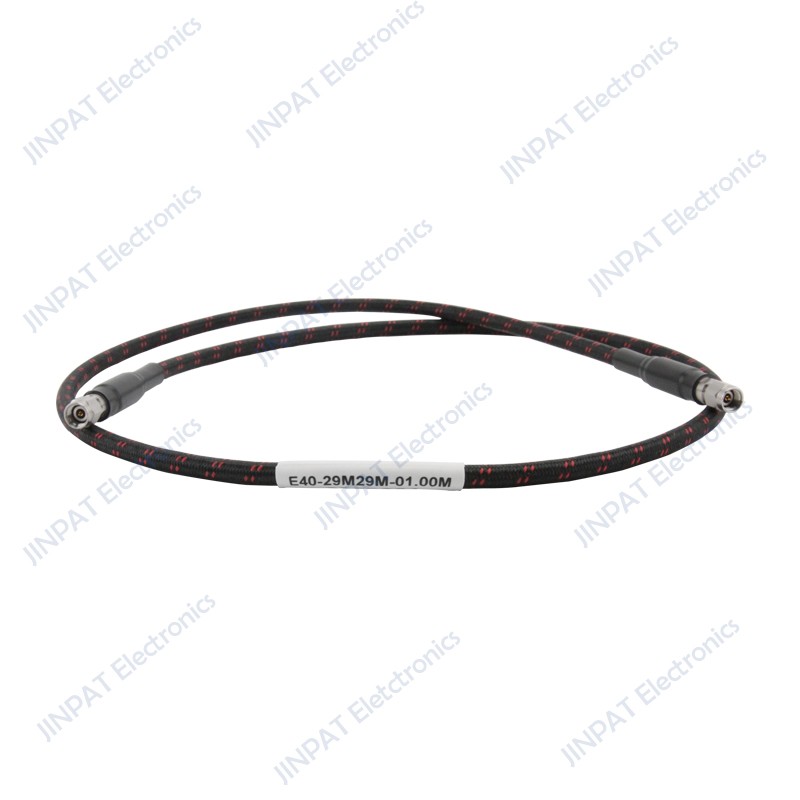

E40-29M29M-01.00M

share
copy Link
Facebook
X
LinkedIn
Consult immediately
DetailInstallationReview(0)

Commonly used high frequency lines (with armor, used for high frequency equipment connections, increasing protection and prolonging the service life of the product).





Product specification
Interface TypeN-F/N-M(50Ω)Body MaterialsStainless steel/Brass/Be-Cu/PTFE
Frequency rangeDC-40GHzPlatingPassivation/Gold
VSWR,Max1.3Durability≥500cycles
Insertion loss,Max3.35dBTemperature range﹣40~+85°C
Voltage rating335V(rms)RoHS 2002/95/ECCompliant
Dielectric withstanding   voltage500VCoupling nut retention＞60lbs
Insulation resistance3000MΩMin.bending radius，dynamic60mm
