LPM-30A Miniature Capsule Slip Rings

Number of Circuits 30
Current 1-2A
Voltage 240v
Length(L)(mm) φ16*37
Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc
Consult immediately
Parameters
Number of Circuits
30
Current
1-2A
Voltage
240v
Length(L)(mm)
φ16*37
Optional
It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc
I know
DetailReview(0)Installation

LPM-30A   Miniature Capsule Slip Rings



A slip ring capsule can be used in an electromechanical application to transfer low power and data over continuous rotary interface. A slip ring is also called a rotary electrical interface, commutator, collector, swivel or a rotary joint.

The LPM-30A compact slip ring provides 30 circuits and operational speeds up to 300 rpm. Our fiber brush technology minimizes contact wear and Precision assembly while it extends operational life.


Electronic & ElectrucMechanical
CircuitsTotal30CKTWorking Speed0~300rpm
Detail

30X1A(You can go through 2A

under certain circumstances )

Contact MaterialGold to Gold
Rating Voltage110VAC/DCHousing MaterialEngineering plastics
Dielectric Strength

200VAC@50Hz(P)

≥100VAC@50Hz(S)

Lead Wire Length

Stator: 250士5mm

Rotor:   250士5mm

Insulation Resistance

≥50MΩ@200VDC(P)

≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Balue

≤35mΩ

EnviromentalRemarks
Working Temperature-20°C~+60°Application/
Working Humidity

≤60%RH

Other/
IP
IP40Note:"P" stands dor power, "S" stands for signal

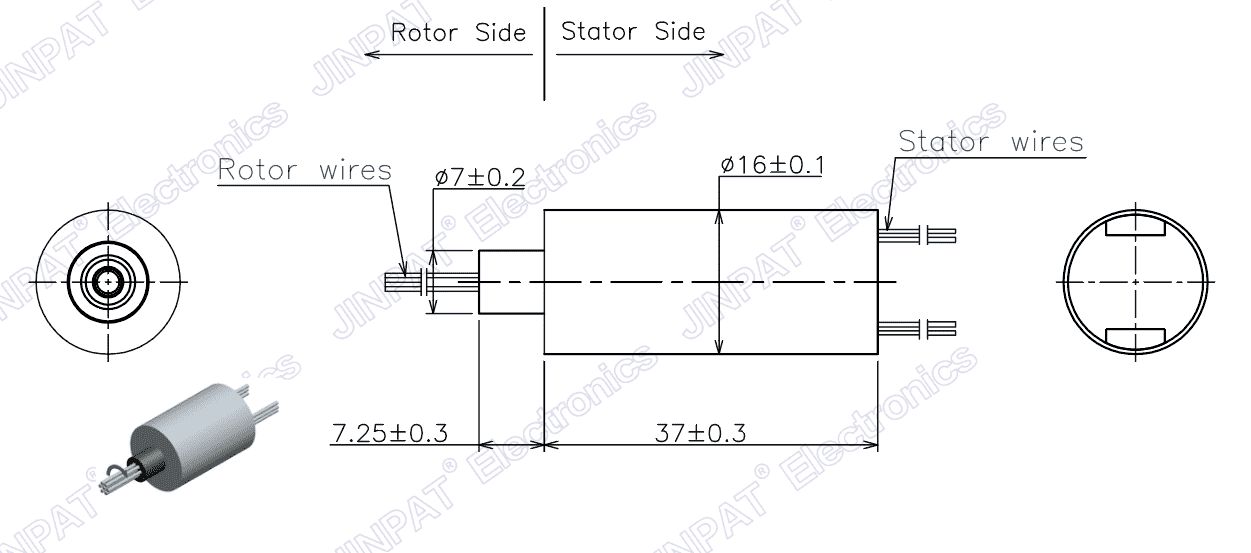

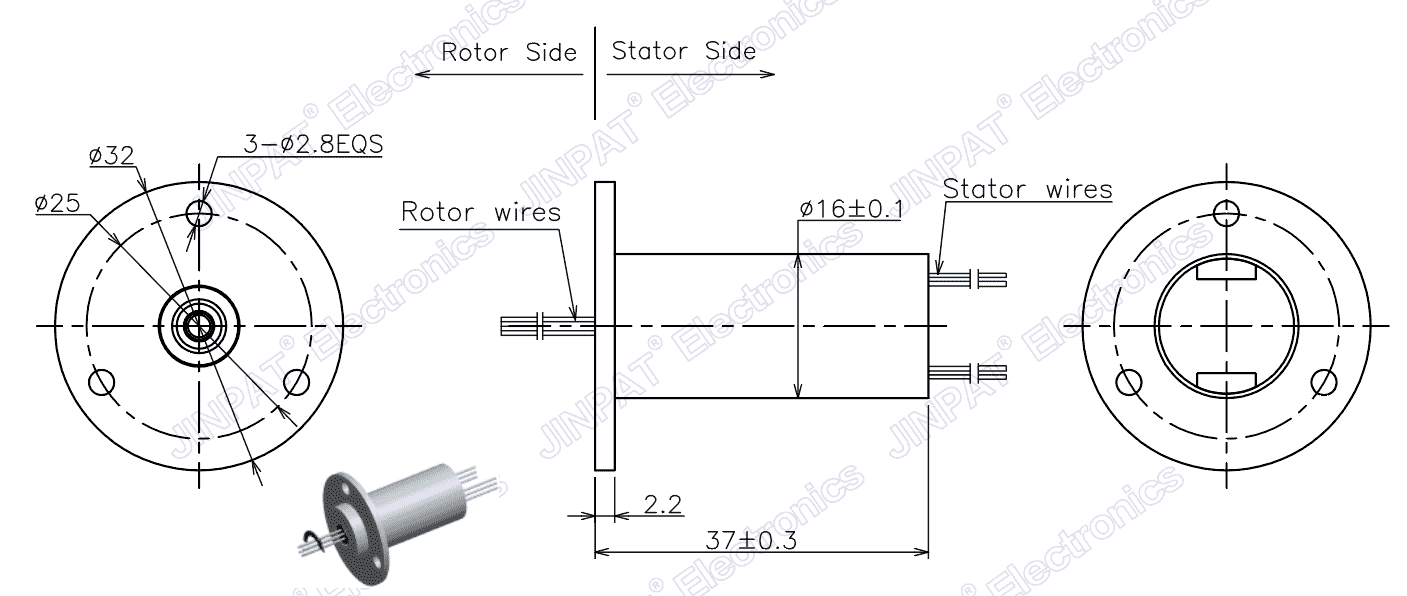

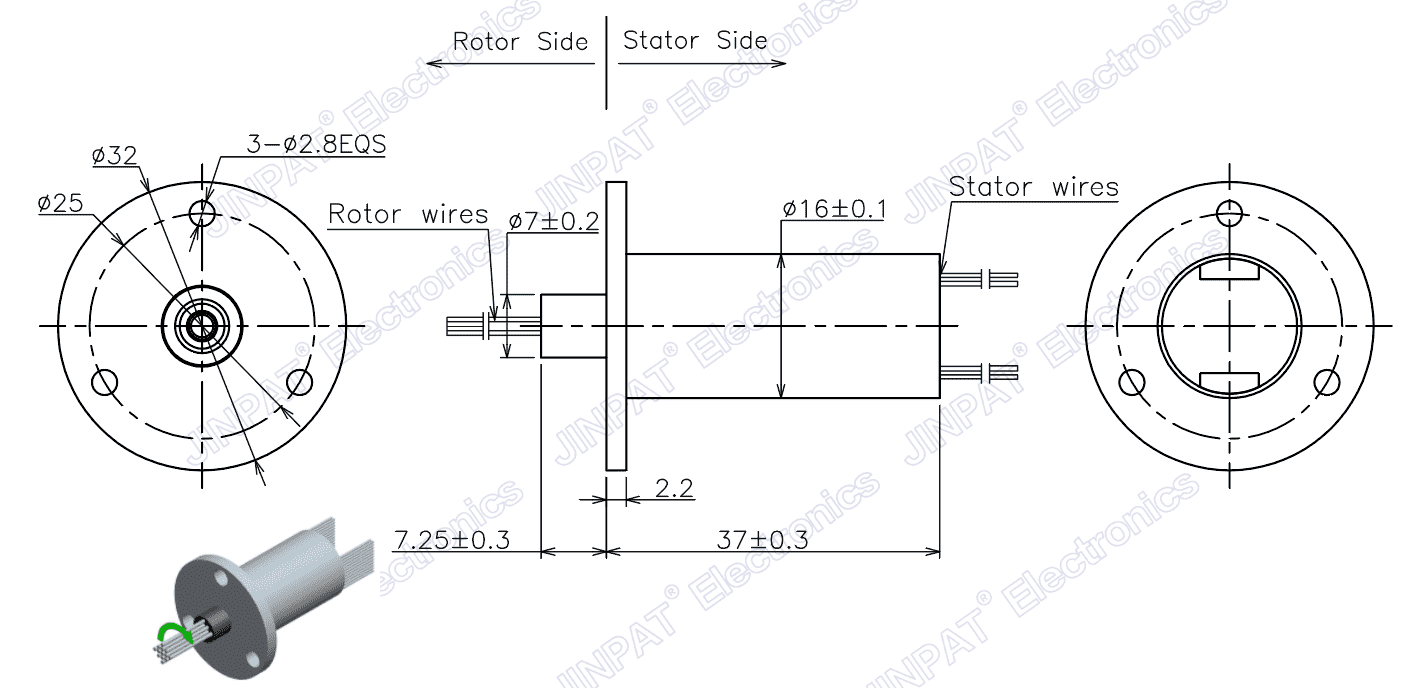

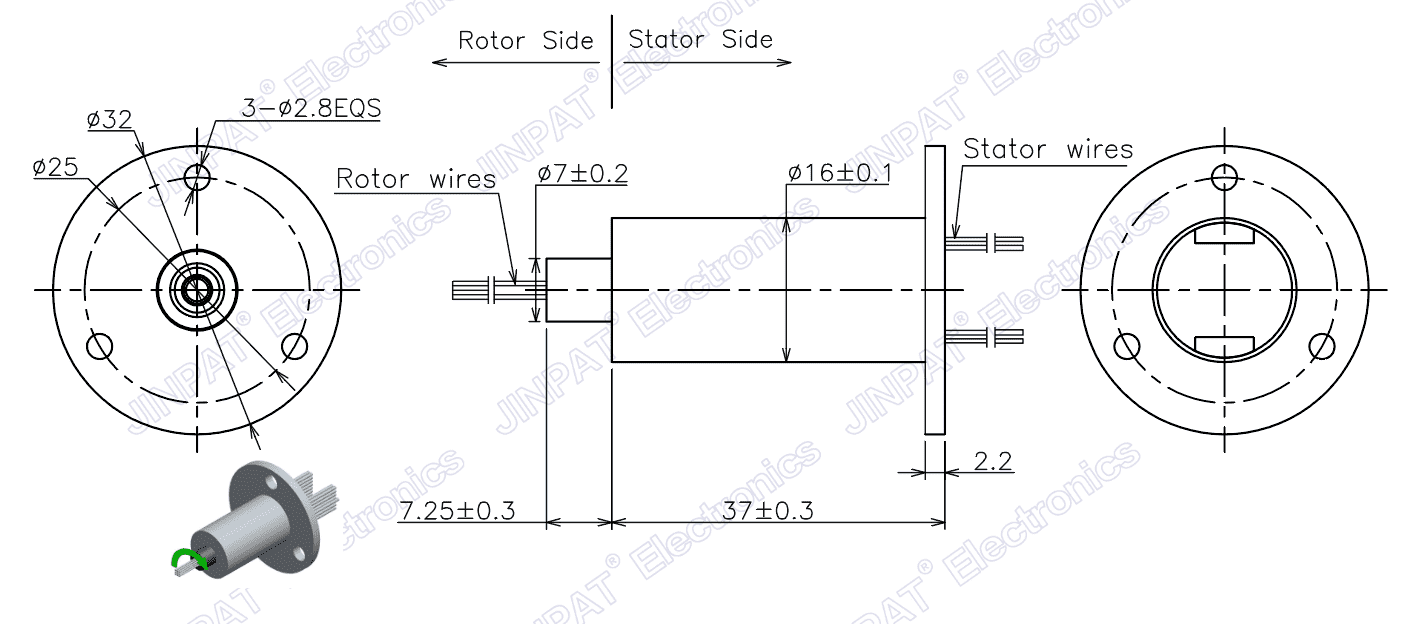

LPM-30A-Outline Drawing
