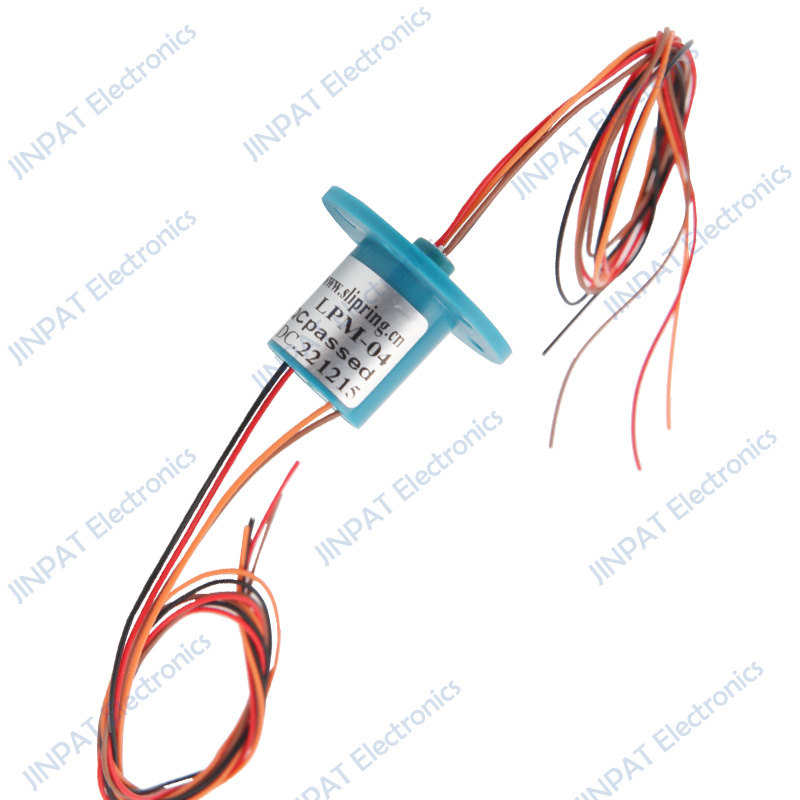

LPM-04A Miniature Capsule Slip Rings

Number of Circuits 4
Current 1-2A
Voltage 240V
Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc
Consult immediately
Parameters
Number of Circuits
4
Current
1-2A
Voltage
240V
Optional
It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc
I know
DetailReview(0)Installation

LPM-04A Miniature Slip Ring


Description

LPM04A Miniature Slip Ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. Its the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPM-04A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The LPM-04A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-4 circuit configurations.


Features

1. 4 circuits models

2. 1 amps per circuit , 240 VAC/DC

3. Precision assembly to provide exceptional rotational life

4. Speed up to 300 rpm continuous

5. Gold-Gold contacts

6. Flexible, color-coded, silver-plated, stranded copper lead wire

7. Superior handling of low level control signals

8. Metal housing optional



Electronic & ElectrucMechanical
CircuitsTotal4CKTWorking Speed0~300rpm
Detail4X2AContact MaterialGold to Gold
Rating Voltage110VAC/DCHousing MaterialEngineering plastics
Dielectric Strength

200VAC@50Hz(P)

≥100VAC@50Hz(S)

Lead Wire Length

Stator: 250士5mm

Rotor: 250士5mm

Insulation Resistance

≥500MΩ@200VDC(P)

≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Balue

≤35mΩ


EnviromentalRemarks
Working Temperature-20°C~+60°Application/
Working Humidity

≤60%RH

Other/
IP
IP40Note:"P" stands dor power, "S" stands for signal



LPM-04A-Outline Drawing
