LPM-24A Miniature Capsule Slip Rings

Number of Circuits 24
Current 1-2A
Voltage 240v
Length(L)(mm) φ15.5*39.7
Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc
Consult immediately
Parameters
Number of Circuits
24
Current
1-2A
Voltage
240v
Length(L)(mm)
φ15.5*39.7
Optional
It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc
I know
DetailReview(0)Installation

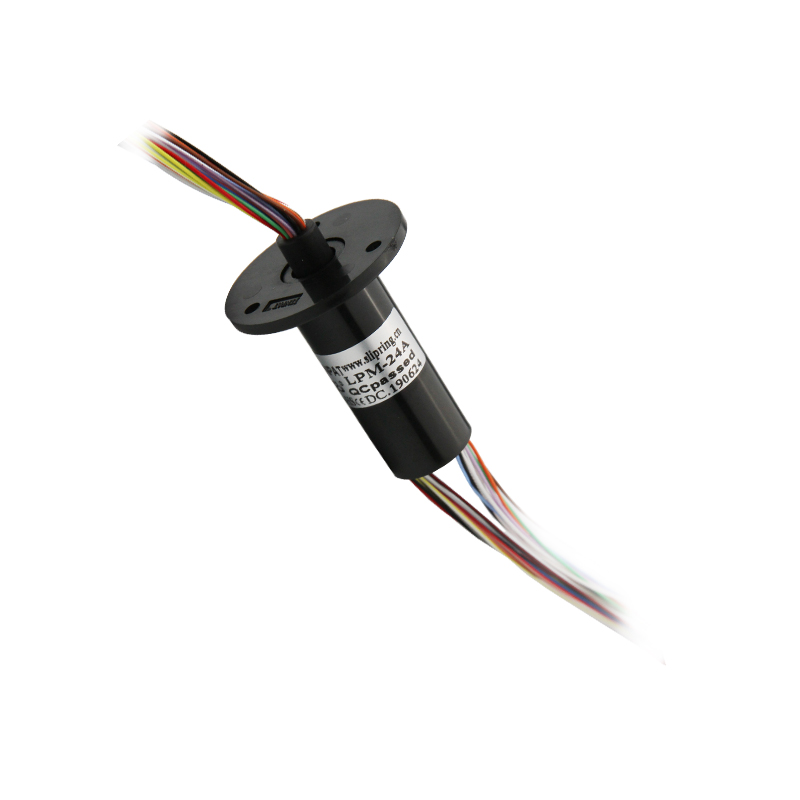

LPM-24A   Miniature Capsule Slip Rings


A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The can   improve electromechanical capability, simplify system design, eliminate possible damage while rotation.

The LPM-24A miniature slip ring is a standard, off-the shelf unit that uses gold contacts at the rotary interface. Color

coded lead wires are used on both the stator and rotor for simplifying electrical

connections. The LPM-24A allows tremendous flexibility in dealing with system size restrictions. It is available in 4, 6, 12, 18, 20 and 24 circuit configurations.



Electronic & ElectrucMechanical
CircuitsTotal24CKTWorking Speed0~300rpm
Detail

24X1A(You can go through 2A

under certain circumstances )

Contact MaterialGold to Gold
Rating Voltage110VAC/DCHousing MaterialEngineering plastics
Dielectric Strength

200VAC@50Hz(P)

≥100VAC@50Hz(S)

Lead Wire Length

Stator: 250士5mm

Rotor:   250士5mm

Insulation Resistance

≥50MΩ@200VDC(P)

≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Balue

≤35mΩ

EnviromentalRemarks
Working Temperature-20°C~+60°Application/
Working Humidity

≤60%RH

Other/
IP
IP40Note:"P" stands dor power, "S" stands for signal



LPM-24A-Outline Drawing
