LPM-18 Miniature Capsule Slip Rings

share
copy Link
Facebook
X
LinkedIn
Number of Circuits 18
Current 1-2A
Voltage 110VAC/DC
Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc
Consult immediately
DetailInstallationReview(0)

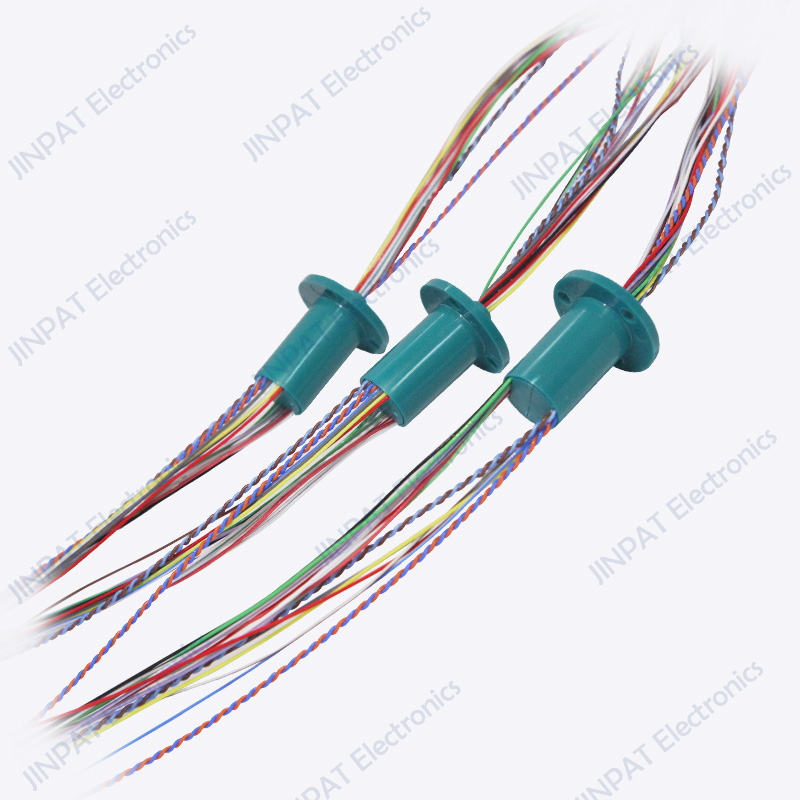

LPM-18A   Miniature Capsule Slip Rings


This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It’s the key apparatus of   various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPM-18A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. The use of gold on gold contacts assures long life, low noise, minimal interference between circuits, and low contact resistance.


Electronic & ElectrucMechanical
CircuitsTotal18CKTWorking Speed0~300rpm
Detail

12X1A(You can go through 2A

under certain circumstances )

Contact MaterialGold to Gold
Rating Voltage110VAC/DCHousing MaterialEngineering plastics
Dielectric Strength

≥200VAC@50Hz(P)

≥100VAC@50Hz(S)

Lead Wire Length

Stator: 250士5mm

Rotor:   250士5mm

Insulation Resistance

≥500MΩ@200VDC(P)

≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Balue

≤35mΩ

EnviromentalRemarks
Working Temperature-20°C~+60°Application/
Working Humidity

≤60%RH

Other/
IP
IP40Note:"P" stands dor power, "S" stands for signal
