Precision Manufacturing – JINPAT Slip Rings Applied to Machining

With the comprehensive networking of machining centers, barcode labeling machines, and precision measuring instruments, the demand for real-time data exchange is growing exponentially. Under 360-degree continuous rotation conditions, traditional cable chain wiring not only occupies huge space but is also more prone to fatigue damage leading to system failure.

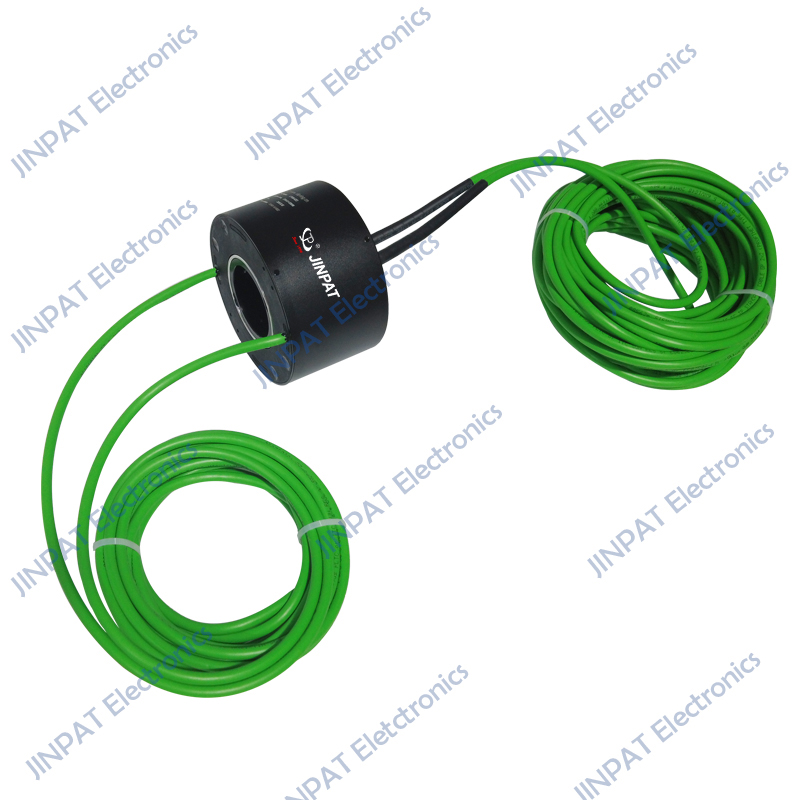

JINPAT Hollow Shaft Slip Ring: Born for Digital Machining

Dual-channel 100Mbps Ethernet, Ensuring Instant Command Response: Addressing the complex electromagnetic fields intertwined by frequency converters and high-power motors, this slip ring employs patented shielding technology and dedicated Ethernet cables to ensure that the two 100Mbps signals do not interfere with each other. Whether based on EtherCAT or Profinet protocols, it achieves zero-packet-loss transmission, meeting the stringent requirements for position feedback and real-time monitoring in highly flexible production.

The aesthetics of its hollow shaft design: The large central aperture (customizable) is not only an innovation in structure but also a powerful tool for functional integration. It allows hydraulic pipes, pneumatic power sources, and even structural supports to pass directly through the slip ring center, greatly simplifying the mechanical architecture of the precision rotary table and reducing the overall maintenance difficulty.

Long-lasting and stable electrical contact: Utilizing precious metal cluster brushes and multi-point contact technology, electrical noise is extremely low. This means that even at high-speed rotation, weak sensor signals will not be drowned out by background noise, ensuring long-term stability of machining accuracy.

In an industrial context that pursues ultimate efficiency, choosing JINPAT is not just choosing an accessory, but establishing a high-speed, stable digital "communication artery" for your equipment.
