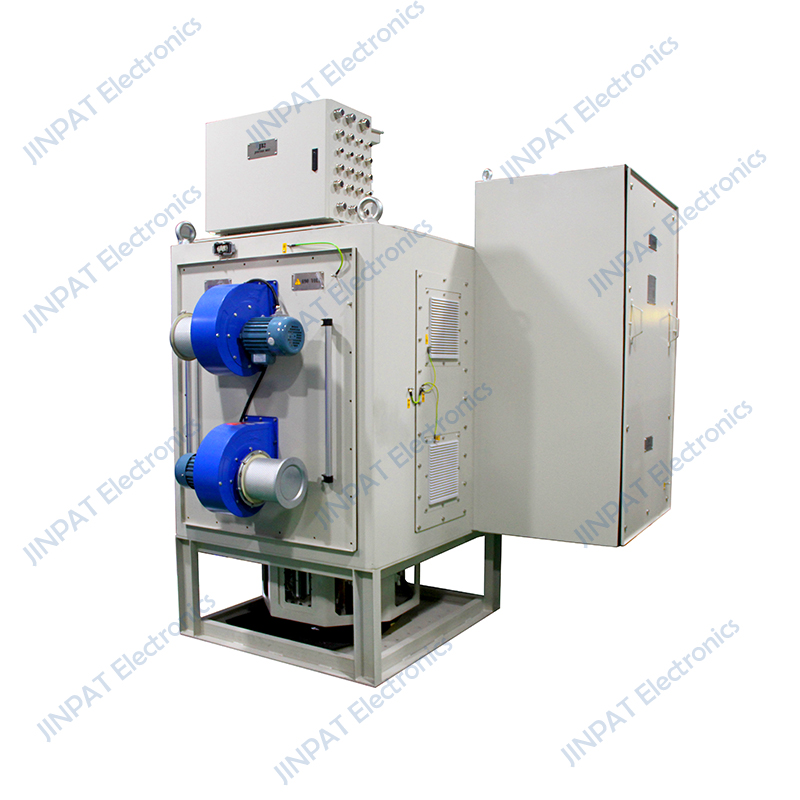

JINPAT ship podded propeller slip ring with large through-bore. Power capacity up tp 1MW. Takes up modular design, the weak power signal module and the high power module. IP54/IP65.
With case design and special housing, the slip ring demonstrates fine resistance against salt spray, oil mist and corrosion, etc.JINPAT podded propeller slip ring is able to provide reliable and stable service to the podded propeller under complex applied environment.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 54CKT | Working Speed | 0~2RPM |
| Detail | 5*1000A+1*PE+50*signal | A hole diameter | / | |
| Rating Voltage | 690VAC/220VAC/24VDC | Contact Material | High-end Copper Graphite/ Precious Metal | |
| Dielectric Strength | 2500VAC@50和z(P) | Housing | Q235 Spray Coating(Color to be determined) | |
| Insulation Resistance | ≥500MΩ@1000VDC(P) ≥10MΩ250VDC(S) | installation | Vertical Installation | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+45°C | Application | Ship Podded Propeller | |
| Working Humidity | ≥95%RH | |||
| IP | IP65(without ventilator) | Other | / | |
For more details about this slip ring product, please contact JINPAT.
We will provide you with a free and satisfactory customized solution!
