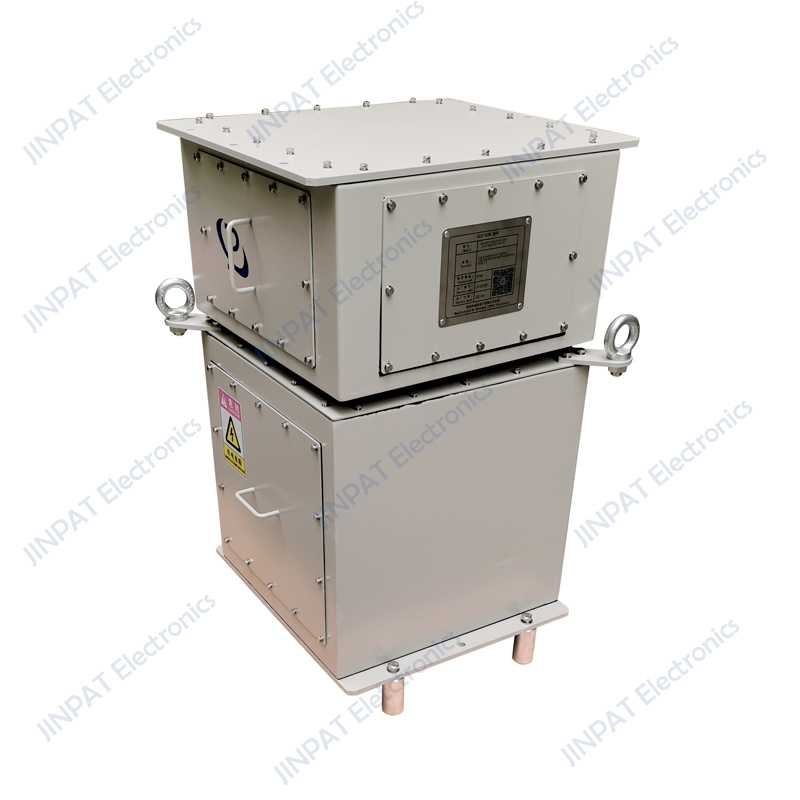

This is a marine crane slip ring,Double-case design with frame structure inside. With a window design on both the stator and the rotor side to facilitate inspection and maintenance. The weak power module is integrated within the bore of the hollow shaft slip ring. Fan/Heater can be integrated upon request. Can integrate with signal module, pneumatic/hydraulic module and multi-channel fiber optic rotary joints.Optional protection grading and explosion-proof grading.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 25CKT | Working Speed | 0~10RPM |
| Detail | 3*300A+1*PE+3*50A+ 2*10A+16*signal | A hole diameter | / | |
| Rating Voltage | 690VAC/380VAC/220VAC | Contact Material | High-end Copper Graphite/ Precious Metal | |
| Dielectric Strength | 2000VAC@50Hz(P) | Housing | Q235 Spray Coating(RAL 7035) | |
| Insulation Resistance | ≥1000MΩ@1000VDC(P) ≥500MΩ500VDC(S) | installation | Vertical Installation | |
| Environment | Remarks | |||
| Working Temperature | -10°C~+45°C | Application | Marine Crane | |
| Working Humidity | ≥95%RH | |||
| IP | IP44 | Other | / | |
For more details about this slip ring product, please contact JINPAT.
We will provide you with a free and satisfactory customized solution!
