The LPC-1C1202-A slip ring is a special unit with RF Coaxial Connector. The Bandwidth could achieve to 50MHz-3GHz. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Slip Ring  RF Coaxial,High Frequency Signal Coaxial Connector 12 circuits slip rings



The LPC-1C1202-A slip ring is a special unit with RF Coaxial Connector. The Bandwidth could achieve to 50MHz-3GHz. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-1C1202 provides smoother running, lower torque and lower electrical noise than competitive slip rings.



Circuits12
Current Rating2A
Voltage240VAC
Dielectric Strength≥500V@50Hz between circuits
Insulation100MΩ@500VDC
Electrical Noise≤50mΩ
Working Speed0~50 RPM
ContactPrecious metal
HousingAluminum alloy
Working Temperature-20~+60℃
Humidity≤60%RH
Wire specificationAWG28#
Frequency RangeDC~1.5GHz
Insertion loss<4dB
Protection GradeIP54

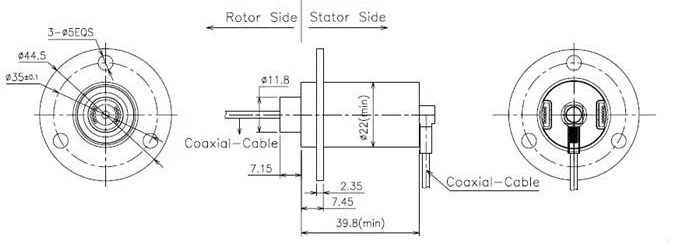

Product outline drawing




Features

  • 12 circuits

  • 2 amps per circuit, 240VAC/DC

  • Precision ball bearings meet or exceed life requirements for most commercial applications

  • Gold-gold contacts

  • Special slip ring with RF Coaxial Connector and high frequency

  • Compatible with data bus protocols

  • Sealed units are available

  • Transferring current and SDI signal

  • Flexible, color-coded, silver-plated, Teflon® UL lead wires

  • Transmitting analog and digital signals



Advantages

  • Transferring analog-digital SDI signal

  • Low torque minimizes system torque budget

  • Compact design to fit into the most demanding space

  • Smooth work with low electrical noise

  • Simplified system design and high performance

  • Quick shipment of urgent requirements

  • 360°continuous rotation

  • Lower electrical noise than competitive slip rings

  • High bandwidth transferring capability



Options

  • Placement of custom circuitry directly onto the unit

  • Custom mechanical integration features

  • Addition of special components

  • Inclusion of coaxial and miniature data bus cables



Main Application

  • Manufacturing and Process Control Equipment

  • High Definition Camera,

  • Indexing Tables. Closed-circuit Control

  • Shadowless Lamp, CT Machine, Fire Engine

  • Robotics, Rotary Sensors, Urgent Illume Equipment

  • Exhibit / Display Equipment.

  • Steering Wheel Racing Simulation

  • Aviation, Military, Medical EquipmentS

  • Mini-type Coiling Machine

  • Automatic Equipment / Robot / Spot Welding and Radar Antenna

  • CCTV pan / tilt camera mounts

  • Electrical Test Equipment
