Flat Slip Ring with Large Dielectric Strength for Rotary Table pancake slip rings
  • JINPAT
  • China
  • 2 weeks
  • 100

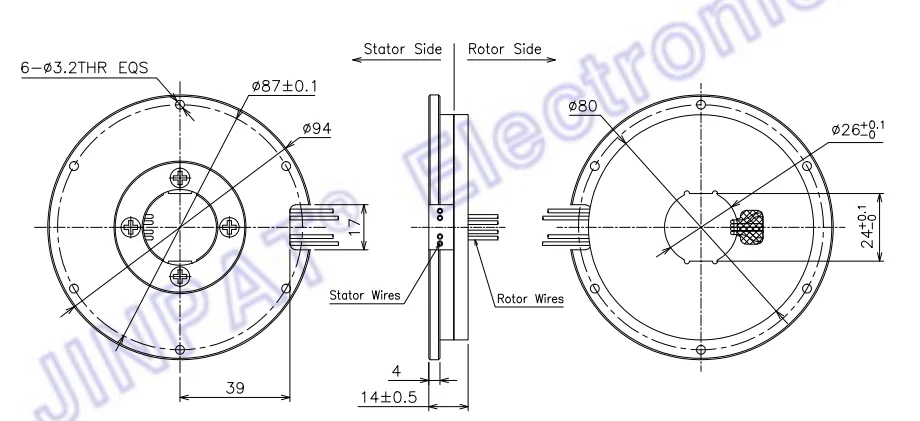

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.


Features

High Rotating Speed

Unfailing contact, light figure

Extremely low physical noise

Transmitting power and signal in 360° rotation

No interference or connection drop


Advantages

Ready-made photoelectric encoder

Optional solid and hollow shafts

Rapid delivery

Custom solution



Specification


Electronic & Electric

                                       Mechanical

Circuits

2circuits * 7A



Working Speed

0~20rpm

Working Voltage

220VDC/AC

Contact

Nobel Metal

Dielectric Strength



≥300VDC@50Hz



Housing

Aluminum Alloy

Insulation

200MΩ@500VDC

Wire Length

Stator Wire:500mm

Rotor Wire: 500mm

Environment

Remarks

Temperature

-40°C~+60°C

Installation Method



Stator is fixed on the customer's flange with screws



IP

IP51







Main Application

1. Packaging / wrapping machinery
2. Semiconductor handling systems
3. Industrial machinery
4. Exhibit Display machinery
5. Medical equipment
6. Rotary index tables
7. Process control equipment
