inertial navigation system slip ring

Number of Circuits 44 * common signal
Contact Material Precious Metal
Dielectric Strength Between circuits≥100VAC@50Hz
Consult immediately
DetailInstallationReview(0)
JINPAT LPMS-44S is a custom slip ring solution with independent patent. This is a super miniature slip ring specially designed for inertial navigation system. There are 44 signal channels in this very compact size slip ring. The amazing thing is, with a length of 23mm, and a diameter of 16mm, the super miniature slip ring is able to integrate such a great number of channels. JINPAT adopts high precision machine technique to produce super miniature slip rings, making sure they have excellent uniformity and high precision.
JINPAT LPMS-44S for its super mini size and signal capacity, the slip ring can be applied in demanding electronic systems like military devices and aviation industry. Meantime, the super miniature slip ring has super low friction and therefore able to sustain a smooth, quiet and lasting rotation. This custom slip ring model is also the epitome of advanced slip ring manufacture technology.


LPMS-44S product features:

  • Compact design in length, 44 tracks within 21mm.

  • Tiny in outer diameter size, 44 tracks within 16mm.

  • Superior performance,remaining stable in 300rpm.

  • Moisture resistant with waterproof sealant, up to 95%RH.

  • Transmitting over 20 kinds of signals, such as Ethernet, USB2.0,SDI video, Sensor Signal, etc.

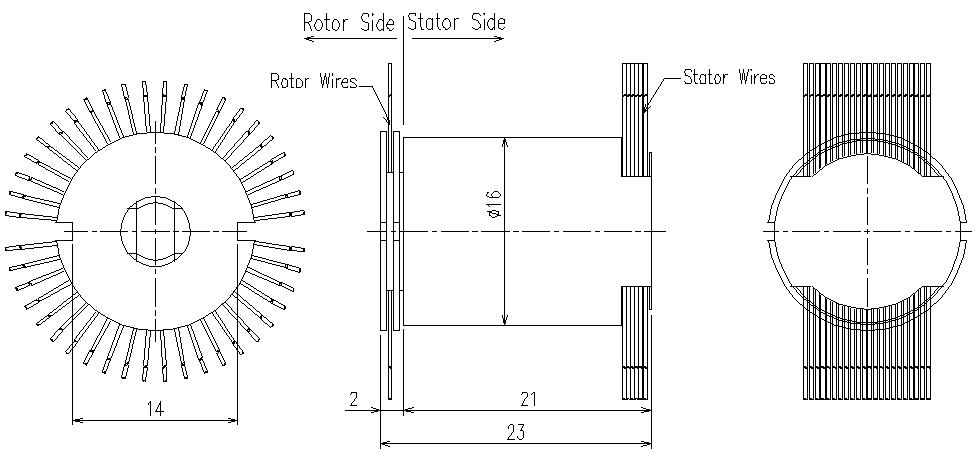

LPMS-44S outline drawing:



LPMS-44S slip ring parameter table:


Electronic & Electric

Mechanical

Circuit

44 * common

signal

Working Speed

0~300rpm

Working Voltage

48VAC/VDC

Inner Diameter

/

Dielectric Strength

Between circuits≥100VAC@50Hz

Contact

Precious Metal

Insulation

10MΩ@100VDC

Housing

Stainless Steel

Electrical Noise

≤35mΩ(5rpm)

Wire Length

Rotor:250±5mm

Stator:250±5mm

Environment

Remark

Temperature

-20°C~+60°C

Application

Electro-optical pod/

Military Rotary Table

Humidity

≤95%RH

Life

5 million turns
