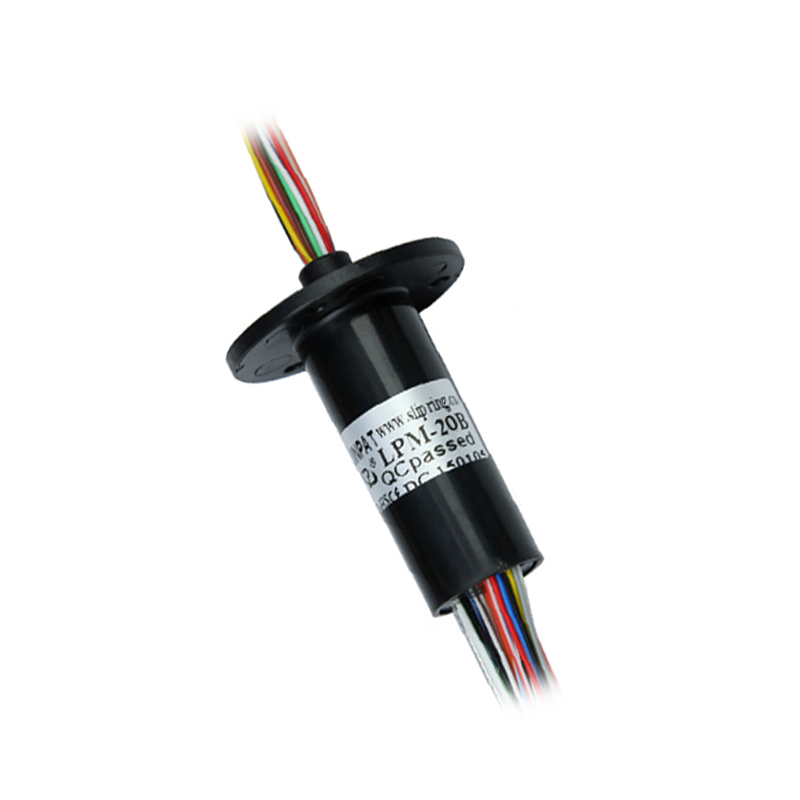

LPM-20B Miniature Capsule Slip Rings
This series of slip ring can be used in any electromechanical system that requires unrestrained,
continuous rotation while transferring power or data from a stationary to a rotating structure. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation.
It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
The LPM-20B allows tremendous flexibility in dealing with system size restrictions. It is available in 4, 6 12, 18 and 20 circuit configurations.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 20CKT | Working Speed | 0~300rpm |
| Detail | 20X1A(You can go through 2A under certain circumstances ) | Contact Material | Gold to Gold | |
| Rating Voltage | 110VAC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥200VAC@50Hz(P) ≥100VAC@50Hz(S) | Lead Wire Length | Stator: 250士5mm Rotor: 250士5mm | |
| Insulation Resistance | ≥50MΩ@200VDC(P) ≥10MΩ@100VDC(S) | Dynamic Resistance Fluctuation Balue | ≤35mΩ | |
| Enviromental | Remarks | |||
| Working Temperature | -20°C~+60°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||
LPM-20B -Outline Drawing
