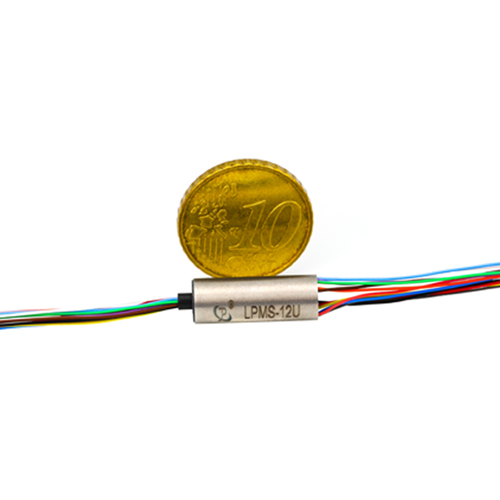

This slip ring product adopts unique fiber coating technique that contributes to its low electrical noise and low wear. Besides, it also takes up US military class gold-plated surface processing technique and therefore ensure a long product life of the slip ring. It can transmit up to 30 kinds of signals like USB, HDMI, SDI, Ethernet and RS422, etc. while enabling 360-degree rotation. Customers can choose slip rings of various sizes according to their own needs.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 12 CKT | Working Speed | 0~300rpm |
| Detail | 12X1A | Contact Material | Gold to Gold | |
| Rating Voltage | 48V AC/DC | Housing Material | Stainless Steel | |
| Dielectric Strength | ≥100VAC@50Hz | Lead Wire Length | Stator: 250士5mm Rotor: 250士5mm | |
| Insulation Resistance | ≥50MΩ@100VDC | Dynamic Resistance Fluctuation Balue | ≤35mΩ | |
| Enviromental | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||
