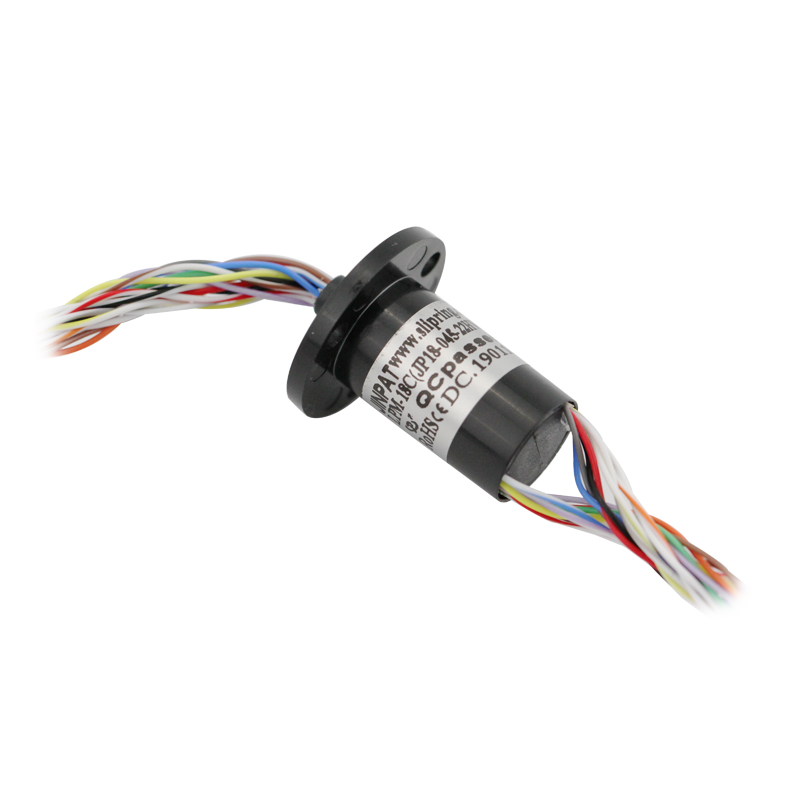

LPM-18C Miniature Capsule Slip Rings
The LPM-18C miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color -coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The LPM-18C allows tremendous flexibility in dealing with system size restrictions. It is available in 1 to 8 circuit configurations.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 18CKT | Working Speed | 0~300rpm |
| Detail | 18X1A(You can go through 2A under certain circumstances ) | Contact Material | Gold to Gold | |
| Rating Voltage | 110VAC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥200VAC@50Hz(P) ≥100VAC@50Hz(S) | Lead Wire Length | Stator: 250士5mm Rotor: 250士5mm | |
| Insulation Resistance | ≥50MΩ@200VDC(P) ≥10MΩ@100VDC(S) | Dynamic Resistance Fluctuation Balue | ≤35mΩ | |
| Enviromental | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||
LPM-18C -Outline Drawing
