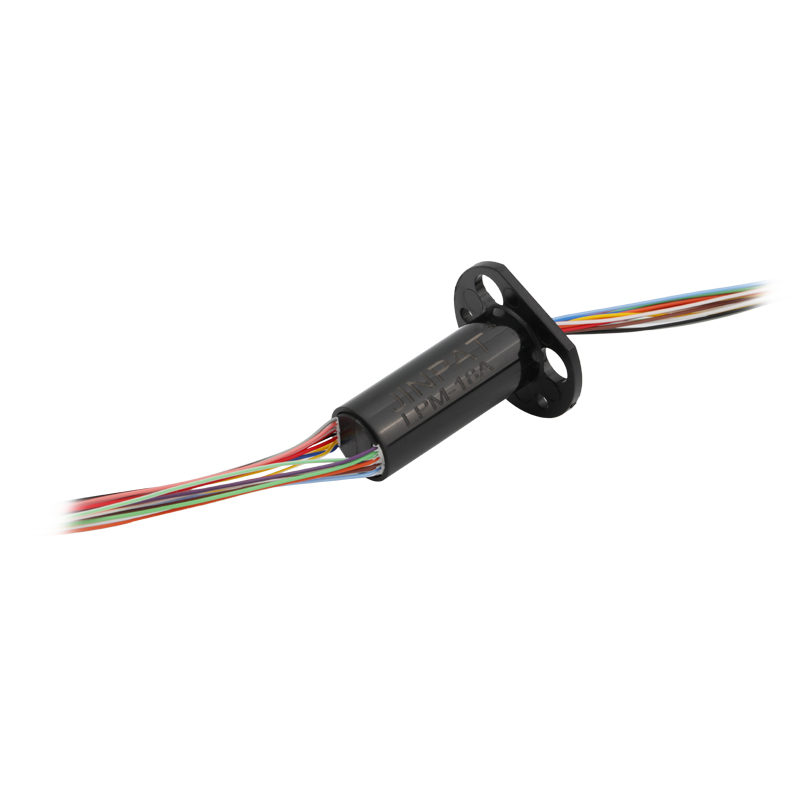

LPM-18A Miniature Capsule Slip Rings
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
The LPM-18A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. The use of gold on gold contacts assures long life, low noise, minimal interference between circuits, and low contact resistance.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 18CKT | Working Speed | 0~300rpm |
| Detail | 12X1A(You can go through 2A under certain circumstances ) | Contact Material | Gold to Gold | |
| Rating Voltage | 110VAC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥200VAC@50Hz(P) ≥100VAC@50Hz(S) | Lead Wire Length | Stator: 250士5mm Rotor: 250士5mm | |
| Insulation Resistance | ≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S) | Dynamic Resistance Fluctuation Balue | ≤35mΩ | |
| Enviromental | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||
LPM-18A -Outline Drawing
