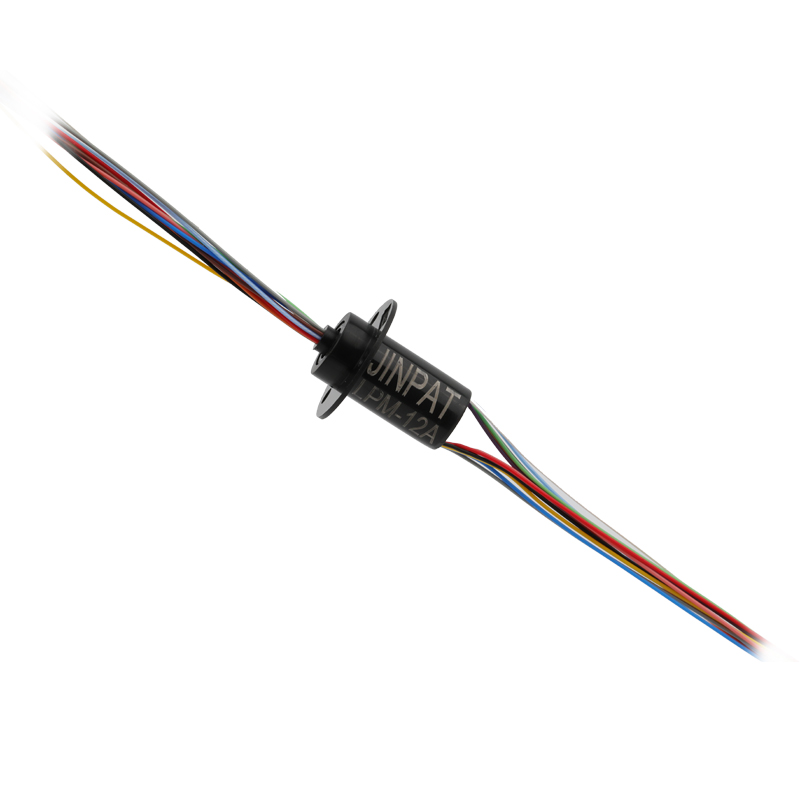

LPM-12A Miniature Capsule Slip Rings

Number of Circuits 12
Current 1-2A
Voltage 240V
Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc
Consult immediately
DetailInstallationReview(0)

LPM-12A   Miniature Capsule Slip Rings

The LPC-12A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-12A provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in 6, 12 circuits model.



Electronic & ElectrucMechanical
CircuitsTotal12CKTWorking Speed0~300rpm
Detail

12X1A(You can go through 2A

under certain circumstances )

Contact MaterialGold to Gold
Rating Voltage110VAC/DCHousing MaterialEngineering plastics
Dielectric Strength

200VAC@50Hz(P)

≥100VAC@50Hz(S)

Lead Wire Length

Stator: 250士5mm

Rotor:   250士5mm

Insulation Resistance

≥500MΩ@200VDC(P)

≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Balue

≤35mΩ

EnviromentalRemarks
Working Temperature-20°C~+60°Application/
Working Humidity

≤60%RH

Other/
IP
IP40Note:"P" stands dor power, "S" stands for signal



LPM-12A -Outline Drawing
