6 wire slip ring

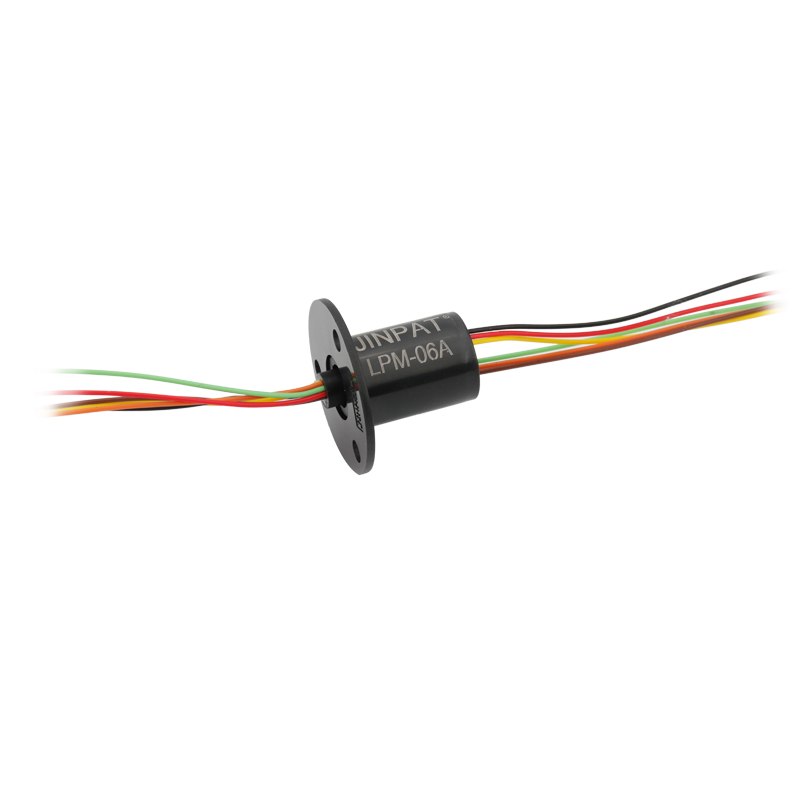

The LPM-06A capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Using a 90° V-groove ring design for each ring, the LPM-06A provides smoother running, lower torque and lower electrical noise than similar slip rings. It is available in 6, 12, 18, 24, 36 to 125 circuit models.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 6CKT | Working Speed | 0~300rpm |
| Detail | 6X1A(You can go through 2A under certain circumstances ) | Contact Material | Gold to Gold | |
| Rating Voltage | 110VAC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥200VAC@50Hz(P) ≥100VAC@50Hz(S) | Lead Wire Length | Stator: 250士5mm Rotor: 250士5mm | |
| Insulation Resistance | ≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S) | Dynamic Resistance Fluctuation Balue | ≤35mΩ | |
| Enviromental | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||
LPM-06A -Outline Drawing
