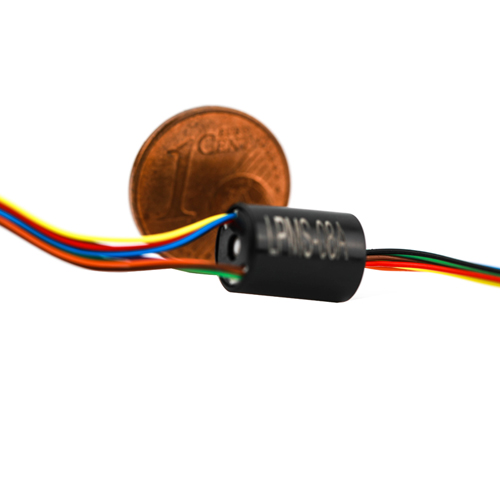

LPMS-08A miniature slip ring

Number of Circuits 8
Current 1A
Voltage 48V
Consult immediately
DetailInstallationReview(0)

This slip ring product adopts unique fiber coating technique that contributes to its low electrical noise and low wear. Besides, it also takes up US military class gold-plated surface processing technique and therefore ensure a long product life of the slip ring. It can transmit up to 30 kinds of signals like USB, HDMI, SDI, Ethernet and RS422, etc. while enabling 360-degree rotation. Customers can choose slip rings of various sizes according to their own needs.




LPMS-08A SY.jpg



Electronic & ElectrucMechanical
CircuitsTotal8 CKTWorking Speed0~300rpm
Detail8X1AContact MaterialGold to Gold
Rating Voltage48V   AC/DCHousing MaterialEngineering plastics
Dielectric Strength

≥100VAC@50Hz

Lead Wire Length

Stator: 250士5mm

Rotor: 250士5mm

Insulation Resistance

≥50MΩ@100VDC

Dynamic Resistance

Fluctuation Balue

≤35mΩ


EnviromentalRemarks
Working Temperature-20°C~+60°Application/
Working Humidity

≤60%RH

Other/
IP
IP40Note:"P" stands dor power, "S" stands for signal
