LPM-04A Miniature Slip Ring
Description

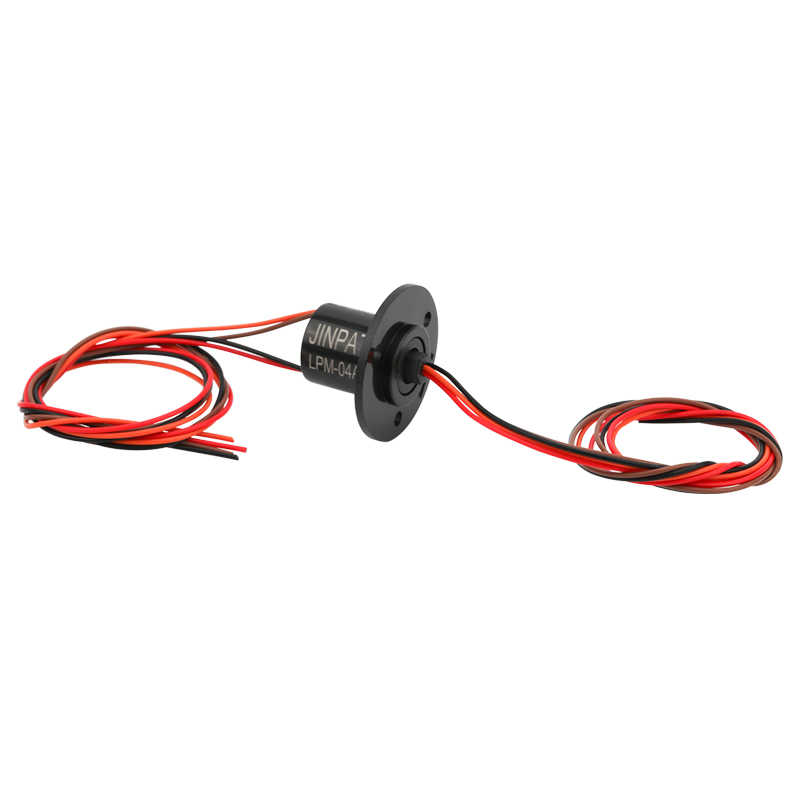

LPM04A Miniature Slip Ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
The LPM-04A miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The LPM-04A allows tremendous flexibility in dealing with system size restrictions. It is available in 1-4 circuit configurations.
Features
1. 4 circuits models
2. 1 amps per circuit , 240 VAC/DC
3. Precision assembly to provide exceptional rotational life
4. Speed up to 300 rpm continuous
5. Gold-Gold contacts
6. Flexible, color-coded, silver-plated, stranded copper lead wire
7. Superior handling of low level control signals
8. Metal housing optional
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 4CKT | Working Speed | 0~300rpm |
| Detail | 4X2A | Contact Material | Gold to Gold | |
| Rating Voltage | 110VAC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥200VAC@50Hz(P) ≥100VAC@50Hz(S) | Lead Wire Length | Stator: 250士5mm Rotor: 250士5mm | |
| Insulation Resistance | ≥500MΩ@200VDC(P) ≥10MΩ@100VDC(S) | Dynamic Resistance Fluctuation Balue | ≤35mΩ | |
| Enviromental | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP40 | Note:"P" stands dor power, "S" stands for signal | ||
LPM-04A-Outline Drawing
