Description
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transfer power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutaor. A slip ring Can improve system performance by simplifying operations and eliminating damage-affected wires dangling from moving joints

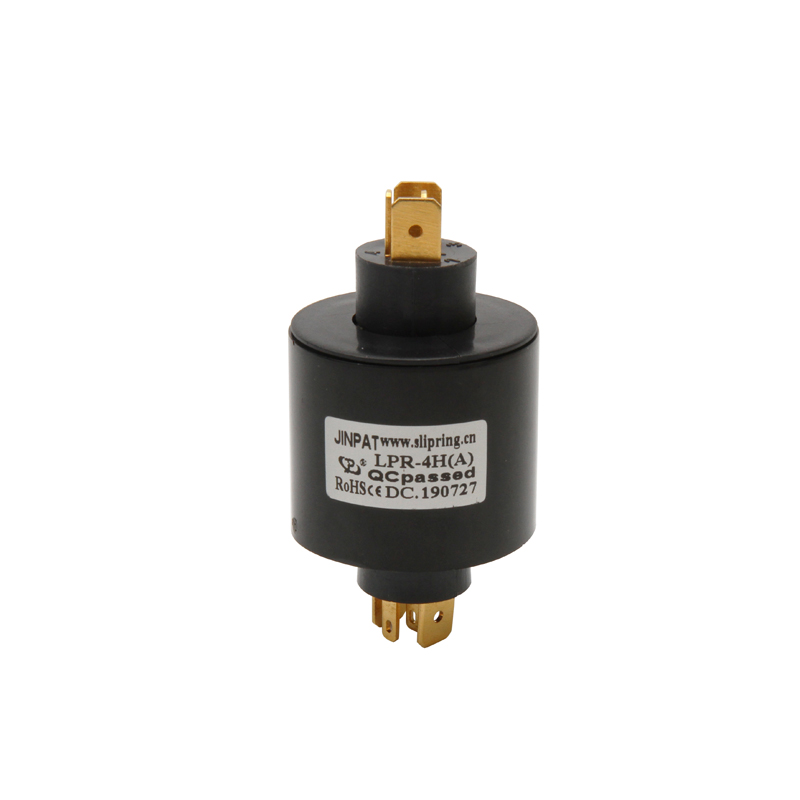

LPR Pin Slip Ring adopts exquisite and innovative design, and replaces wires with pins. This model complies with
the RoHs standards, and is widely used in wind generators, production line equipment, rotating platform, cable reel
and hot roller.
Features:
◎Pin contact instead of wire contact
◎Transmit power and signal
◎Smooth function
◎Low contact resistance
◎Easy to install
Option:
◎Rotating speed
◎Number of circuits
◎Current capacity
◎Housing material
Application:
◎Wind generators
◎Rotating platform
◎Cable reel and hot roller
◎Production line equipment
Electronic & Electric | Mechanical | |||
Circuits | Total | 4 CKT | Working Speed | 0~300rpm |
Detail | 2x5A/2x15A | Contact Material | Gold to Gold | |
Rating Voltage | 0~240V AC/DC | Housing Material | Engineering plastics | |
Dielectric Strength | 500VAC@50Hz | Lead Wire Length | Gold plated pin (8mm) | |
Insulation Resistance | 500MΩ@500VDC | Dynamic Resistance Fluctuation Value | ≤35MΩ | |
Environment | Remarks | |||
Working Temperature | -40°C~+80°C | Application | / | |
Working Humidity | ≤60%RH | Other | / | |
IP | IP40 | Note: "P" stands for power, "S" stands for signal. | ||
