LPC-03P Compact Capsule Slip Ring

quota
copy Link
Facebook
Twitter
LinkedIn
Number of Circuits 3
Current 10A
Voltage 240V
Length(L)(mm) φ22*42.3
Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc.
Consult immediately
DetailInstallationReview(0)

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

.

The LPC-03P06S electrical rotary joints provides 3 circuits at 5 amps and 6 circuits for signal (2 amps per circuit).The LPC-03P provides 3 circuits at 10 amps. This compact power and signal handling design provides unique capability for many challenging applications.


The electrical rotary joints serials provide smoother running, higher design precision, lower torque, lower contact resistance, and lower electrical noise than competitive slip rings.


Features

◆ 3 circuits or more models

◆ 5 amps /2 amps and 10 amps /2 amps circuits combinations

◆ Speed up to 300 rpm continuous

◆ Gold-gold contacts

◆ Color-coded, silver-plated insulated lead wires

◆ Longer lead wire available

◆ Compatible with data bus protocols

◆ Transfers analog and digital signals

◆ Sealed units are available


Advantages

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Quick shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability

◆ Addition of special components

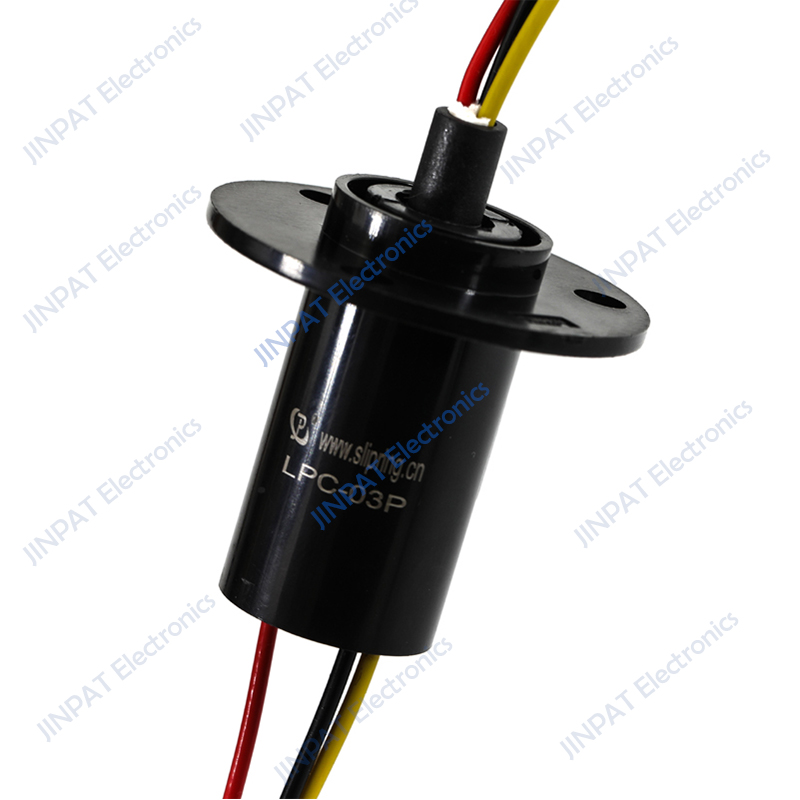

LPC-03P slipring .jpg

Electronic & Electric

Mechanical

Circuits

Total

3 CKT

Working Speed


0~300rpm

Detail

3x10A

Contact Material

Gold to Gold

Rating Voltage

0~240V AC/DC

Housing Material

Engineering plastics

Dielectric Strength

≥500VAC@50Hz(P) ≥100VAC@50Hz(S)

Lead Wire Length

Stator:250±5mm   Rotor:250±5mm

Insulation Resistance

≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Value

≤35mΩ

Environment

Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

IP40

Note: "P" stands for power, "S" stands for signal.
