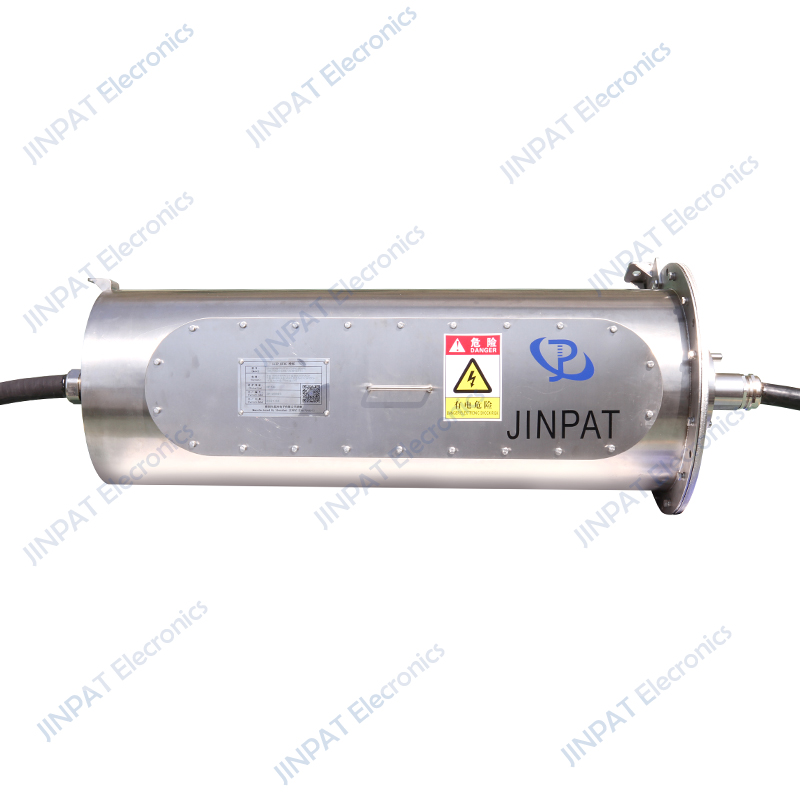

LPA000-0780-0740-0915PE-0705PE-08S-FO12,High voltage high power slip ring, especially designed for new energy mining vehicles. IP56, excellent impact-endurance and vibration-endurance. Integrates multi-channel signal module and optical module with 12 multi-mode optical channels. Fulfills various requirements of modern construction machines.
Significance:
1. To enhance the technology standard of slip ring for mining equipment.
2. This slip ring has gone through high sealing pressure test. Provides precious experience for enhancing wire sealing.
3. Provide practical and powerful slip ring solutions for the electric oil drilling system.
Technical Breakthrough:
1. Enable a reliable 360-degree rotary high voltage transmission in a compact structure.
2. Rid of sealing problems caused by wire leads going through drill rod.
3. Anti-explosion features.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 44CKT | Working Speed | 0~10RPM |
| Detail | 9x100A+4x55A+9 x25A+5x15A +4xsignal+12xFO | A hole diameter | / | |
| Rating Voltage | 3200VAC/240AC/24VDC | Contact Material | High-end Copper Graphite/ Precious Metal | |
| Dielectric Strength | 7000VAC@50Hz(P) 300VAC@50Hz(S) | Housing | Stainless steel 316 | |
| Insulation Resistance | ≥1000MΩ@1000VDC(P) ≥100MΩ300VDC(S) | Lead Wire Length | Stator:(undetermined) Rotor:3.6m | |
| Environment | Remarks | |||
| Working Temperature | -18°C~+45°C | Application | Marine Crane | |
| Working Humidity | ≥100%RH | |||
| IP | IP56 | Other | / | |
For more details of this slip ring product, please contact JINPAT.
We will bring you a satisfactory custom solution!
