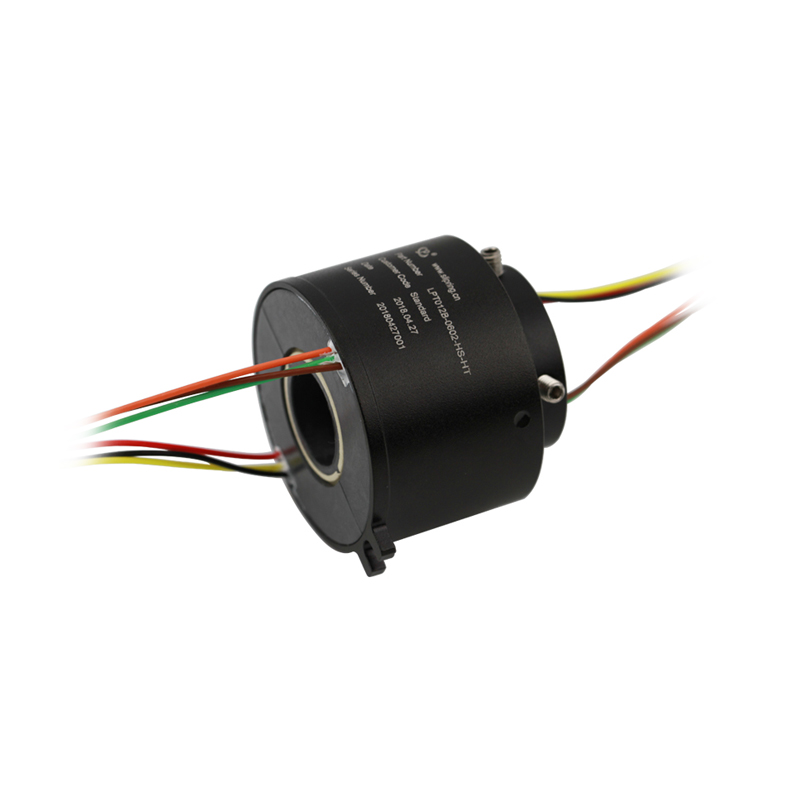

LPT012B-0602-HS-HT-Through-bore Slip Rings
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 6CKT | Working Speed | 0~2000rpm |
| Detail | 6X2A | Inner Diameter | Φ12.7mm | |
| Rating Voltage | 240VAC | Contact Material | Gold-Gold | |
| Dielectric Strength | 500VAC@50Hz | Housing Material | Engineering plastic | |
| Insulation Resistance | ≥300MΩ@300VDC | Lead Wire Length | Stator:300mm Rotor:300mm | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+125°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP | IP50 | Note:"P" stands dor power, "S" stands for signal | ||
LPT012B-0602-HS-HT-Outline Drawing
Related Products
JINPAT's Independently Developed Production Equipment
Provide quality assurance for slip rings!
- Machining Equipment
- CNC Test Equipment
- Environmental Testing Equipment
- High-Low Temperature Test Equipment
- Machining Equipment
- Slip Ring Life Test Equipment
What is large current slip ring?
Large current slip ring is a slip rings can transmitting large power/high current from a stationary part to a rotating part, preserving and isolating the electrical connection. Moflon's high current electric slip rings are high performance, low-cost alternatives to electric slip rings. Because they can function as rotary electrical connectors when high current is required, they are especially well suited for use in heating elements.
Thanks to our unique channeled brush technology, the contact pressure between the slip ring’s brushes and rotor are greatly reduced. This, coupled with multiple brush contact points, greatly extends working life and allows these devices to be used on continuously operating machinery.
Havn't found standard size of large current slip rings to fit my application?
1) View "Customized Solutions", you can find more large current slip rings solutions.
2) Customize your dimension for large current slip rings and Contact us : sales@electricslipring.com
