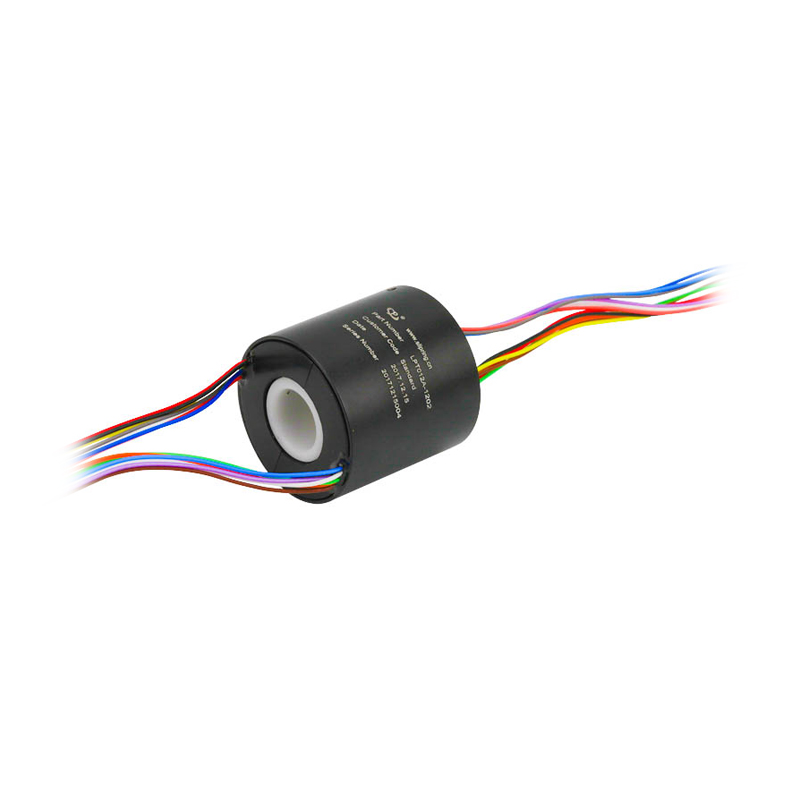

LPT012A-1202-Through-bore Slip Rings
Slip rings can be used in any electromechanical system that requires unconstrained, continuous rotation while transferring power or data from a stationary structure to a rotating one. Slip rings are also referred to as rotating electrical interfaces, collectors, rotators or commutators. Slip rings can improve system performance by simplifying operation and eliminating easily damaged wires hanging from movable joints.
This slip ring is a high life, high speed slip ring that can be used in reel-to-reel equipment.
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 12CKT | Working Speed | 0~300rpm |
| Detail | 12X2A | Inner Diameter | Φ12.7mm | |
| Rating Voltage | 240VAC/DC | Contact Material | Precious Metal | |
| Dielectric Strength | 500VAC@50Hz | Housing Material | Aluminum Alloy | |
| Insulation Resistance | ≥300MΩ@500VDC | Lead Wire Length | Stator:300mm Rotor:300mm | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+60° | Other | / | |
| Working Humidity | ≤60%RH | |||
LPT012A-1202-Outline Drawing
