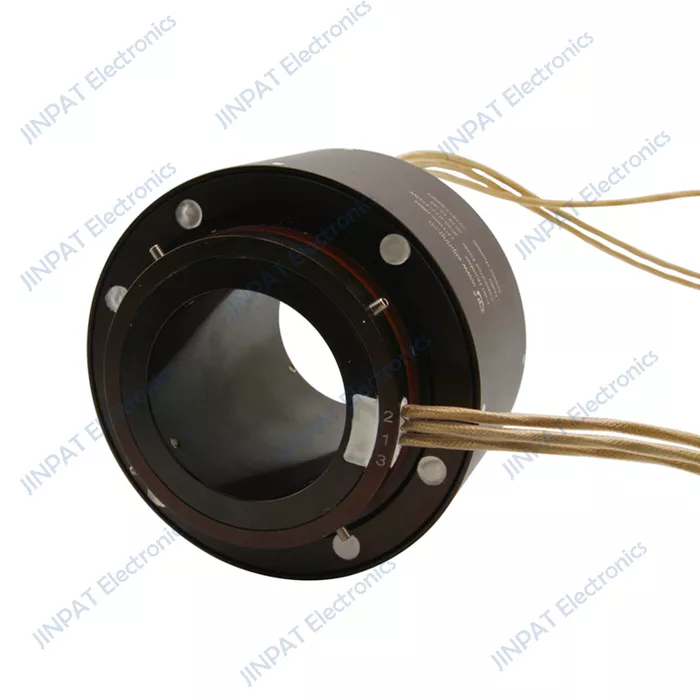

LPT009-1802-HS Through-bore Slip Rings
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 18CKT | Working Speed | 0~300rpm |
| Detail | 18X2A | Inner Diameter | Φ9.5mm | |
| Rating Voltage | 240VAC | Contact Material | Gold to Gold | |
| Dielectric Strength | 500VAC@50Hz | Housing Material | Aluminum Alloy | |
| Insulation Resistance | ≥500MΩ@500VDC | Lead Wire Length | Stator:400mm Rotor:400mm | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+60° | Application | / | |
| Working Humidity | ≤60%RH | |||
| IP | IP44(Horizontal insallation) | Other | / | |
LPT009-1802-HS-Outline Drawing
