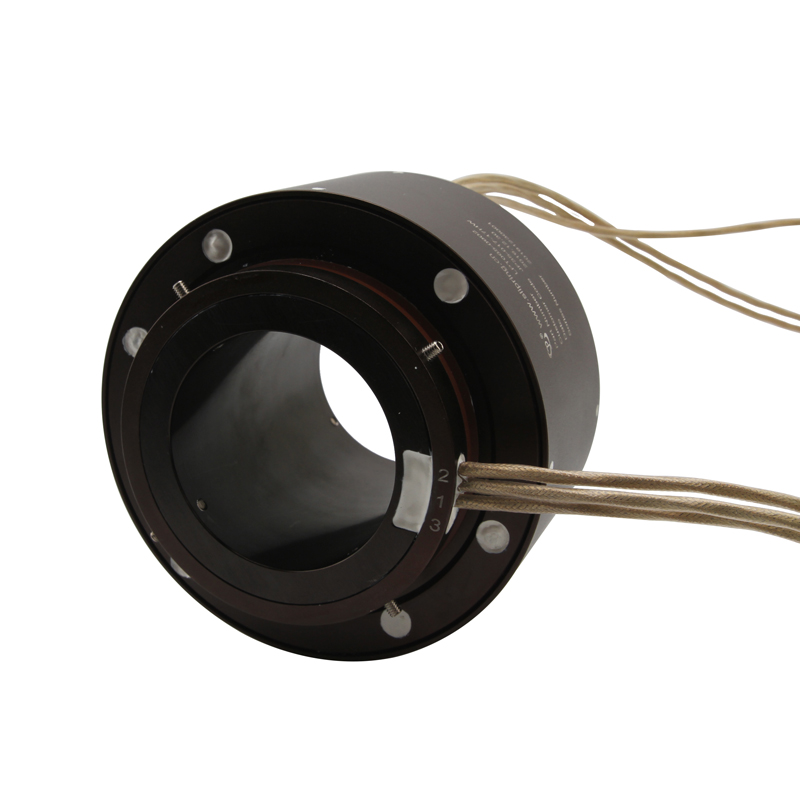

LPT180-Through-bore Slip Rings

share
copy Link
Facebook
X
LinkedIn
Current 5A/Signal/10A/15A
Voltage 240VAC/DC
Inner Diameter Φ180mm
Consult immediately
DetailInstallationReview(0)

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.



Electronic & ElectrucMechanical
CircuitsTotal6CKTWorking Speed0~300rpm
Detail6X5AInner DiameterΦ180mm
Rating Voltage240VAC/ DCContact MaterialPrecious Metal
Dielectric Strength1000VAC@50HzHousing MaterialAluminum Alloy
Insulation Resistance≥500MΩ@500VDCLead Wire Length

Stator:300mm

Rotor:300mm

EnvironmentRemarks
Working Temperature-20°C~+60°Other/



LPT180-0605-Outline Drawing



LPT180-0610-Outline Drawing



LPT180-0615-Outline Drawing



LPT180-1205-Outline Drawing




LPT180-1210-Outline Drawing



LPT180-1215-Outline Drawing



LPT180-1805-Outline Drawing




LPT180-1810-Outline Drawing



LPT180-1815-Outline Drawing




LPT180-2405-Outline Drawing



LPT180-2410-Outline Drawing



LPT180-2415-Outline Drawing
