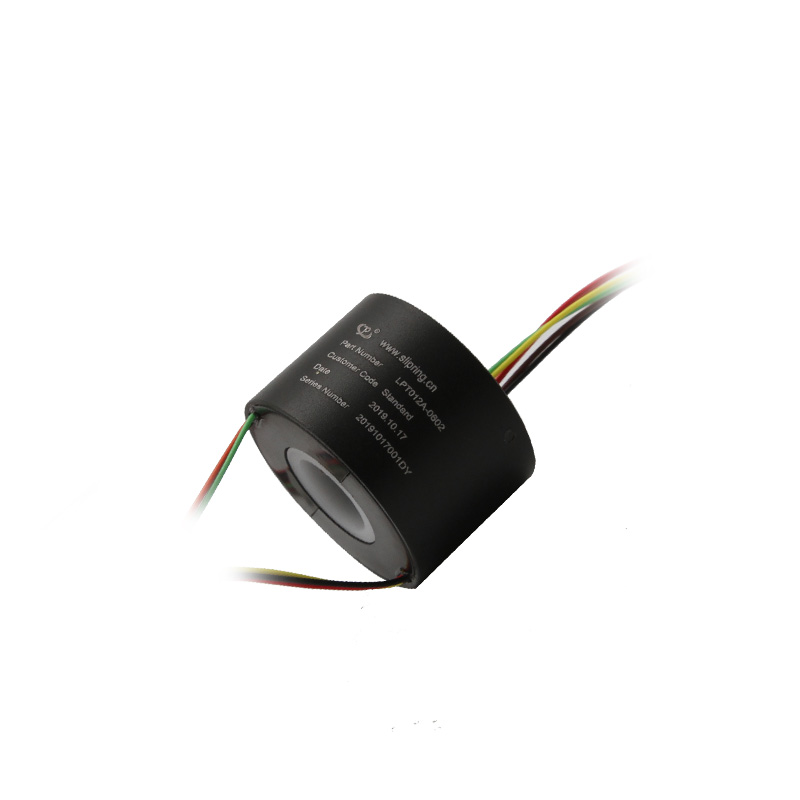

LPT120-Through-bore Slip Rings
share
DetailInstallationReview(0)
LPT120-Through-bore Slip Rings
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector,
| Electronic & Electruc | Mechanical | |||
| Circuits | Total | 6CKT | Working Speed | 0~300rp |
| Detail | 6X5A | Inner Diameter | Φ120mm | |
| Rating Voltage | 240VAC/ DC | Contact Material | Precious Metal | |
| Dielectric Strength | 1000VAC@50Hz | Housing Material | Aluminum Alloy | |
| Insulation Resistance | ≥500MΩ@500VDC | Lead Wire Length | Stator:300mm Rotor:300mm | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+60° | Other | / | |
| Working Humidity | ≤60%RH | |||
LPT120-0605-Outline Drawing
LPT120-0610-Outline Drawing
LPT120-0615-Outline Drawing
LPT120-1205-Outline Drawing
LPT120-1210-Outline Drawing
LPT120-1215-Outline Drawing
LPT120-1805-Outline Drawing
LPT120-1810-Outline Drawing
LPT120-1815-Outline Drawing
LPT120-2405-Outline Drawing
LPT120-2410-Outline Drawing
LPT120-2415-Outline Drawing
Havn't found standard size of large current slip rings to fit my application?
1) View "Customized Solutions", you can find more large current slip rings solutions.
2) Customize your dimension for large current slip rings and Contact us : sales@electricslipring.com
