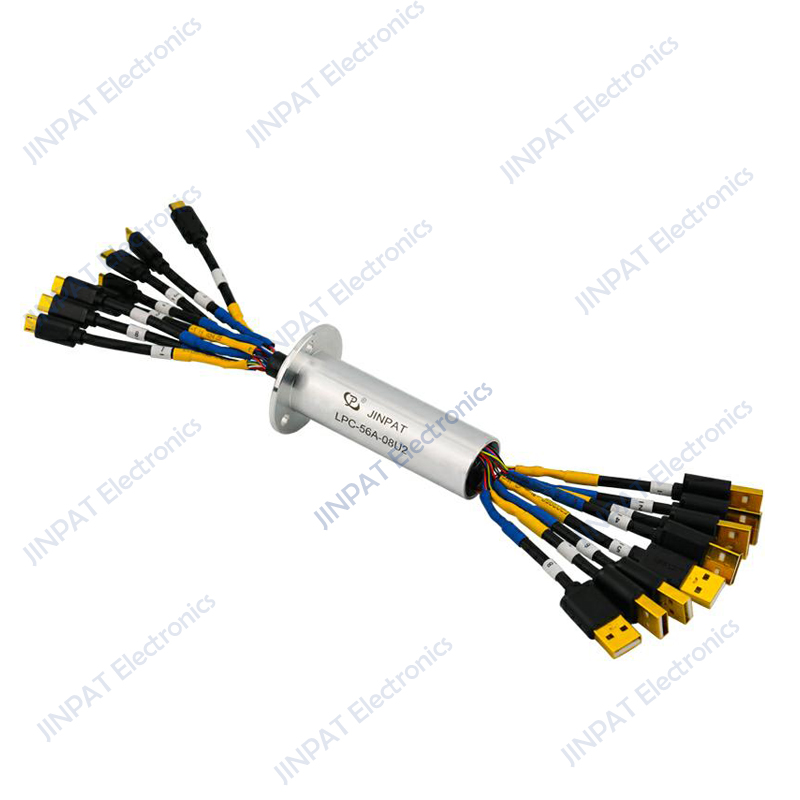

USB 2.0 Slip Ring

Number of Circuits 40CKT
Insulation Resistance ≥10MΩ@100VDC
Voltage 0~48VAC/DC
Consult immediately
Parameters
Number of Circuits
40CKT
Insulation Resistance
≥10MΩ@100VDC
Voltage
0~48VAC/DC
I know
DetailInstallationReview(0)

   USB Slip Rings-2.0

USB was designed to standardize the connection of peripherals to personal computers. It has largely replaced interfaces such as serial ports and parallel ports, and has become commonplace on a wide range of communication devices like PC and portable devices. USB also gradually finds its way to machine vision, data collection, photographic equipment, digital television and recreational machine, etc.

JINPAT USB slip rings are specially designed for USB signal transmission. JINPAT USB slip ring features sufficient signal channels and stable signal transmission. This series includes slip rings with USB 2.0 connector and with USB 3.0 connector. JINPAT USB slip ring is an optimal solution for transmitting large volume of data at high speed between electrical components.

JINPAT USB Slip Rings Advantages:
High transmission, USB 3.0 theoretical transmission rate up 5.0Gbps, measured transmission rate>2.0Gbps.
Electrical transmission and electro-optical transmission optional
Able to integrate many signal channels. Max channel capacity: 2 USB3.0 channels and 12 USB2.0 channels.
Exquisite contact materials ensure low electrical noise and super long service life.
Various kinds of connector to choose from.



Electronic & ElectrucMechanical
CircuitsTotal40   CKTWorking Speed0~300rpm
Detail

8xUSB2.0

Contact Material

Gold to Gold

Rating Voltage0~48VAC/DCHousing MaterialAluminum Alloy
Dielectric Strength

≥1000VAC@50Hz

Lead Wire Length

Stator: 1000mm

Rotor: 1000mm

Insulation Resistance

≥100MΩ@100VDC

Dynamic Resistance

Fluctuation Balue

≤35mΩ

EnvironmentRemarks
Working Temperature-20°C~+60°Application/
Working Humidity

≤60%RH

Other/
IP
IP40Note:"P" stands dor power, "S" stands for signal





USB Slip Rings-2.0 -Outline Drawing
