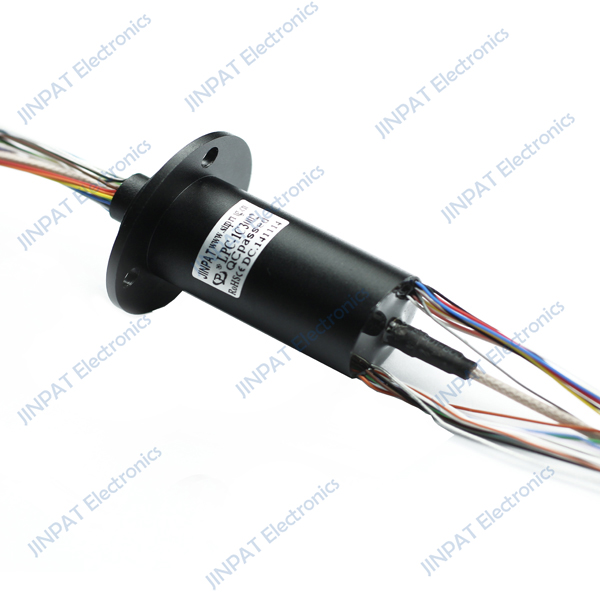

LPC-1C3002 Integrated Slip Ring

Consult immediately
DetailInstallationReview(0)

LPC-1C3002 is a hybrid high frequency and electrical slip ring with an outer diameter of 24.8mm and a length of 62.3mm. This high frequency coaxial rotary joint is optional with and without an elbow design which offers more flexibility to fit in different platform. The slip ring features high design precision, low contact resistance, low torque, long service life and reliable operation. This slip ring   is especially fit for small rotary systems that transmit weak control signals. It is compatible with data bus protocal and SDI signals.







Electronic & Electric

Mechanical

Circuits

Total

30CKT

Working Speed


0~300rpm

Detail

30x2A

Dynamic Resistance Fluctuation Value

≤35MΩ

Rating Voltage

0~240V AC/DC

Contact Material

Gold to Gold

Dielectric Strength

≥500VAC@50Hz(P) ≥100VAC@50Hz(S)

Housing Material

Aluminum Alloy

Insulation Resistance

≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Lead Wire Length

Stator:250±5mm   Rotor:250±5mm

Environment

Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IPIP40Note: "P" stands for power, "S" stands for signal.
Coaxial Parameter
Connect Model
/Insertion Loss-WOW<1°
Specific Impedance50ΩFrequency range
0~3GHz
Insertion Loss<2.0dBHousing MaterialBrass
Insertion Loss-WOW<0.1dBContact MaterialPrecious Metal
VSWR<1.6Cable sizeRG316
VSWR-WOW<0.1Cable Length

Rotor:250±5mm

Stator:250±5mm
