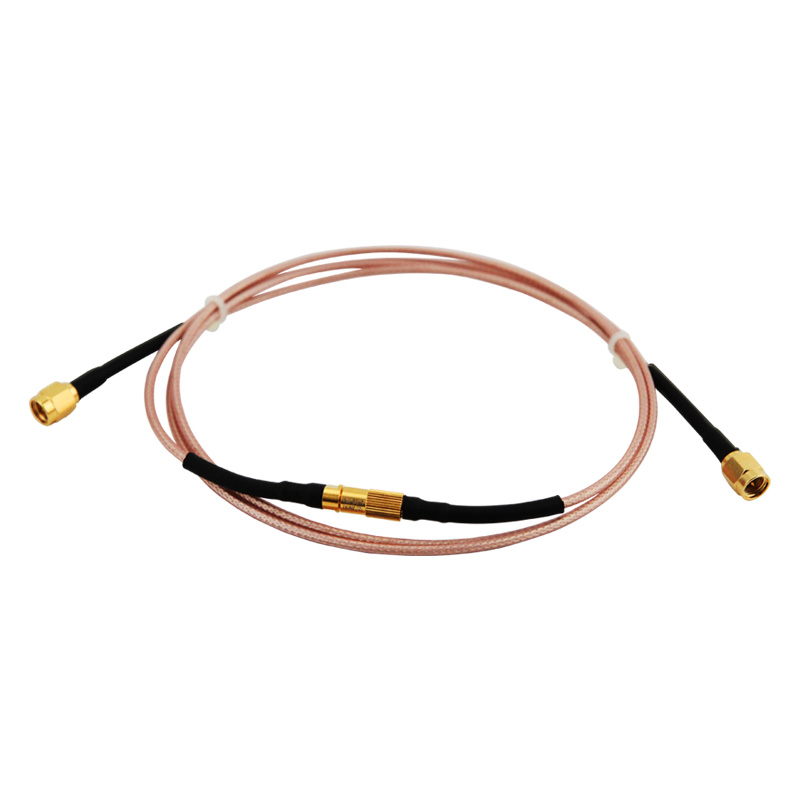

LPCC-01B Hign Frequency slip ring

Optional Integrated transmission of high frequency signal and power signal or other signals
Consult immediately
DetailInstallationReview(0)

JINPAT LPCC High Frequency Slip Ring Series.Basing on their different characteristic impedances, the slip rings can transmit HDMI signals and RF signals. The LPCC series can be integrated with the LPC-T series. Slip ring LPCC-01A is a standard coaxial connector. This slip ring model features a compact design, super long life and free-maintainence. There no need to apply lubricants. Able to transmit analog signals and high speed digital signals.




LPCC-01B外形图 (1).jpg




Specifications
Interface TpeSMA/MCX/SMB/N/other

Axial Load On Interface,Max

±2N

Frequenc Range

DC-6GHzRadial Load On Interface,Max.±2N
Impedance

50Ohm

Body MaterialBrass
Cable Length250mm/250mm(or As Per Order)Insulator MaterialPTFE
VSWR,Max.

1.4

MarkingLaser marking
vswr wow0.1
Weight,approx

11.5g

Insertion Loss,Max0.3dB(Without Cable) 1.6dB@250/250mmIP Protection LevelIP40
Insertion loss WOW

0.1dB

Operation Temperature-45~+80°C
Peak Power,Max.800WStorage Temperature-55~+80°C
Average Power,Max.5WHumidit(Operation)95%
Phase WOWHumidit(St)95%
Rotating Speed,Max.100rpmStarting Torque0.5Ncm Max
Life time,Min.
2 Million RevolutionsContinuous Rotational Torque0.5Ncm Max
