LPT038-Through-bore Slip Rings

share
copy Link
Facebook
X
LinkedIn
Current 5A/Signal/10A/15A
Voltage 240V/DC/380VAC/DC
Inner Diameter Φ38.1mm
Consult immediately
DetailInstallationReview(0)

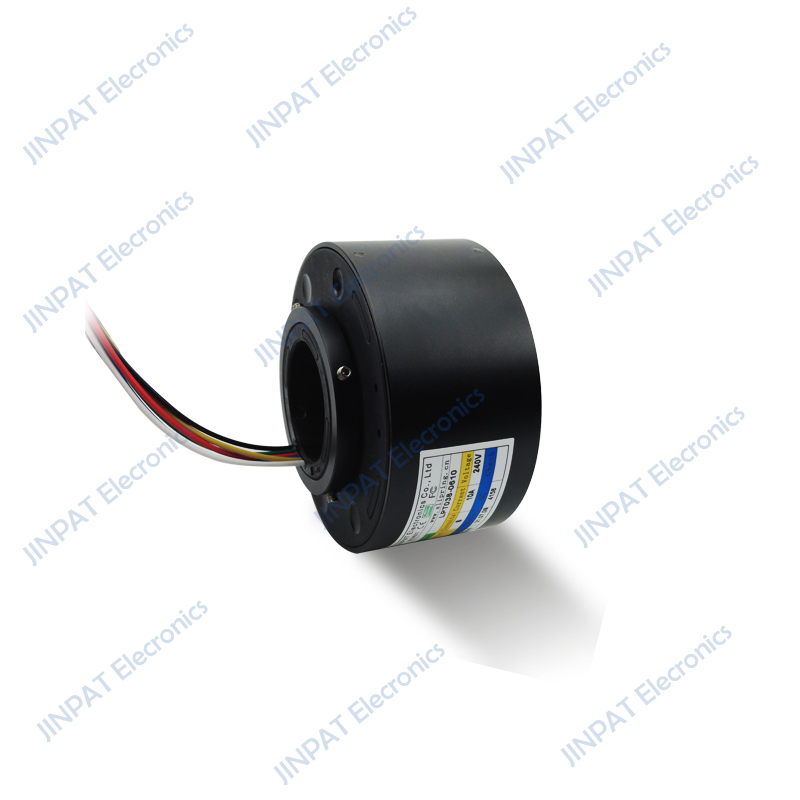

The rotating electrical connectors provides an economical, readily available solution when a compact through bore configuration is required.

This unit provides a 38.1mm through bore for routing hydraulic or pneumatic lines and a compact 86mm outside diameter for minimal space applications. The 15 amps per circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths.




Electronic & ElectrucMechanical
CircuitsTotal6CKTWorking Speed0~300RPM
Detail6X5AInner DiameterΦ38.1mm
Rating Voltage240VAC/ DCContact MaterialPrecious Metal
Dielectric Strength1000VAC@50HzHousing MaterialAluminum Alloy
Insulation Resistance≥500MΩ@500VDCLead Wire Length

Stator:300mm

Rotor:300mm

EnvironmentRemarks
Working Temperature-20°C~+60°Other/
Working Humidity≤60%RH



LPT038-0605-Outline Drawing



LPT038-0610-Outline Drawing



LPT038-0615-Outline Drawing




LPT038-1205-Outline Drawing




LPT038-1210-Outline Drawing




LPT038-1215-Outline Drawing




LPT038-1805-Outline Drawing




LPT038-1810-Outline Drawing




LPT038-1815-Outline Drawing



LPT038-2405-Outline Drawing




LPT038-2410-Outline Drawing





LPT038-2415-Outline Drawing
