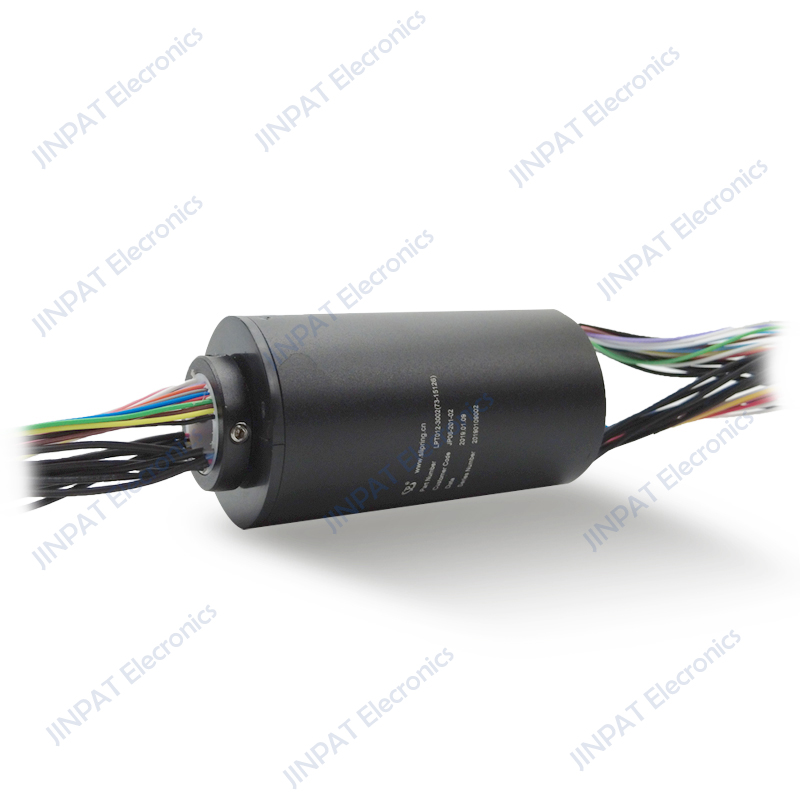

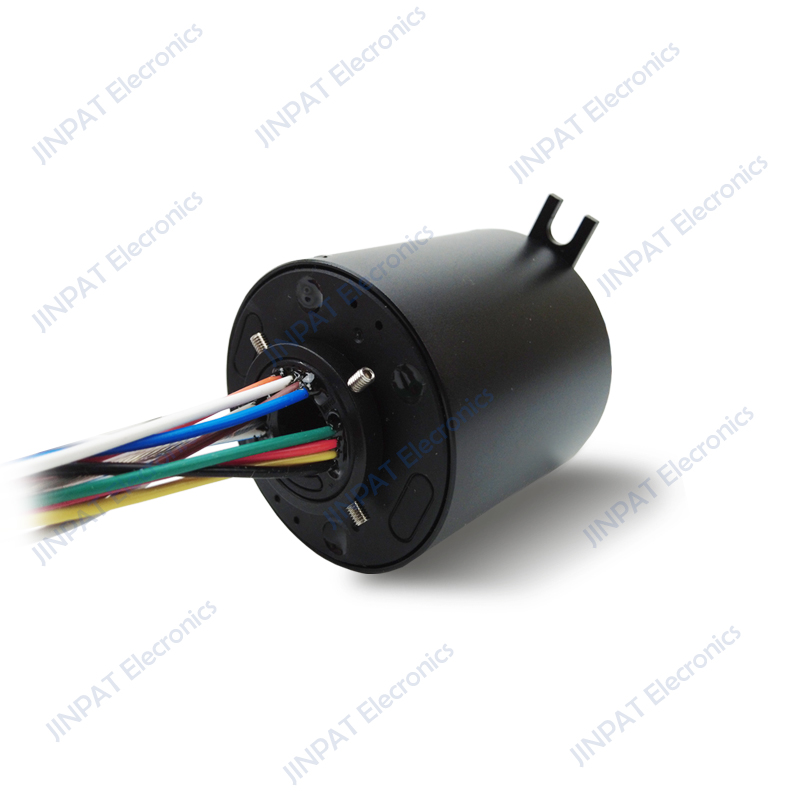

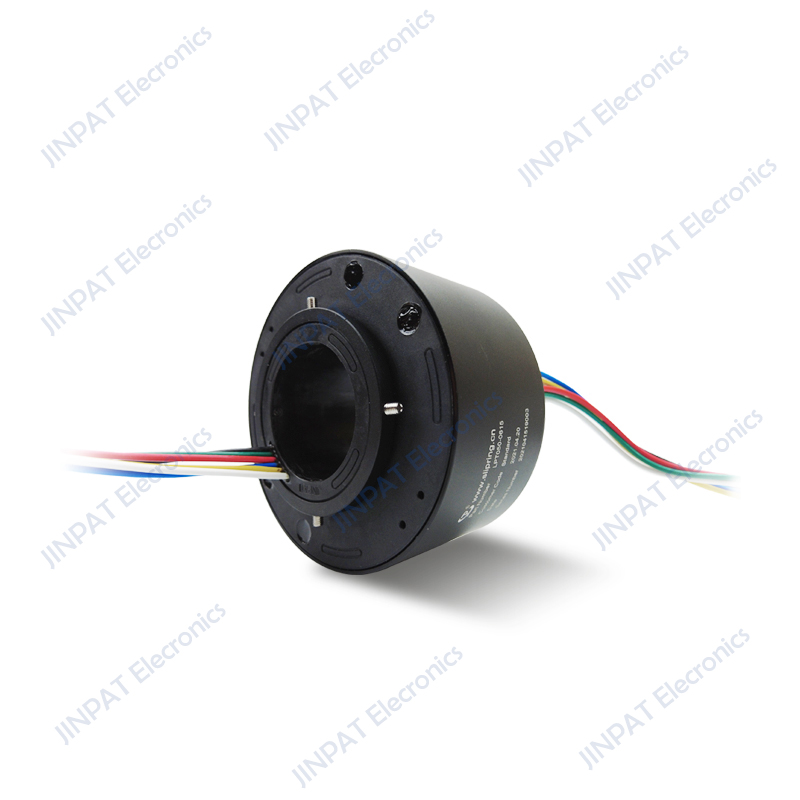

LPT012-Through-bore Slip Rings

copy Link

Facebook

Twitter

Current 5A/Signal/10A

Voltage 240V/DC

Insertion loss ripple ≥500MΩ@500VDC

Dielectric Strength 1000VAC@50Hz

Consult immediately

Parameters

Current

5A/Signal/10A

Voltage

240V/DC

Insertion loss ripple

≥500MΩ@500VDC

Dielectric Strength

1000VAC@50Hz

I know

DetailInstallationReview(0)

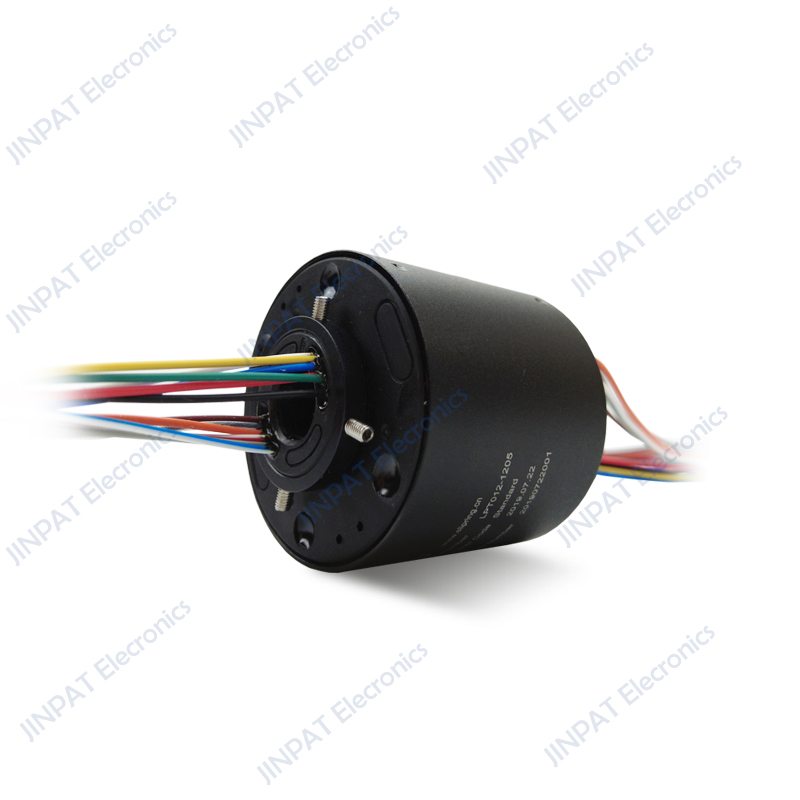

LPT012 Series Through Hole Slip Rings

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotating. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPT012 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 12.7mm through-bore for routing hydraulic or pneumatic lines and a compact 55mm outside diameter for minimal space applications. The 5 amps /circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing length. Similar in design to our very popular LPT012 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, life time operation.

Features

◆ 6, 12, 18 and 24 circuits models

◆ Precious metal contacts

◆ 5 amps rings

◆ Precision ball bearings for long life

◆ Speed up to 500 rpm continuous

◆ Compact size

◆ Sealed units available

◆ Flying leads

◆ Fully compatible with both analog and TTL control level signals

◆ Rugged black anodized aluminum construction

Advantages

◆ Unique signal handling performance with minimal electrical noise

◆ Compact design to fit in the most demanding space constraints

◆ Low torque minimizes system torque budget

◆ Rapid delivery

Main Applications

◆ Packaging / wrapping machinery

◆ Semiconductor handling systems

◆ Industrial machinery

◆ Exhibit Display machinery

◆ Medical equipment

◆ Rotary index tables

◆ Process control equipment

◆ Emergency lighting, robotics palletizing machines,

◆ Heavy equipment turrets or cable reels

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~300RPM
	Detail	6X5A	Inner Diameter	Φ12.7mm
Rating Voltage		240VAC/ DC	Contact Material	Precious Metal
Dielectric Strength		1000VAC@50Hz	Housing Material	Aluminum Alloy
Insulation Resistance		≥500MΩ@500VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+60°	Other	/
Working Humidity		≤60%RH
