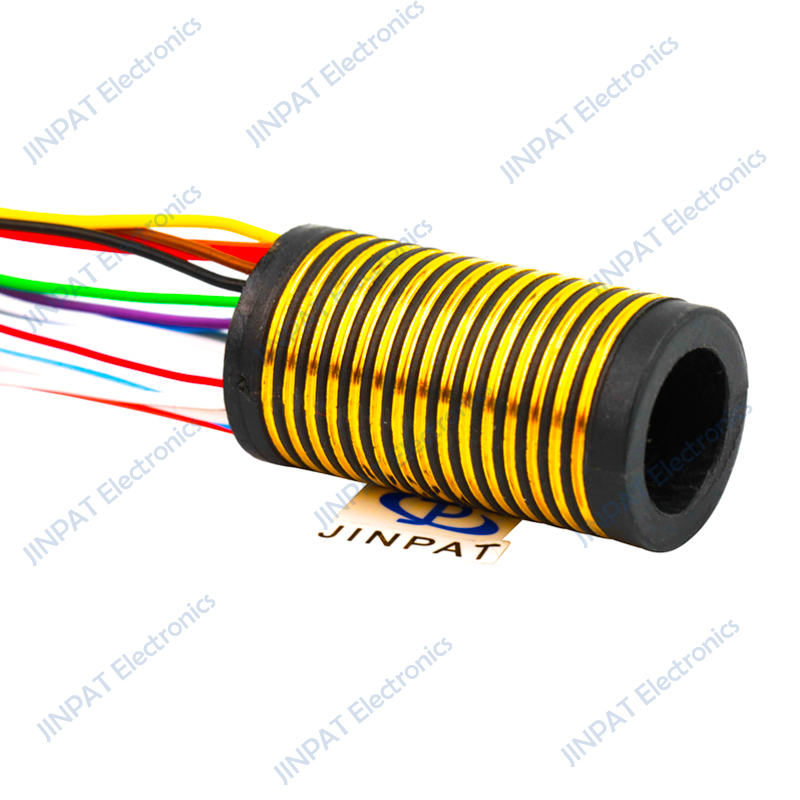

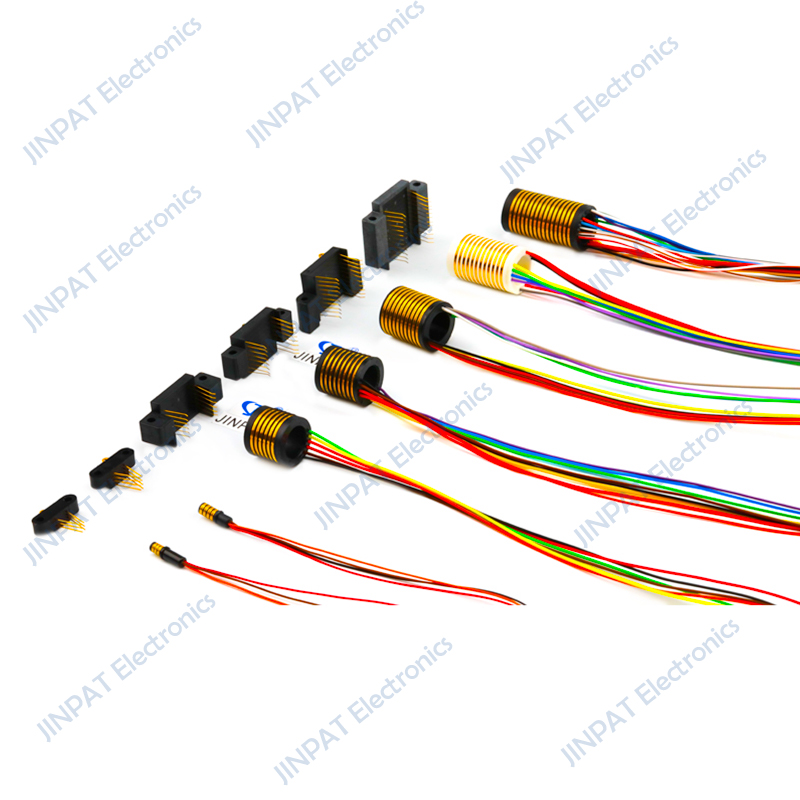

LPS-15 Separate Slip Rings

Number of Circuits 15
Current 1-3A
Voltage 240V
Length(L)(mm) φ9.55×27.6
Optional Speed / circuit number / current / wire length
Consult immediately
DetailInstallationReview(0)

Description:

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanically capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

The LPS-15 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPS-15 provides smoother running, lower torque and lower electrical noise than competitive slip rings.

Features

◆ 15 circuits models

◆ Speed up to 100 rpm continuous

◆ Gold-Gold contacts

◆ 250mm standard lead length

◆ Compatible with data bus protocols

◆ Sealed units are available

◆ Flexible, color-coded, silver-plated, ead wires

◆ Precision ball bearings meet or exceed life requirements for most commercial applications


Advantages

◆ Low torque minimizes system torque budget

◆ Compact design to fit in the most demanding space.

◆ Smooth running

◆ Low electrical noise

◆ Quick shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability




Electronic & Electric

Mechanical

Circuits

Total

15 CKT

Working Speed

0~100rpm

Detail

15x2A

Contact Material

Gold to Gold

Rating Voltage

0~240V AC/DC

Housing Material

Engineering Plastics(black)

Dielectric Strength

≥500VAC@50Hz

Lead Wire Length

Rotor:250±5mm

Stator:Copper strip

Insulation Resistance

≥100MΩ@500VDC

Lead Wire Size

≤35mΩ(Operate at 5 rpm)

Environment

Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

IP00

Note: "P" stands for power, "S" stands for signal.
