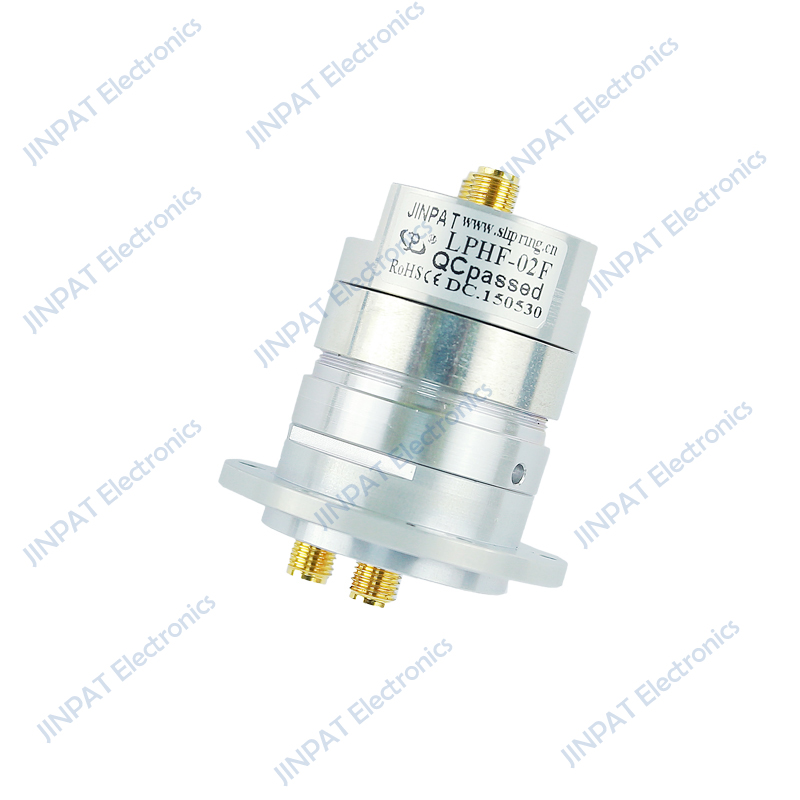

LPHF-02G Hign Frequency rotary joints

share
copy Link
Facebook
X
LinkedIn
Optional Integrated transmission of high frequency signal and power signal or other signals
Consult immediately
DetailInstallationReview(0)

High frequency rotary joints include coaxial rotary joints, waveguide rotary joint, coaxial waveguide rotary joints. They are also known as high frequency slip rings and radio frequency slip rings. High frequency rotary joints are specially designed to transmit high speed serial digital signals like high definition signals, RF signals and microwave signals. The slip ring series support single channel and multi channels transmission of high frequency signals. There are also hybrid solutions that support hybrid transmission of high frequency signals with control signals, communication signals, power signals and fluid medium.










Specifications
ChannelCH1CH2Starting Torque0.05Nm@ roomtemperature
Interface TpeSMA-F（50ohm）SMA-F（50ohm）Continuous Rotational Torque0.05Nm@ roomtemperature
TypeIIRotating Speed,Max.60rpm
Frequenc RangeDC-5GHzDC-5GHzLife Time,Min10 million Revolutions
Peak Power,Max.1000W1000WBody MaterialAluminum alloy
Average Power,Max.60W@4.5GHz10WCase surface finishChromate conversion coat
VSWR,Max

1.2

1.5

Weight,approx0.13kg
VSWR WOW0.05

0.2

IP Protection LevelIP60
Insertion Loss,Max.

0.2dB@DC-2GHz

0.25dB@2-5GHzC

0.3dB@DC-4GHz

0.5dB@4-5GHz

Operation Temperature-45~+80°C

Insertion Loss

WOW

0.05dB

0.15dB

Storage Temperature-55~+85°C

DC capability, max.

(one channel only)

0.5 A, 48 VDC @ fullRF avg. power0.5 A, 24 VDC @ fullRF avg. power

Humidity

（Operation）

95％
Phase WOW0.5deg4.0 deg

Humidity（Storage）

95％
Isolation，min.

50dB




Comment

comment
name
Praise degree
Message：
Upload pictures:
    total 0 Sheet，Only 5 images can be uploaded, each less than 5m.
    Verification code
    submit
    Related Products
    JINPAT's Independently Developed Production Equipment
    Provide quality assurance for slip rings!
    • Machining Equipment
    • CNC Test Equipment
    • Environmental Testing Equipment
    • High-Low Temperature Test Equipment
    • Machining Equipment
    • Slip Ring Life Test Equipment
