This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.
It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s a key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

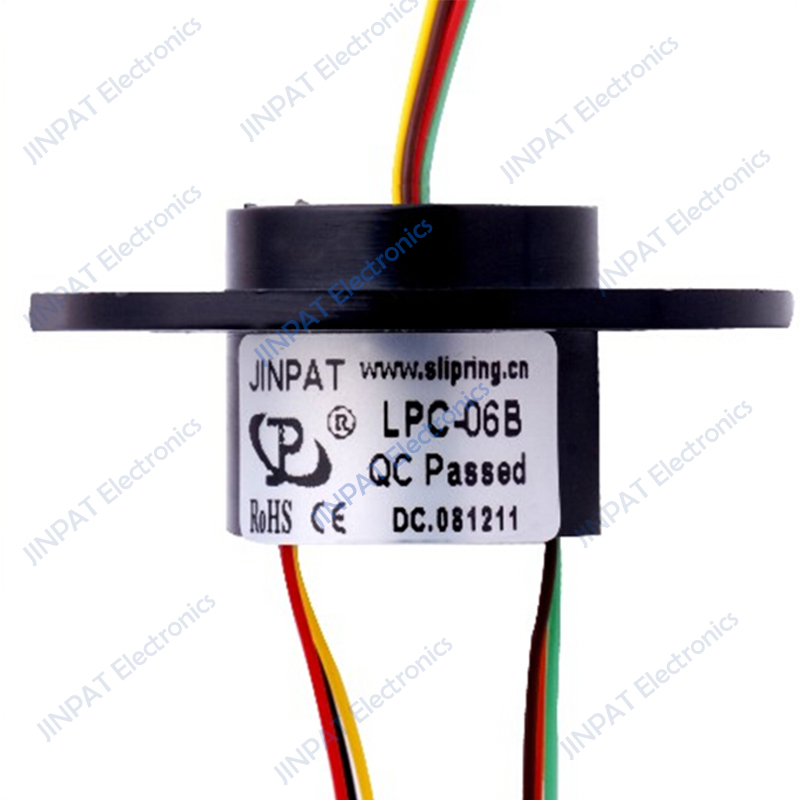

The LPC-06B slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Using a 90° V-groove ring design for each ring, the LPC-06B provides smoother running, lower torque and lower electrical noise than competitive slip rings. It is available in1- 6 circuit models.
◆ 6 circuits models
◆ 2 amps per circuit , 240 VAC /DC.
◆ Precision ball bearings meet or exceed life requirements for most commercial applications
◆ Speed up to 300 rpm continuous
◆ Gold- gold contacts
◆ Compatible with data bus protocols
◆ Sealed units are available
◆ Flexible, color-coded, silver-plated lead wires
◆ Transfer analog and digital signals
◆ Also available with 5 and 10 amps power rings combined with 2 amps rings.
◆ Low torque minimizes system torque budget
◆ Compact design to fit in the most demanding space.
◆ Smooth running
◆ Low electrical noise
◆ Quick shipment per your urgent requirement
◆ 360°continuous rotation
◆ High bandwidth transfer capability
Electronic & Electric
Gold to Gold
Lead Wire Length
Note: "P" stands for power, "S" stands for signal.
