LPC-06A Capsule Slip Ring

Number of Circuits 6
Current 2A
Voltage 240V
Length(L)(mm) φ22*19.2
Optional It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc.
Consult immediately
Parameters
Number of Circuits
6
Current
2A
Voltage
240V
Length(L)(mm)
φ22*19.2
Optional
It can provide high speed, long life, high protection slip ring customization, and integrate a variety of signals, such as Ethernet, USB, RS, LVDS, CANbus, FireWire, SDI, HDMI, etc.
I know
DetailReview(0)Installation

Description:

This slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called rotary electrical interface, commutator, collector, rotary systems slip rings.

The LPC-06A capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-06A provides smoother running, lower torque and lower electrical noise than   similar slip rings. It is available in 6, 12, 18, 24, 36 to 125 circuit models.


Features

◆ 2 amps per circuit , 240 VAC/VDC

◆ Gold-Gold contacts ensure long life time

◆ Compatible with data bus protocols

◆ Sealed units are available

◆ Flexible, color-coded, silver-plated lead wires

◆ Transferring analog and digital signals

◆ Structural flange on the housing

◆ Also available at 5A and 10A power rings combined with 2 amps rings.


Advantages

◆ Low torque minimizes system torque budget

◆ Compact package.

◆ Smooth running

◆ Low electrical noise

◆ Prompt shipment per your urgent requirement

◆ 360°continuous rotation

◆ High bandwidth transfer capability

◆ Addition of special components

◆ Working speed would be up to 300rpm or higher

◆ Transfer analoge and digital signals

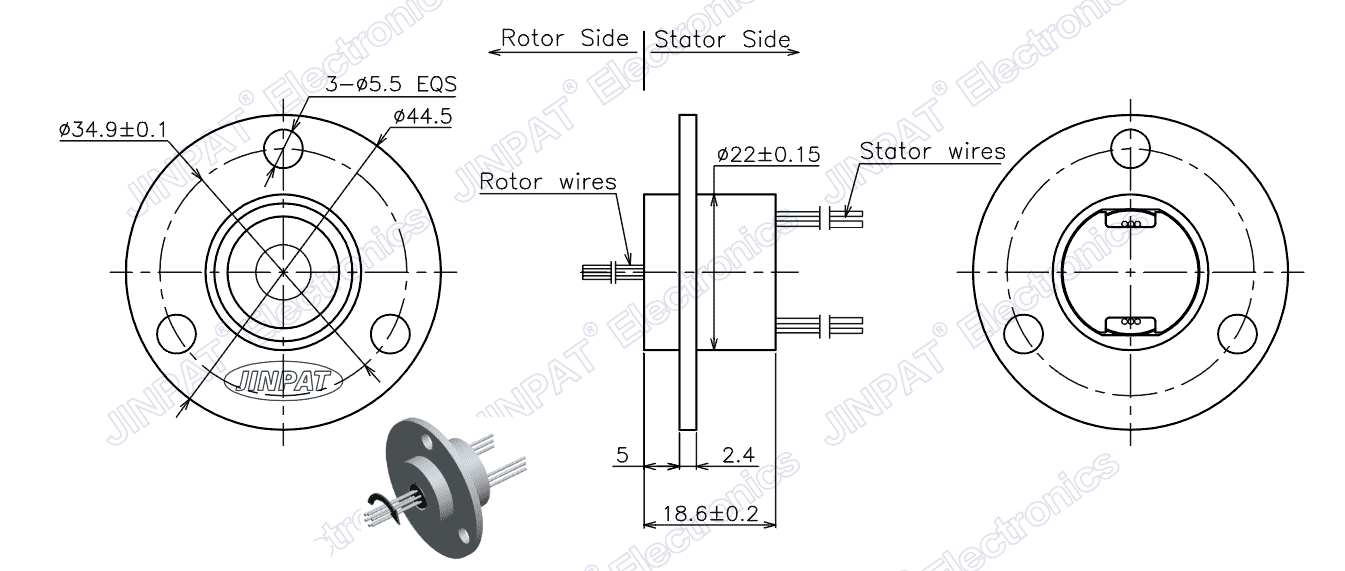

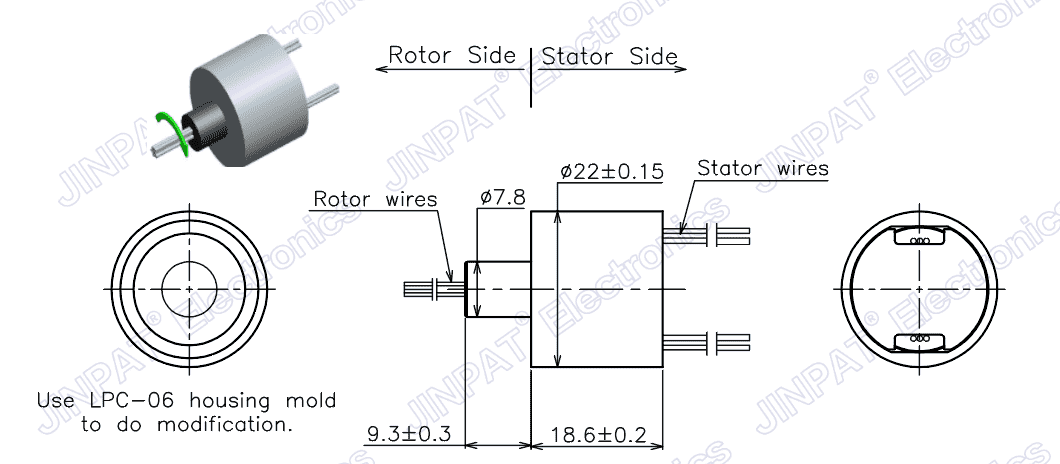

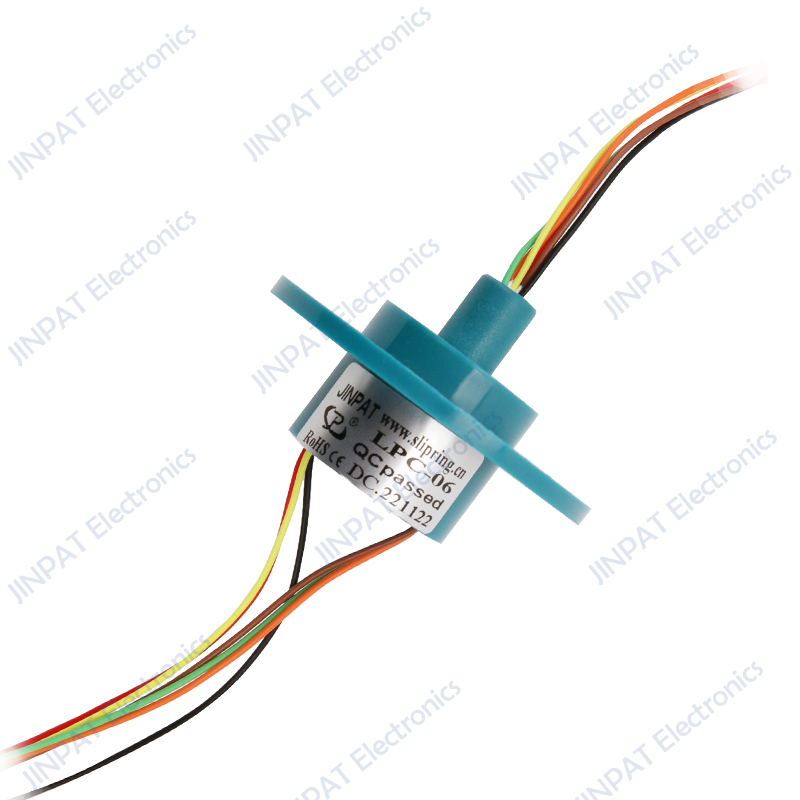

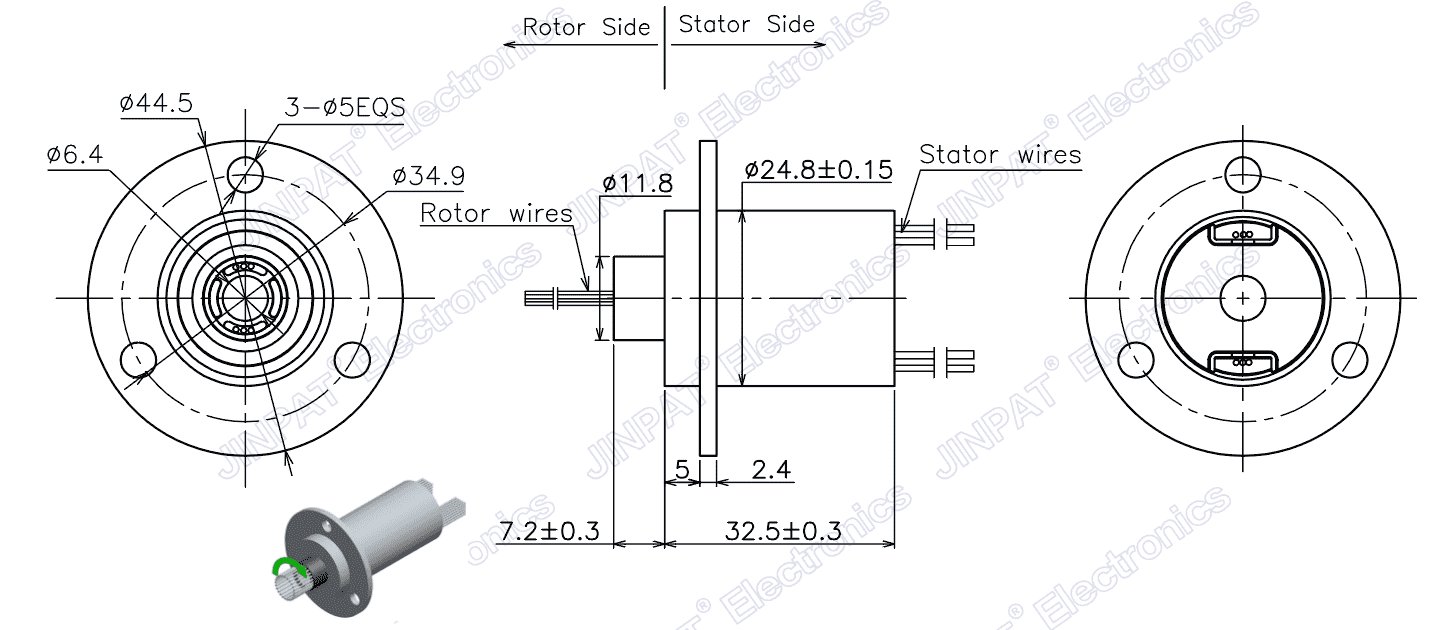

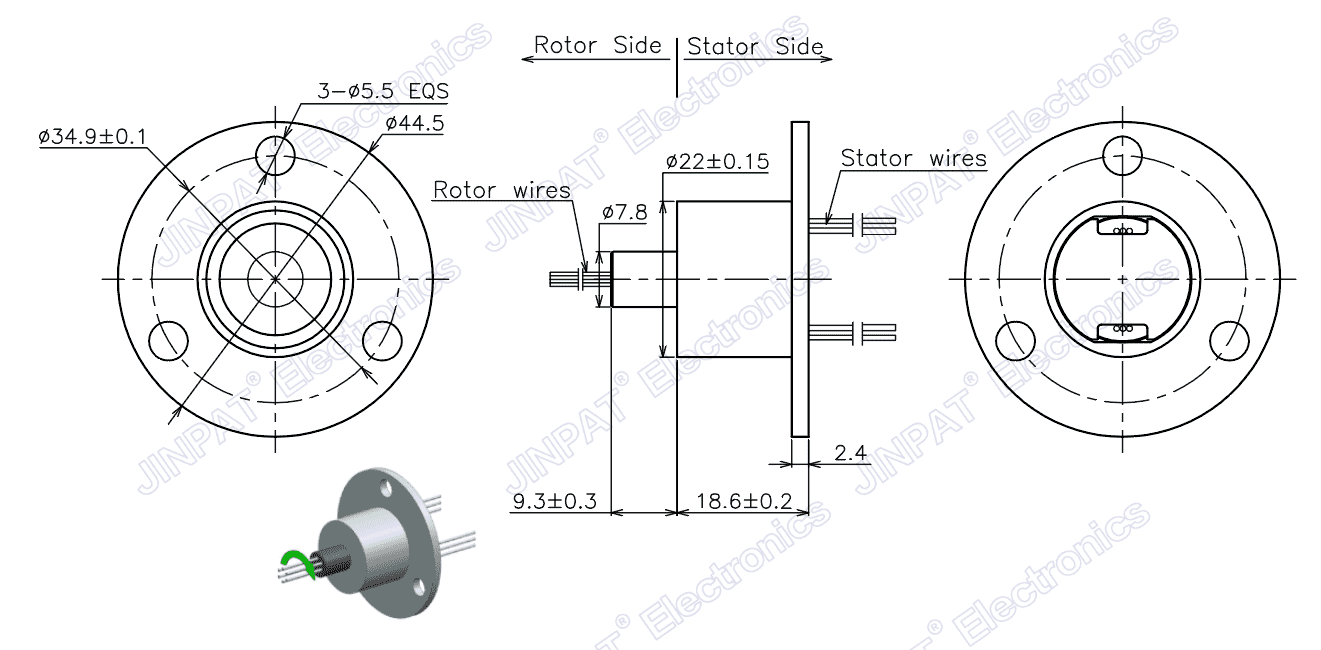

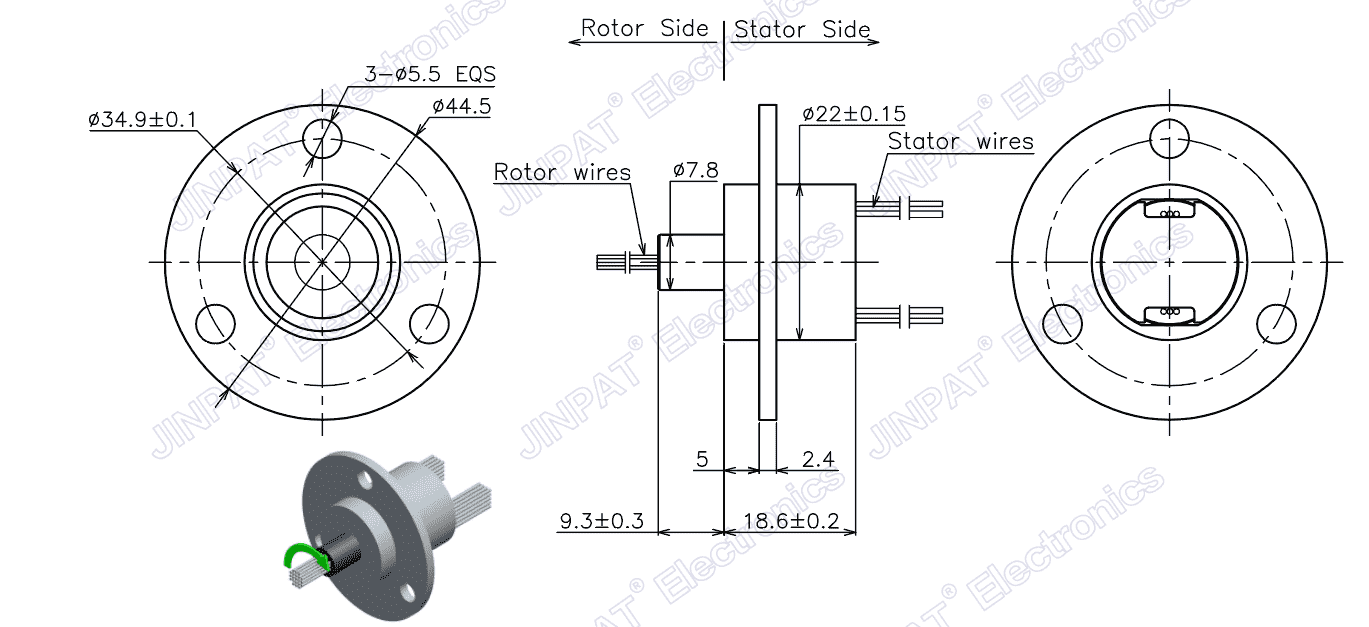

LPC-06A  slipring.jpg

Electronic & Electric

Mechanical

Circuits

Total

6 CKT

Working Speed


0~300rpm

Detail

6x2A

Contact Material

Gold to Gold

Rating Voltage

0~240V AC/DC

Housing Material

Engineering plastics

Dielectric Strength

≥500VAC@50Hz(P) ≥100VAC@50Hz(S)

Lead Wire Length

Stator:250±5mm   Rotor:250±5mm

Insulation Resistance

≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S)

Dynamic Resistance

Fluctuation Value

≤35mΩ

Environment

Remarks

Working Temperature

-20°C~+60°C

Application

/

Working Humidity

≤60%RH

Other

/

IP

IP40

Note: "P" stands for power, "S" stands for signal.
