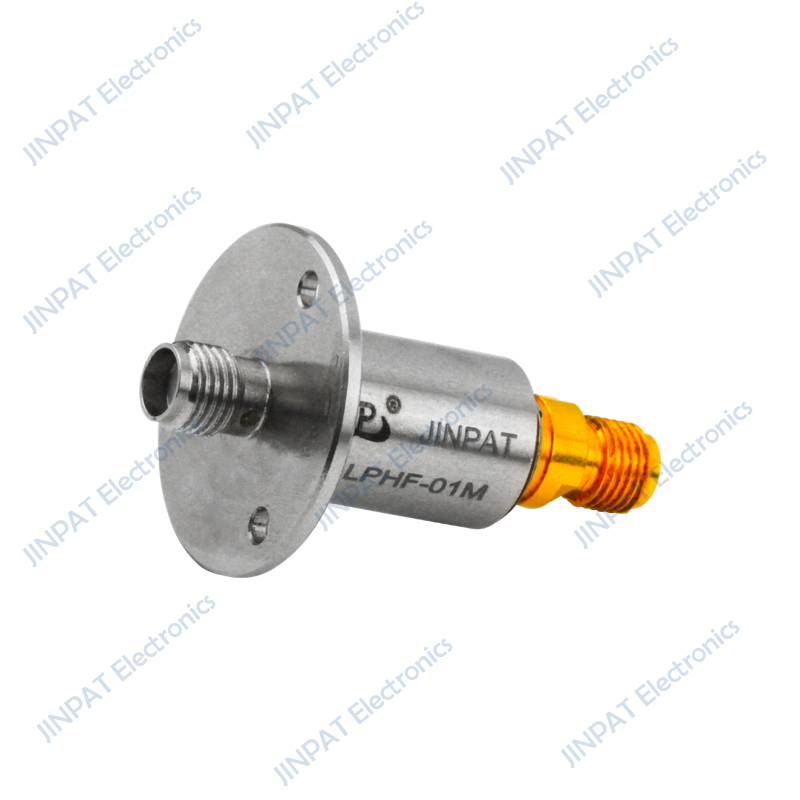

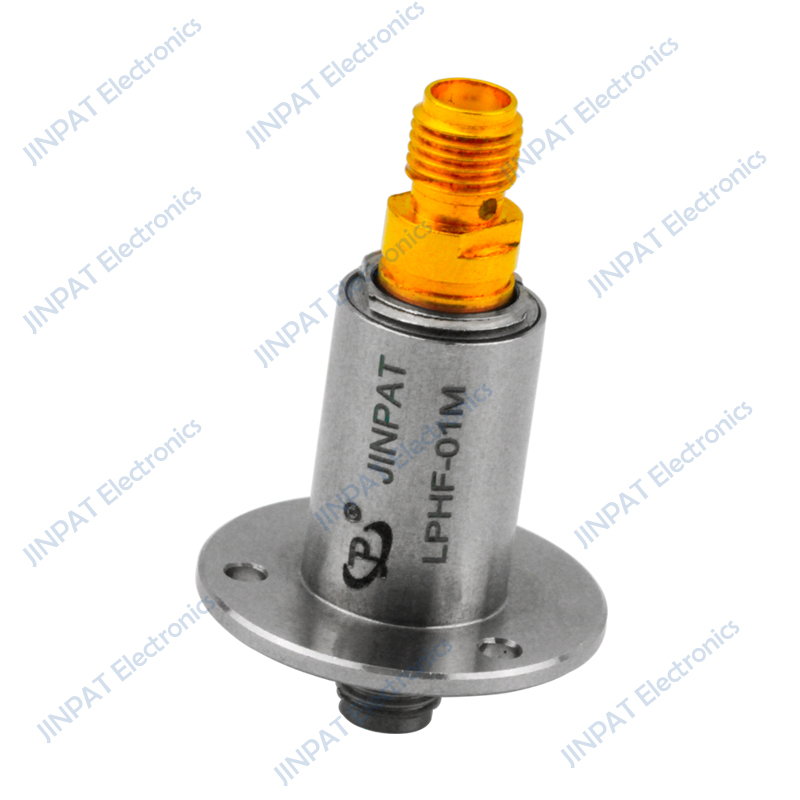

High frequency rotary joints include coaxial rotary joints, waveguide rotary joint, coaxial waveguide rotary joints. They are also known as high frequency slip rings and radio frequency slip rings. High frequency rotary joints are specially designed to transmit high speed serial digital signals like high definition signals, RF signals and microwave signals. The slip ring series support single channel and multi channels transmission of high frequency signals. There are also hybrid solutions that support hybrid transmission of high frequency signals with control signals, communication signals, power signals and fluid medium.
| Specifications | |||
| Interface Tpe | SMA-F(50Ω) | Axial Load On Interface,Max | ±2N |
Frequenc Range | DC-18GHz | Radial Load On Interface,Max. | ±2N |
| VSWR,Max. | 1.35@DC-10GHz 1.5@10-18GHz | Bod Material | Stainless Steel |
| VSWR WOW | 0.05 | Insulator Material | PTFE |
| Insertion Loss,Max. | 0.3dB@DC-10GHz 0.4dB@10-18GHz | Marking | Adhesive Label |
| Insertion Loss WOW | 0.05dB | Weight,approx | 21.5g |
| Peak Power,Max. | 3KW | IP Protection Level | IP40 |
| Average Power,Max. | 200W@1GHz 30W@18GHz | Operation Temperature | -45~+80°C |
| Phase WOW,Max | 1° | Storage Temperature | -55~+85°C |
| Rotating Speed,Max. | 300rpm | Humidit(Operation) | 95％ |
| Life Time,Min | 10 Million Revolutions | Humidit(St) | 95％ |
| Starting Torque | 2Ncm Max | Continuous Rotational Torque | 2Ncm Max |
